Impulse Sealing Machine
450 mm Impulse Sealing For PE And PP Packaging
What This Machine Does
The AQ-450 Impulse Sealing Machine seals polyethylene, polypropylene and similar packaging films with a maximum sealing width of 450 mm. Seal length is adjustable so one machine covers different package sizes, bag height up to 500-550 mm is accommodated, and the working height is about 750 mm so operators can work standing. It runs on 220 V at 1.5 kW and normally ships about 15 days after order confirmation.
- PE film
- PP film
- Laminated poly bags
Why Buyers Choose This Model
Impulse sealing heats only during the cycle, so the machine is cool to work beside and cheap to run
Adjustable seal length covers several bag sizes without changing the machine
450 mm sealing width handles most non woven product bags and outer packs
15-day delivery makes it easy to add sealing capacity quickly
Factories Running This Machine
- Non woven converters packing their own output
- Small and medium packing operations
- Exporters sealing polybags before cartoning
- Factories needing an extra sealing station at peak
What It Removes From Your Line
- Weak or burnt seals from constant-heat sealers
- One fixed seal length that does not suit all pack sizes
- High energy use on continuously heated machines
- Long lead times when sealing capacity has to be added quickly
Where This Machine Is Used
- Sealing PE bags of folded non woven products
- Outer packing for wipes, towels and pads
- Sample and short-run packaging
- Secondary sealing at the end of a converting line
How The Machine Is Built
- Maximum sealing width 450 mm
- Adjustable seal length
- Maximum bag height 500-550 mm
- Machine height from the ground about 750 mm
- Power 1.5 kW at 220 V
- Suitable for polyethylene, polypropylene and similar films, HS code 8477800000
| Machine Model | AQ-450 |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 15 days |
| Customization | Yes (as your requests) |
| HS Code | 8477800000 |
Production Sequence On This Line
Bag positioning
Impulse heating
Cooling
Release
What We Check Before Shipment
- Seal strength tested on your film thickness
- Heating element and timer calibration checked before shipment
- Seal appearance inspected across the full 450 mm width
- Electrical safety test before crating
What We Build To Your Specification
- Sealing width options on request
- Foot pedal or bench configuration
- Timer range set for your film
- Voltage set to your local supply
Machine And Product Detail

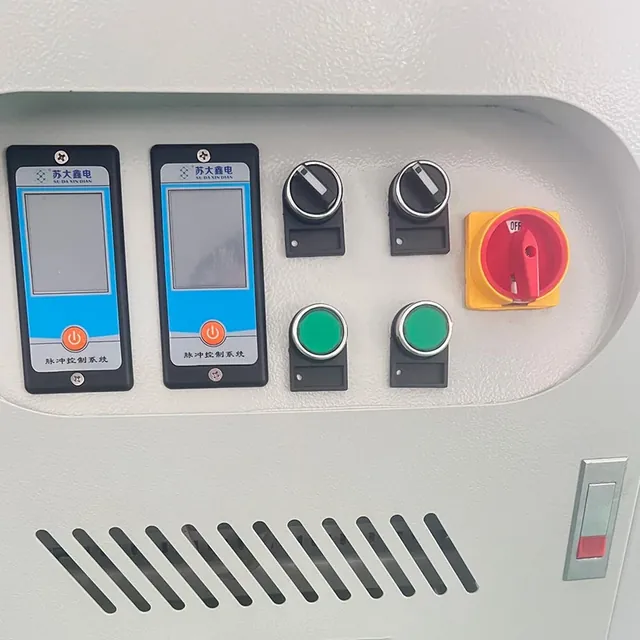

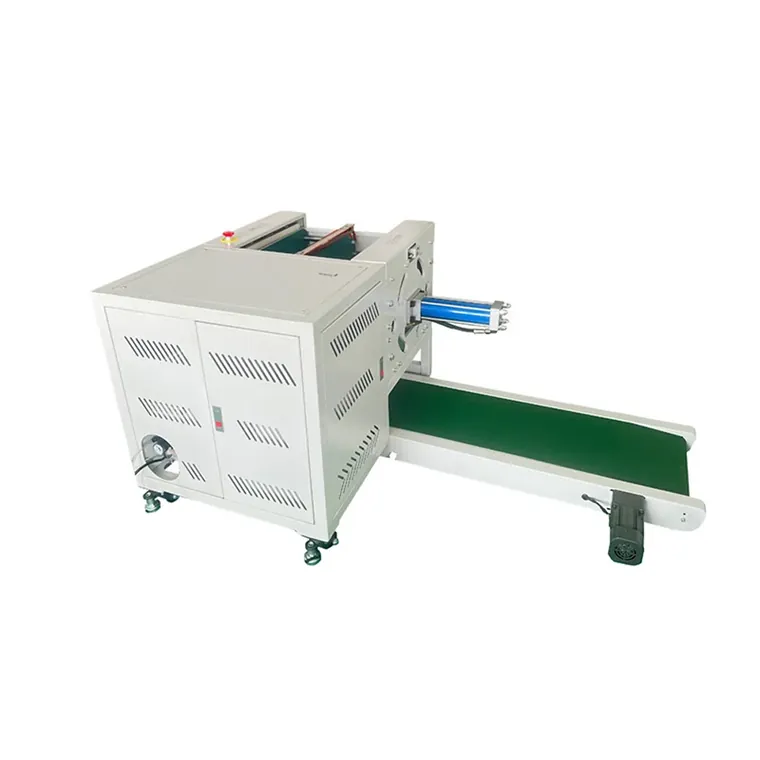

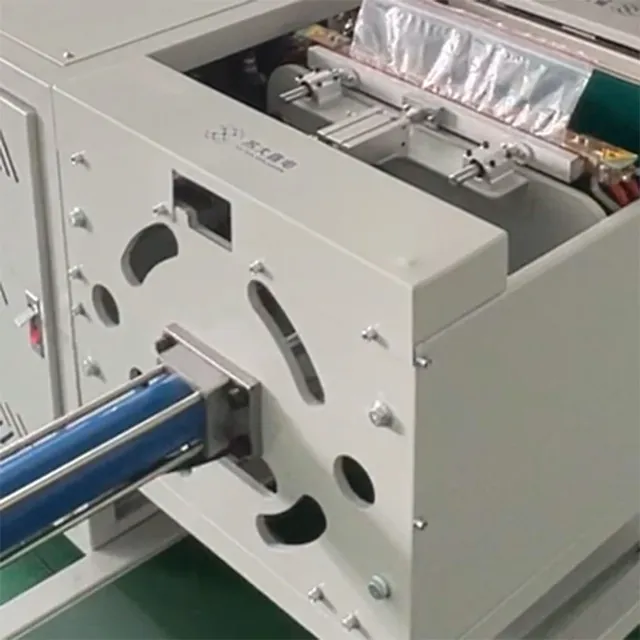

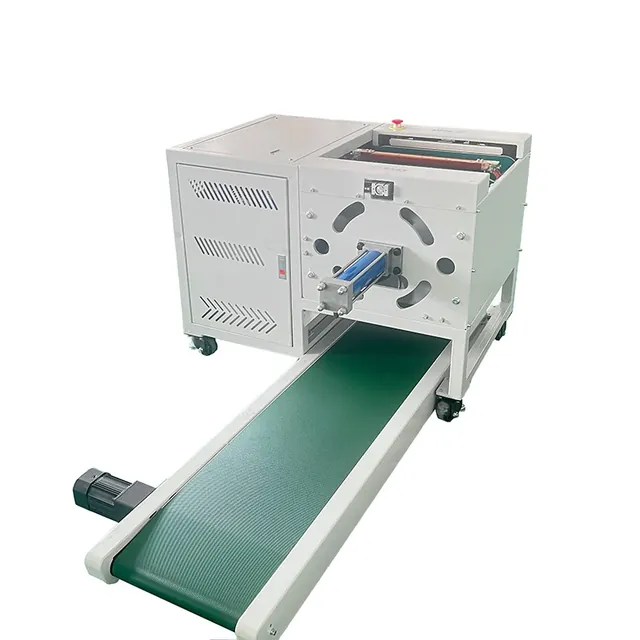

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Wet wipe packaging machine
The wipe packaging machine forms, fills and seals automatically in line. This is a standalone sealer for bags you fill by hand.
Compared With Constant heat sealers
A constant heat bar stays hot all shift. Impulse sealing heats only during the cycle, which saves energy and reduces operator burn risk.
Setting The Machine For A Production Run
Set the sealing time for your film thickness
Position the bag mouth flat across the sealing bar
Press and hold until the cooling cycle completes
Check the first seals of each new film batch
Further Reading
Compressed Towel Production Guide From Roll To Tablet
How compressed towel tablets are produced, what decides tablet quality, and the difference between round and s...
Installation Power And Shipping Checklist For Imported Converting Machines
What to confirm before a machine leaves China: voltage, compressed air, floor space, core size, documentation ...
Other Machines In This Family
Wet Wipe Packaging Machine
180 To 220 Bags Per Minute With Omron Photoelectric Tracking
Model AQ-100a
4-Side Wet Wipes Packaging Machine
Four Side Sealed Wet Wipe Packs Up To 32 Layers
Model AQ-350
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Impulse Sealing Machine FAQ
What is the maximum sealing width?
450 mm. The seal length is adjustable so different package sizes can be sealed on the same machine.
Which materials can it seal?
Polyethylene, polypropylene and similar packaging films.
What bag height does it take?
Bags up to about 500-550 mm high, with a working height from the ground of about 750 mm.
How quickly can it be delivered?
About 15 days after order confirmation, which is the shortest lead time in our range.
Get A Quotation For The AQ-450
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Impulse Sealing Machine specification, price and delivery.
