HomeMetal BallsHollow Steel BallsHollow Stainless Steel Balls 6mm to 30mm
Hollow Stainless Steel Balls 6mm to 30mm

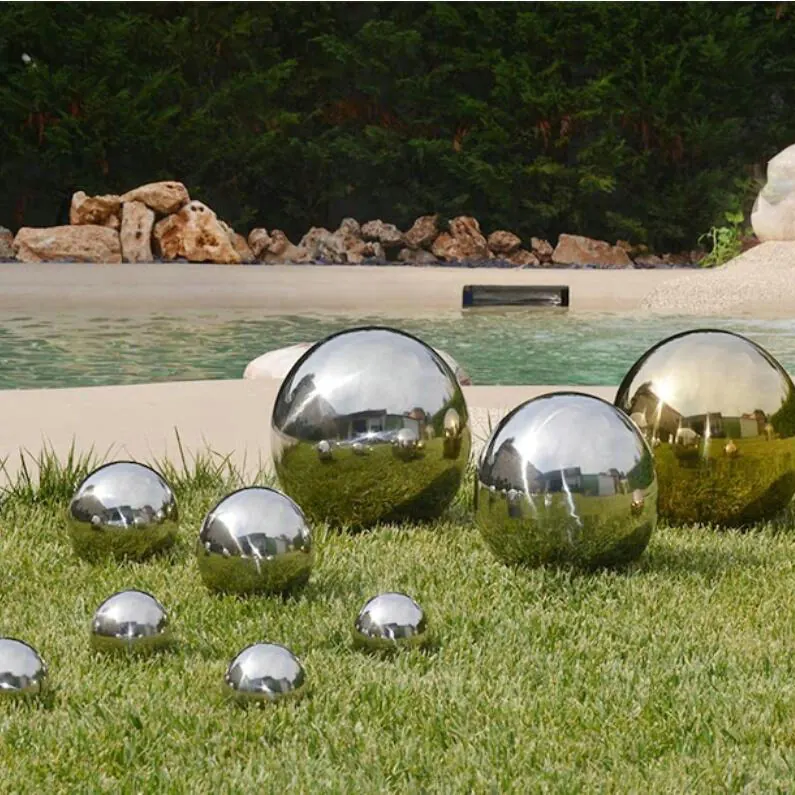

Hollow Stainless Steel Balls 6mm to 30mm view 1Hollow Stainless Steel Balls 6mm to 30mm view 2Hollow Stainless Steel Balls 6mm to 30mm view 3

Hollow Stainless Steel Balls 6mm to 30mm

Hollow Stainless Steel Balls.

Material
304 stainless steel, 316 stainless steel
Diameter
10mm, 15mm, 19mm, 25mm, 30mm, 6mm, 8mm
Thickness
0.6mm, 0.8mm, 1mm
Finish
Mirror Polished, Raw Finished
Weight
N/A
Minimum order
1 piece on this category unless a small-size minimum applies
Lead time
1 to 3 days from stock, 7 to 15 days for scheduled production
Request A Quote Request A Sample
Upload Drawing Email Us

Product Overview

We supply hollow steel balls in Q235 carbon steel and AISI 201, 304 and 316 stainless steel. Three forming routes are available and each one gives a different seam, thickness range and cost, so the right choice depends on the diameter and on how the sphere will be seen.

Hollow steel balls have many functions across decoration and architecture: industrial floating balls, indoor and garden decorative elements, handrail finials, and mirror or matt candy colour gazing balls after vacuum metalizing or electroplating.

Key Benefits

  • Durable AISI304/316 stainless steel alloy Stamping Press Made with mirror polished finished.
  • Metric and Unified Thread are both available.
  • MOQ:AISI316 required-1000PCS. AISI304 large stock.
  • Delivery Time:7days for AISI316 steel balls Scheduled production .2days for AISI304 collecting from Stock.

Application Scenarios

  • Lampshades and pendant lighting
  • Handrail and stair finials
  • Floating level balls
  • Christmas and retail display
  • Garden gazing balls

Who It Is For

  • Lighting and furniture makers buying spheres as components
  • Balustrade and handrail fabricators needing finials with a welded pedestal
  • Water treatment and process plants using floating balls
  • Display and visual merchandising studios

Problems It Solves

  • A visible equator seam ruins a mirror finish. Stamping and water pressuring both leave an invisible seam after grinding.
  • Hanging a sphere needs a thread, not a glued fitting. We tap metric and unified threads directly into the wall.
  • Small custom diameters normally need tooling. Five standard press hole moulds cover the common sizes without a mould fee.

Technical Features

  • Wall thickness available: 0.6mm, 0.8mm, 1mm
  • Diameter: 10mm, 15mm, 19mm, 25mm, 30mm, 6mm, 8mm
  • Surface finish options: Mirror Polished, Raw Finished
  • Alloy: 304 stainless steel, 316 stainless steel
  • Drilling and tapping in metric and unified threads on request
  • Base plates, pedestal tubes and hanging fittings fabricated with the piece
  • Sheet development calculated in house, so non-standard sizes are possible above ∅200mm

Specifications

Weight
N/A
Material
304 stainless steel, 316 stainless steel
Diameter (Mm)
10mm, 15mm, 19mm, 25mm, 30mm, 6mm, 8mm
Thickness
0.6mm, 0.8mm, 1mm
Finish
Mirror Polished, Raw Finished

Category range: Material Q235 carbon steel, AISI 201 / 304 / 316 · Size range ∅6mm to ∅3500mm · Thickness 0.6mm to 16mm

Materials

We form spheres and hemispheres in AISI 304, AISI 316 and AISI 316L stainless steel, Q235 carbon steel, H62 brass alloy and A6061 aluminium alloy. The alloy decides corrosion resistance, weight and how the surface takes a polish.

For this product the standard specification is 304 stainless steel, 316 stainless steel. Tell us the site conditions and we will confirm whether a different grade is worth the cost.

Read the material guide

Manufacturing Process

Forming happens by stamping press, water pressuring, spinning or hand assembling. Two halves are joined at the equator, the weld is ground, and the surface is finished last, after any cutting or drilling has been done.

How a metal sphere is made Sheet is cut into blanks, formed into two hemispheres by stamping press, spinning or water pressuring, welded at the equator, ground, then mirror polished into a finished sphere. Sheet blanksForming WeldingGrindingMirror polishing 304, 316, Q235, H62, A6061Press, spin or water pressure 45° groove closes the sphereWelds and burrs removed Mirror, brushed or coloured

Read the forming process guide

Quality Control

  1. Incoming material

    Alloy and sheet thickness are checked against the order before any blank is cut.

  2. Forming check

    Diameter and wall are measured after pressing, spinning or water pressuring.

  3. Weld and grind

    The equator weld is inspected, then welds and burrs are ground off before finishing.

  4. Surface inspection

    Every piece is inspected for scratches, dents and polish consistency under light.

  5. Packing

    Protective packing is built around the diameter and weight, and photographs are sent before dispatch.

Customisation Options

  • Diameter and wall thickness to your drawing, with no mould limit above ∅200mm
  • Metric and unified threaded holes, drilled apertures and perforated patterns
  • Welded base tubes, base plates, internal ribs and pedestals
  • Mirror, brushed, sandblasted, etched, electroplated, PVD colour or spray painted finishes
  • Logos, lettering and world maps by sandblasting, etching, laser cutting or plasma cutting
  • LED kits fitted inside the sphere
  • Segmentation into quarters or eighths for sizes above container limits
Get A Custom Solution CAD on request

Comparison With Other Products

ProductMaterialDiameterThickness
Hollow Stainless Steel Balls 6mm to 30mm304 stainless steel, 316 stainless steel10mm, 15mm, 19mm, 25mm, 30mm, 6mm, 8mm0.6mm, 0.8mm, 1mm
20mm 50mm 80mm 100mm Hollow Mirror Stainless Steel Round Sphere—Made to order—
Brushed Stainless Steel Hollow Balls201 Stainless Steel, 304 stainless steel102mm0.8mm, 1mm

Comparing forming routes rather than products? The process guide sets out size, thickness, seam and mould limit for each.

Use Guide

  1. Confirm the diameter first

    Diameter drives the forming route, the wall thickness, the price and the freight mode. Settle it before anything else.

  2. Match the alloy to the site

    304 inland, 316 near salt water or pools, Q235 where a rust patina is wanted, brass or aluminium where weight or colour matters.

  3. Choose the finish last

    Finishing always happens after forming, welding, cutting and grinding, so pattern edges stay clean.

  4. Plan the fixing

    Tell us whether the piece is bolted, threaded, welded to a base tube or suspended, and we build the fitting into the part.

  5. Check the shipping limit

    ∅2200mm fits a container, ∅3500mm fits a flat rack, and larger spheres are segmented with bolted ribs.

FAQ

Which forming method should I ask for?
Under ∅700mm with a perfect mirror finish, ask for stamping press. Between ∅200mm and ∅3500mm at any custom size, ask for water pressuring. If you need heavy wall thickness up to 16mm, ask for spinning.
Do you charge a mould fee?
Standard sizes have no mould fee. A customised size under ∅250mm needs a new stamping press mould, charged at USD 1,000.
Can I order Hollow Stainless Steel Balls 6mm to 30mm in a different size?
Yes above ∅200mm, where there is no standard mould limit. Below ∅250mm a customised size needs a new stamping press mould, charged at USD 1,000.
How is it packed and shipped?
Protective packing is built around the diameter and weight. Samples and small orders go by DHL, UPS, FedEx or Aramex in 3 to 7 days. Larger orders go by air in around 3 days to your airport or by sea in 15 to 30 days.
What do you need from me to quote?
Diameter, wall thickness, material, finish, quantity and delivery country. A drawing or a photo helps and can be sent over WhatsApp.

Order Hollow Stainless Steel Balls 6mm to 30mm

Send the diameter, wall thickness, finish and quantity. Drawings are welcome and quotations usually come back the same working day.

Request A Quote Talk To An Engineer Email Us
