Dragon Fire Pit Sphere
Fly Dragon Fire Pit Sphere.
- Material
- Q235 Carbon Steel
- Diameter
- 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1700mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 3500mm, 500mm, 510mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm
- Thickness
- 5mm, 6mm
- Finish
- Heat Paint, Rust Patina
- Minimum order
- 1 piece on this category unless a small-size minimum applies
- Lead time
- 1 to 3 days from stock, 7 to 15 days for scheduled production
Product Overview

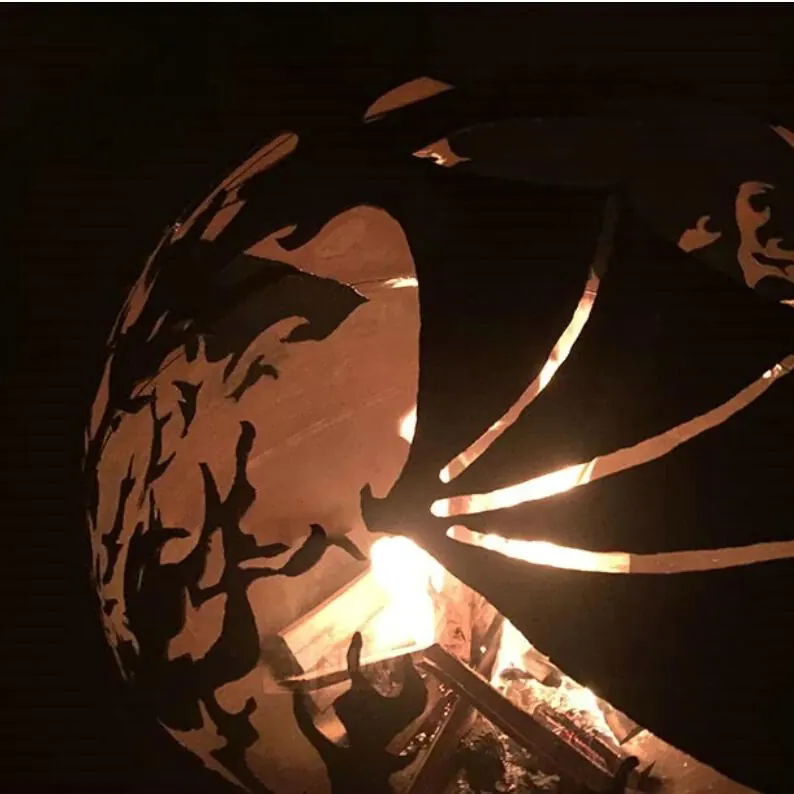

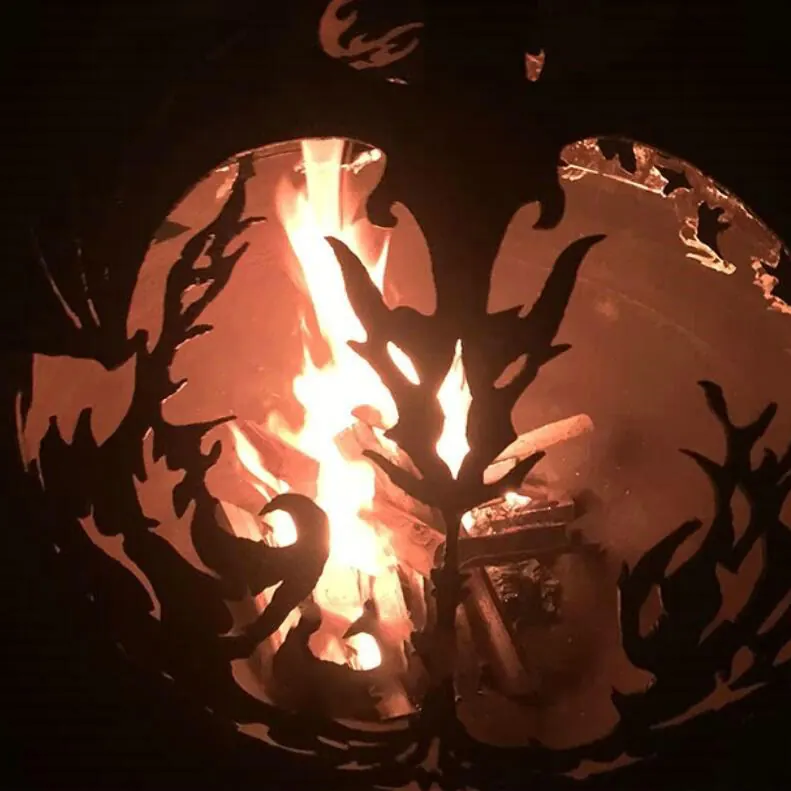

Every fire pit ball is designed and cut by hand, so each one is a unique piece. Traditional, western and fully customised styles are available.

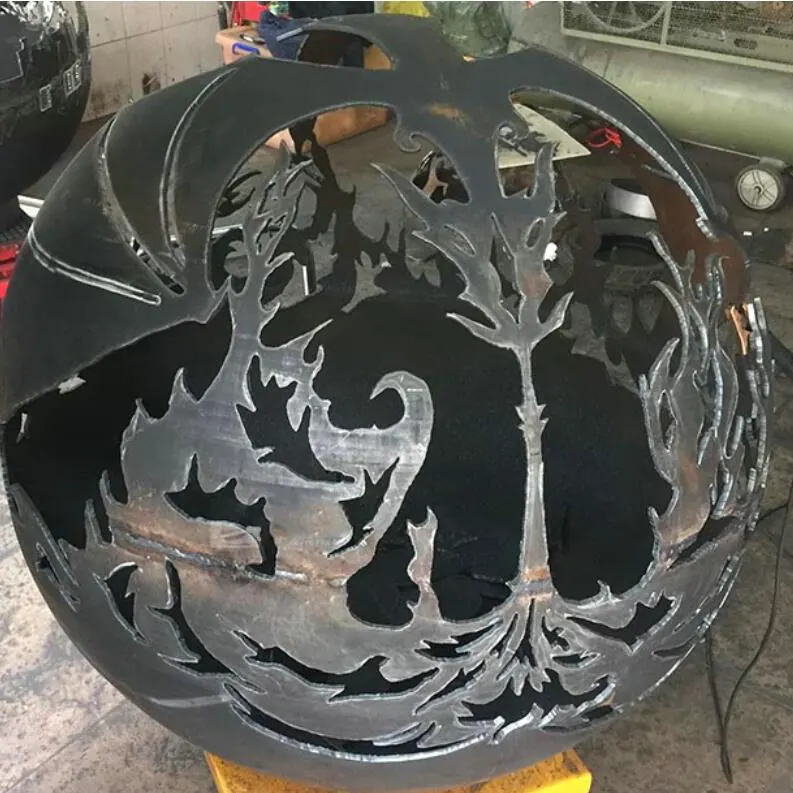

Each ball is assembled from two of our carbon steel hemispheres in 5mm or 6mm steel. We weld them together and clean the sphere of oil and debris. Our artist draws the scene on the ball by hand, we plasma cut it, then grind off the welds and burrs and apply heat resistant paint.
Standard designs follow one of our themes. Customised balls come out of a consultation with you. Each drawing develops at its own pace, and the cutting process itself adds to the drawing as the look of the individual ball emerges. The finished ball can be painted with heat proof paint or left to weather into a natural rust patina, which takes many decades to affect the steel and looks organic in an appealing industrial way.
Key Benefits
- 1000mm(42″)Inner Diameter.
- Q235 carbon steel alloy hand crafted with Heat Resistant Paint finished.
- MOQ:1PCS.
- Delivery Time:12days for Scheduled production.
Application Scenarios
- Gardens and outdoor living areas
- Hotels, lodges and resorts
- Restaurant terraces
- Gift and landmark commissions
Who It Is For
- Garden and outdoor living retailers
- Landscape contractors
- Metal artists who cut their own designs and buy hemispheres from us
- Private clients commissioning a one-off piece
Problems It Solves
- Fire pits fill with rain. A ∅50mm drain is cut into every ball.
- Thin steel warps in a fire. 5mm and 6mm hemispheres hold their shape.
- Off-the-shelf fire pits all look the same. Every scene here is drawn and cut by hand.
Technical Features
- Wall thickness available: 5mm, 6mm
- Diameter: 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1700mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 3500mm, 500mm, 510mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm
- Surface finish options: Heat Paint, Rust Patina
- Alloy: Q235 Carbon Steel
- Drilling and tapping in metric and unified threads on request
- Base plates, pedestal tubes and hanging fittings fabricated with the piece
- Sheet development calculated in house, so non-standard sizes are possible above ∅200mm
Specifications
- Diameter (Mm)
- 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1700mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 3500mm, 500mm, 510mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm
- Material
- Q235 Carbon Steel
- Thickness
- 5mm, 6mm
- Finish
- Heat Paint, Rust Patina
Category range: Size range ∅500mm to ∅3500mm (∅20 inch to ∅11½ ft) · Hemisphere thickness 5mm or 6mm carbon steel · Plasma cutting capacity 4mm to 16mm (9GA to 5/8 inch)
Materials
We form spheres and hemispheres in AISI 304, AISI 316 and AISI 316L stainless steel, Q235 carbon steel, H62 brass alloy and A6061 aluminium alloy. The alloy decides corrosion resistance, weight and how the surface takes a polish.
For this product the standard specification is Q235 Carbon Steel. Tell us the site conditions and we will confirm whether a different grade is worth the cost.
Manufacturing Process
Forming happens by stamping press, water pressuring, spinning or hand assembling. Two halves are joined at the equator, the weld is ground, and the surface is finished last, after any cutting or drilling has been done.
Quality Control
Incoming material
Alloy and sheet thickness are checked against the order before any blank is cut.
Forming check
Diameter and wall are measured after pressing, spinning or water pressuring.
Weld and grind
The equator weld is inspected, then welds and burrs are ground off before finishing.
Surface inspection
Every piece is inspected for scratches, dents and polish consistency under light.
Packing
Protective packing is built around the diameter and weight, and photographs are sent before dispatch.
Customisation Options
- Diameter and wall thickness to your drawing, with no mould limit above ∅200mm
- Metric and unified threaded holes, drilled apertures and perforated patterns
- Welded base tubes, base plates, internal ribs and pedestals
- Mirror, brushed, sandblasted, etched, electroplated, PVD colour or spray painted finishes
- Logos, lettering and world maps by sandblasting, etching, laser cutting or plasma cutting
- LED kits fitted inside the sphere
- Segmentation into quarters or eighths for sizes above container limits
Comparison With Other Products
| Product | Material | Diameter | Thickness |
|---|---|---|---|
| Dragon Fire Pit Sphere | Q235 Carbon Steel | 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1700mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 3500mm, 500mm, 510mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm | 5mm, 6mm |
| Africa Fire Pit Ball | Q235 Carbon Steel | 900mm | 5mm, 6mm |
| Sunset Fire Pit Balls | Q235 Carbon Steel | 900mm | 5mm, 6mm |
Comparing forming routes rather than products? The process guide sets out size, thickness, seam and mould limit for each.
Use Guide
Confirm the diameter first
Diameter drives the forming route, the wall thickness, the price and the freight mode. Settle it before anything else.
Match the alloy to the site
304 inland, 316 near salt water or pools, Q235 where a rust patina is wanted, brass or aluminium where weight or colour matters.
Choose the finish last
Finishing always happens after forming, welding, cutting and grinding, so pattern edges stay clean.
Plan the fixing
Tell us whether the piece is bolted, threaded, welded to a base tube or suspended, and we build the fitting into the part.
Check the shipping limit
∅2200mm fits a container, ∅3500mm fits a flat rack, and larger spheres are segmented with bolted ribs.
FAQ
Can I buy just the hemispheres and cut the design myself?
Painted or rusted?
Can I order Dragon Fire Pit Sphere in a different size?
How is it packed and shipped?
What do you need from me to quote?
Related Products
Order Dragon Fire Pit Sphere
Send the diameter, wall thickness, finish and quantity. Drawings are welcome and quotations usually come back the same working day.
