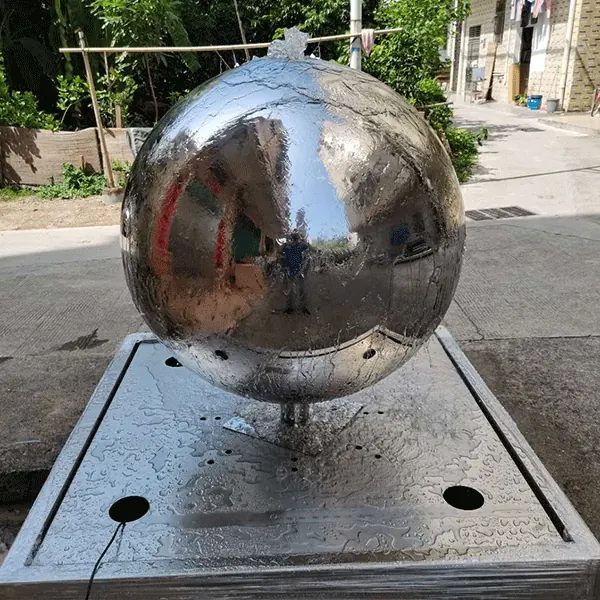

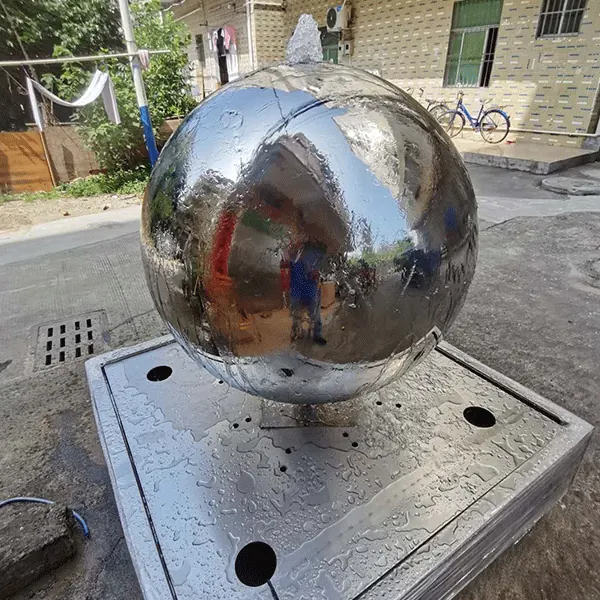

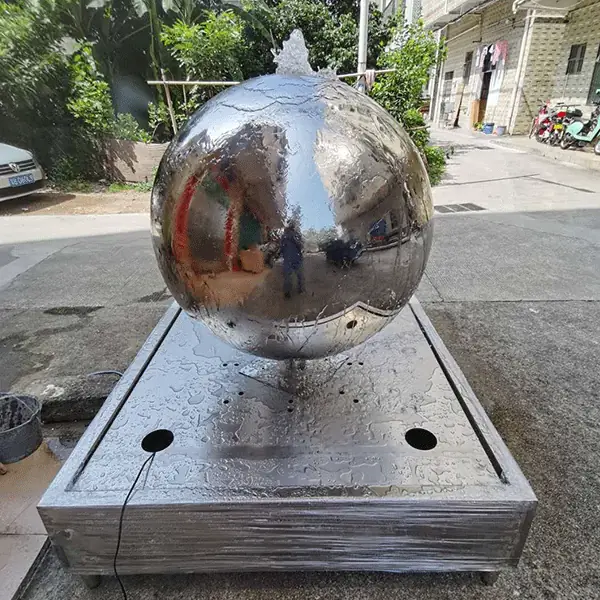

1000mm Hollow Ball Fountain Stainless Steel Sphere Water Feature
Maoping Stainless steel sphere metal ball water fountain has become an indispensable part in modern design. Our Mirror polishing stainless steel sphere water feature is made of high quality polished stainless steel, which makes it earsier to maintain.Durable AISI201/304/316 stainless steel alloy Stamping Press Made with shiny finished
- Material
- AISI 304 / AISI 316 stainless steel
- Minimum order
- 1 piece on this category unless a small-size minimum applies
- Lead time
- 1 to 3 days from stock, 7 to 15 days for scheduled production
Product Overview
Popular as it is, Stainless Steel Spheres Water Feature is a water feature or fountain where the stainless steel ball made of #201 #304 or #316 stainless steel sits in a pedestal tube while the water flow over the reflective mirror surface of the stainless steel sphere. These Stainless Steel Sphere Water Features are ideal for both public and private space such as shopping centers, lobbies,city squares, science museums,shopping centers, lobbies,city squares and even gardens.
Production Processes:
The Stainless Steel Ball Water Feature is made by water pressured to a raw finished steel balls with durable AISI304 stainless steel alloy.Then making a funnel shaped hole on the top and drilling a bottom hole which for welding the water flow tube inside the steel balls. finally grind off welding seams and mirror polishing it to a silver ball water feature.
Key Benefits
- Material:
- AISI/SUS/SS 201/304/316 Stainless Steel
- Diameter:
- 25mm-5000mm or as customized
- Thickness:
- 0.8mm-2mm or as customized
Application Scenarios
- City squares and public plazas
- Shopping centres and lobbies
- Science museums and tourist destinations
- Gardens and courtyards
Who It Is For
- Landscape architects designing plaza and garden water features
- Shopping centre and hotel developers
- Science museums and visitor attractions
- Private garden clients through their contractor
Problems It Solves
- Water running down one face instead of sheeting evenly. The funnel top fixes the flow distribution.
- Mounting a heavy wet sphere. A square base plate and extended pipe are built into the assembly.
- Water marks on a mirror finish. A brushed surface hides mineral deposits and adds texture.
Technical Features
- Drilling and tapping in metric and unified threads on request
- Base plates, pedestal tubes and hanging fittings fabricated with the piece
- Sheet development calculated in house, so non-standard sizes are possible above ∅200mm
Specifications
- Material
- AISI 304 / AISI 316 stainless steel
- Construction
- Internal pipe with funnel top, bottom outlet, square base plate
- Common finish
- Mirror polished or brushed
- Surface options
- Sandblasted, coloured or etched patterns
- Options
- Rotating system, custom pipe lengths, custom base plate size
Category range: Material AISI 304 / AISI 316 stainless steel · Construction Internal pipe with funnel top, bottom outlet, square base plate · Common finish Mirror polished or brushed
Materials
We form spheres and hemispheres in AISI 304, AISI 316 and AISI 316L stainless steel, Q235 carbon steel, H62 brass alloy and A6061 aluminium alloy. The alloy decides corrosion resistance, weight and how the surface takes a polish.
For this product the standard specification is AISI 304 / AISI 316 stainless steel. Tell us the site conditions and we will confirm whether a different grade is worth the cost.
Manufacturing Process
Forming happens by stamping press, water pressuring, spinning or hand assembling. Two halves are joined at the equator, the weld is ground, and the surface is finished last, after any cutting or drilling has been done.
Quality Control
Incoming material
Alloy and sheet thickness are checked against the order before any blank is cut.
Forming check
Diameter and wall are measured after pressing, spinning or water pressuring.
Weld and grind
The equator weld is inspected, then welds and burrs are ground off before finishing.
Surface inspection
Every piece is inspected for scratches, dents and polish consistency under light.
Packing
Protective packing is built around the diameter and weight, and photographs are sent before dispatch.
Customisation Options
- Diameter and wall thickness to your drawing, with no mould limit above ∅200mm
- Metric and unified threaded holes, drilled apertures and perforated patterns
- Welded base tubes, base plates, internal ribs and pedestals
- Mirror, brushed, sandblasted, etched, electroplated, PVD colour or spray painted finishes
- Logos, lettering and world maps by sandblasting, etching, laser cutting or plasma cutting
- LED kits fitted inside the sphere
- Segmentation into quarters or eighths for sizes above container limits
Comparison With Other Products
| Product | Material | Diameter | Thickness |
|---|---|---|---|
| 1000mm Hollow Ball Fountain Stainless Steel Sphere Water Feature | — | Made to order | — |
| 150mm-800mm Stainless Steel Ball Water Fountain | — | Made to order | — |
| 600MM Steel Sphere Water Fountain World Map | 304 stainless steel, 316 stainless steel | 600mm | 1mm |
Comparing forming routes rather than products? The process guide sets out size, thickness, seam and mould limit for each.
Use Guide
Confirm the diameter first
Diameter drives the forming route, the wall thickness, the price and the freight mode. Settle it before anything else.
Match the alloy to the site
304 inland, 316 near salt water or pools, Q235 where a rust patina is wanted, brass or aluminium where weight or colour matters.
Choose the finish last
Finishing always happens after forming, welding, cutting and grinding, so pattern edges stay clean.
Plan the fixing
Tell us whether the piece is bolted, threaded, welded to a base tube or suspended, and we build the fitting into the part.
Check the shipping limit
∅2200mm fits a container, ∅3500mm fits a flat rack, and larger spheres are segmented with bolted ribs.
FAQ
Do you supply the pump?
Mirror or brushed for a fountain?
Can I order 1000mm Hollow Ball Fountain Stainless Steel Sphere Water Feature in a different size?
How is it packed and shipped?
What do you need from me to quote?
Related Products
150mm-800mm Stainless Steel Ball Water Fountain
Made to order
600MM Steel Sphere Water Fountain World Map
600mm
800mm Silver Ball Water Feature
800mm
Brushed Stainless Steel Sphere Water Feature
Made to orderRelated Cases
Related articles
Industry applications
Order 1000mm Hollow Ball Fountain Stainless Steel Sphere Water Feature
Send the diameter, wall thickness, finish and quantity. Drawings are welcome and quotations usually come back the same working day.
