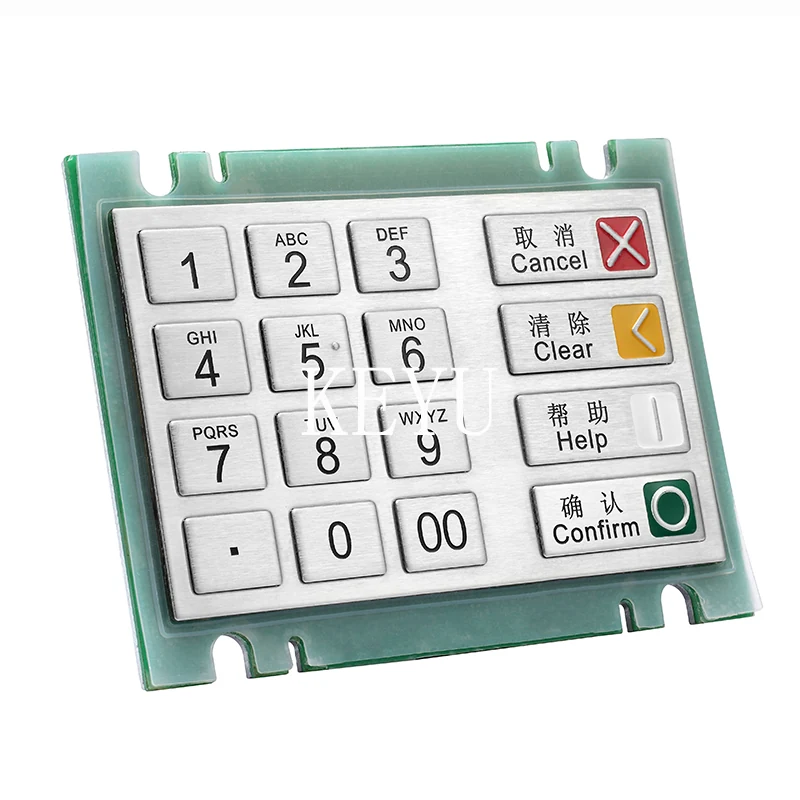

KY3689 PCI Certified Encrypting Metal Pin Pad
KY3689 is an encrypting pin pad for unattended payment and identity terminals, with DES and AES support and PCI 1.3 certification.
Product Overview

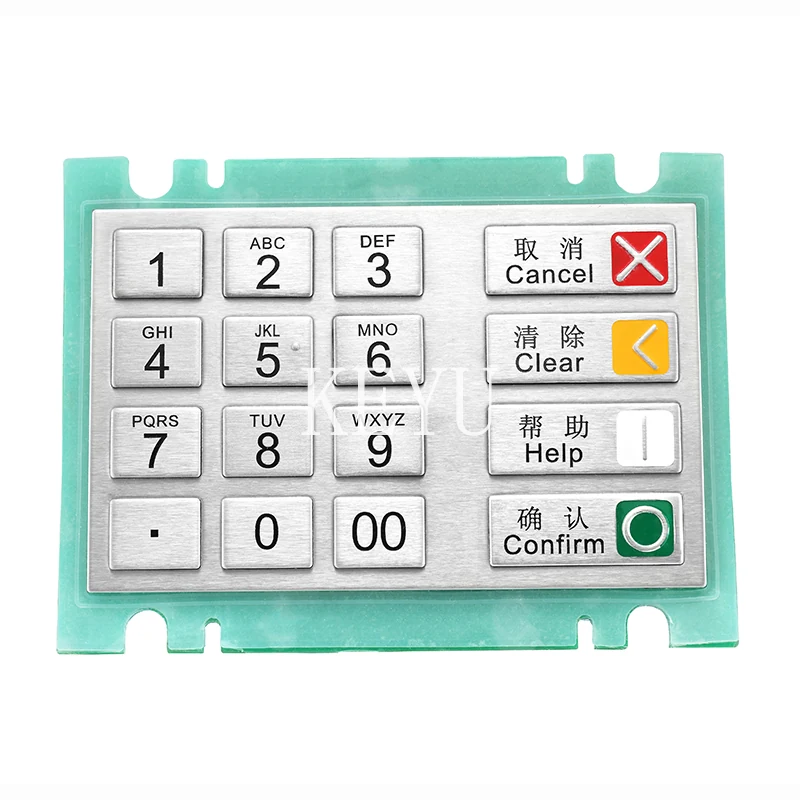

KY3689 is an encrypting pin pad for unattended payment and identity terminals, with DES and AES support and PCI 1.3 certification. The SUS304 panel carries IK07 impact and IP65 water and dust ratings, and Braille or graphic keycaps are available for accessibility requirements. It connects over RS232 to a terminal controller.
- Passed PCI 1.3 certification, so acquirer approval work starts from a certified device
- DES and AES support covers common acquirer key schemes
- IP65 waterproof and dustproof rating suits outdoor and forecourt installations
- IK07 explosion proof rating resists deliberate impact at unattended sites
- Braille or graphic keycaps are optional for accessibility legislation
- ESD 4K protection guards against static discharge in dry public areas
Application Scenarios
- Unattended payment kiosks and forecourt terminals
- ATM and cash recycler pin entry positions
- Ticket vending machines taking card payment
- Access and identity terminals requiring encrypted entry
- Outdoor parking payment stations
Who It Is For
- Payment terminal and ATM manufacturers
- Kiosk integrators deploying card payment
- Transport ticketing system suppliers
- Banking equipment service providers
Problems It Solves
- Uncertified pin entry hardware blocks acquirer approval
- Outdoor pin pads fail when water and dust enter the key field
- Public terminals are attacked physically at the keypad
- Accessibility rules require tactile identification of keys
Technical Features
- Passed PCI 1.3 certification with DES and AES support
- Complies with ISO9564 and ANSI X9.24 safety standards
- Waterproof and dustproof IP65 with explosion proof IK07
- ESD 4K protection
- Key size 18.5*23.5*2.0 / 18.5*50*2.0mm with key trip 0.45mm
- Key strength 3N ± 10% and durability >2 million
- RS232 product interface
Specifications
| Panel material | SUS304 brushed stainless steel |
|---|---|
| Certification | PCI 1.3 |
| Algorithms | DES, AES |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Interface | RS232 |
| Key size | 18.5*23.5*2.0 / 18.5*50*2.0mm |
| Key trip | 0.45mm |
| Key strength | 3N ± 10% |
| ESD | 4K |
| Protection | IP65 waterproof and dustproof, IK07 explosion proof |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel keycaps
- Tamper-responsive secure key module
Manufacturing Process
- Panel forming and key aperture punching to secure-module tolerances
- Brushing of the stainless steel face
- Etching of key content including optional Braille or graphic caps
- Secure module assembly and key injection preparation
- IP65 sealing and impact reinforcement
- Encryption and interface validation
Quality Control
- Security functions tested against the PCI 1.3 certified configuration
- IP65 sealing verified on the assembled panel
- Key strength sampled against 3N ± 10%
- ESD immunity checked to the 4K rating
- RS232 communication verified with a host controller
Approvals And Test Documentation
- PCI 1.3
- ISO9564
- ANSI X9.24
- IP65
- IK07
Customisation Options
- Braille or graphic keycaps as an option
- Etched key screen content to customer artwork
- Panel outline and cutout to the terminal fascia
- Rear or front mounting arrangement
- OEM and ODM builds from KEYU in Shenzhen
How It Compares
| Non-certified metal keypad | PCI 1.3 certification and DES and AES support allow use where plain keypads cannot handle pin entry |
|---|---|
| Indoor pin pad | IP65 and IK07 ratings let the unit sit in weather-exposed unattended positions |
| Plastic pin pad | A SUS304 face resists the prying and impact that plastic fascias fail under |
Use Guide
- Plan RS232 wiring and key loading with your acquirer before installation
- Maintain the IP65 seal by using the supplied gasket and torque pattern
- Supply 5V±5% within the <150mA working current budget
- Operate within -10℃~45℃ and store within -30℃~85℃
- Specify Braille or graphic keycaps at order if accessibility rules apply
Questions About This Model
Is the pin pad certified?
It passed PCI 1.3 certification and complies with the ISO9564 and ANSI X9.24 safety standards.
Which encryption is supported?
DES and AES.
Is it suitable outdoors?
It is rated IP65 waterproof and dustproof and IK07 explosion proof.
Are accessible keycaps available?
Braille or graphic keycaps are offered as an option.
What interface does it use?
RS232.
What is the expected key life?
Durability is rated at more than 2 million operations.
Request A Quote On KY3689
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
