KY3088-LP Backlit Metal Numeric Keyboard

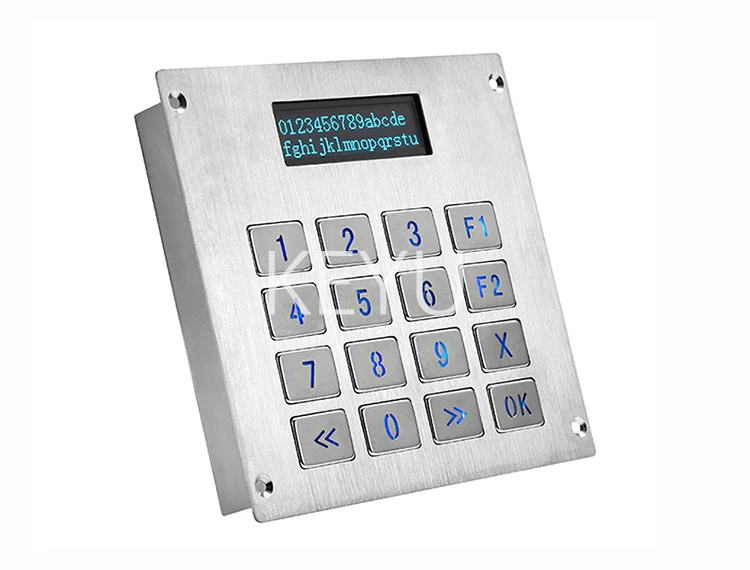

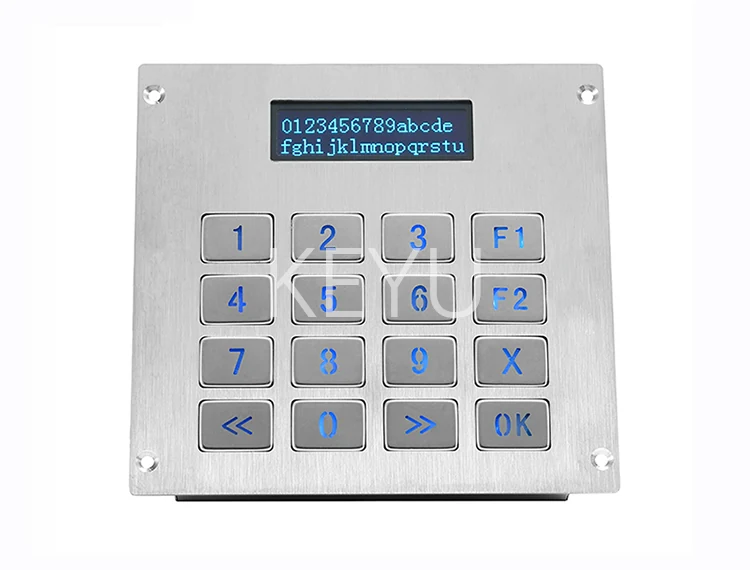

KY3088-LP is a backlit stainless steel numeric keyboard built into a 140*135 mm panel for self-service terminals that are used after dark.
Product Overview
KY3088-LP is a backlit stainless steel numeric keyboard built into a 140*135 mm panel for self-service terminals that are used after dark. LED illumination sits behind stainless steel buttons so the legends stay readable without a separate lamp in the enclosure. It suits integrators who need a sealed numeric entry block that survives washdown and rough public handling.
- LED backlighting keeps the numeric block usable on unlit forecourts and night shift lines
- IP65 rated front face lets operators hose or wipe the panel between shifts
- Square 140*135 mm footprint drops into compact terminal fascias without redesigning the door
- Durability of 2 Million actuations per key reduces field swap frequency
- One part number covers USB, PS/2 and RS232 so the same keypad fits several controller generations
- Key legends produced by laser or etching so they cannot rub off under gloved use
Application Scenarios
- Unattended payment kiosks that stay live overnight
- Vending machines placed in poorly lit lobbies and corridors
- Self-service terminals in transport and automotive service areas
- Pharmaceutical and medical dosing stations requiring wipe-down surfaces
- Oil and gas field enclosures where the operator wears gloves
- Agricultural weighing and dispensing points exposed to dust
Who It Is For
- Kiosk and terminal OEMs specifying a sealed numeric input block
- Industrial automation integrators replacing plastic keypads
- Medical equipment builders needing a cleanable entry surface
- Transport ticketing suppliers standardising on one keypad across fleets
Problems It Solves
- Plastic numeric pads crack and let liquid into the terminal after vandalism
- Printed legends wear away and force early panel replacement
- Operators mis-key values on unlit panels at night
- Mixed controller interfaces force buyers to stock several keypad variants
Technical Features
- Stainless steel button heads on a stainless steel front panel
- LED backlit legend area behind each key
- Power supply DC5V±5% with working current below 150mA
- Interface options of USB, PS/2 and RS232
- Operating temperature range of -10℃~55℃ and storage range of -30℃~85℃
- Rear mounting or front mounting to suit door thickness
- Driverless operation on Windows XP, Windows 7, Windows 8, Linux, Ubuntu and Android
Specifications
| Front Panel | 140*135 mm |
|---|---|
| Overall Dimension | 140*135 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2, RS232 |
| Durability | ≥ 2Million |
| Packing Dimension | 160*160*60mm |
| Mounting Way | Rear mounting or Front mounting |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Compatible Systems | Windows XP, Windows 7, Windows 8, Linux, Ubuntu, Android |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel key buttons
- Sealed LED backlight layer
Manufacturing Process
- Sheet metal blanking and forming of the 140*135 mm panel
- CNC machining of key apertures
- Laser or etching of key legends
- Backlight layer assembly and sealing to IP65
- Brushing and passivation of the stainless surface
- Interface board fitting and function test
Quality Control
- Keystroke endurance sampling against the 2 Million cycle rating
- Ingress test of the assembled front face
- Backlight uniformity check across all keys
- Current draw verified below 150mA at DC5V
- Interface handshake test on USB, PS/2 and RS232
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the 140*135 mm panel
- Laser or etched legends in the customer symbol set
- Choice of USB, PS/2 or RS232 cable termination
- Rear or front mounting hardware
- Customer logo added to the panel face
How It Compares
| Plastic membrane numeric pad | Stainless buttons resist prying and scraping that split a moulded pad |
|---|---|
| Non-backlit metal numeric keypad | LED illumination removes the need for an external lamp inside the fascia |
| Full size desktop keyboard | A 140*135 mm block frees panel area where only digits are entered |
Use Guide
- Confirm the cutout suits the 140*135 mm panel before ordering mounting hardware
- Choose rear mounting where the fascia must stay flush outside
- Supply DC5V±5% from the terminal harness and allow for under 150mA
- Keep ambient within -10℃~55℃ during operation
- Clean the stainless face with a damp cloth rather than abrasive pads
Related Products
Questions About This Model
Is the backlight always on?
The LED layer is powered with the keyboard from the same DC5V±5% supply, so it lights whenever the terminal is running.
Which interfaces can I order?
USB, PS/2 and RS232 are available, so the same panel suits older and current controllers.
How much current does it draw?
Working current is below 150mA at DC5V±5%.
Can the legends be changed?
Yes. Legends are produced by laser or etching and the layout is customised free of charge.
What protection rating does it carry?
The product is listed with ROHS, IP65, FCC and CE approvals.
Will it run without a driver?
It is listed as compatible with Windows XP, Windows 7, Windows 8, Linux, Ubuntu and Android.
