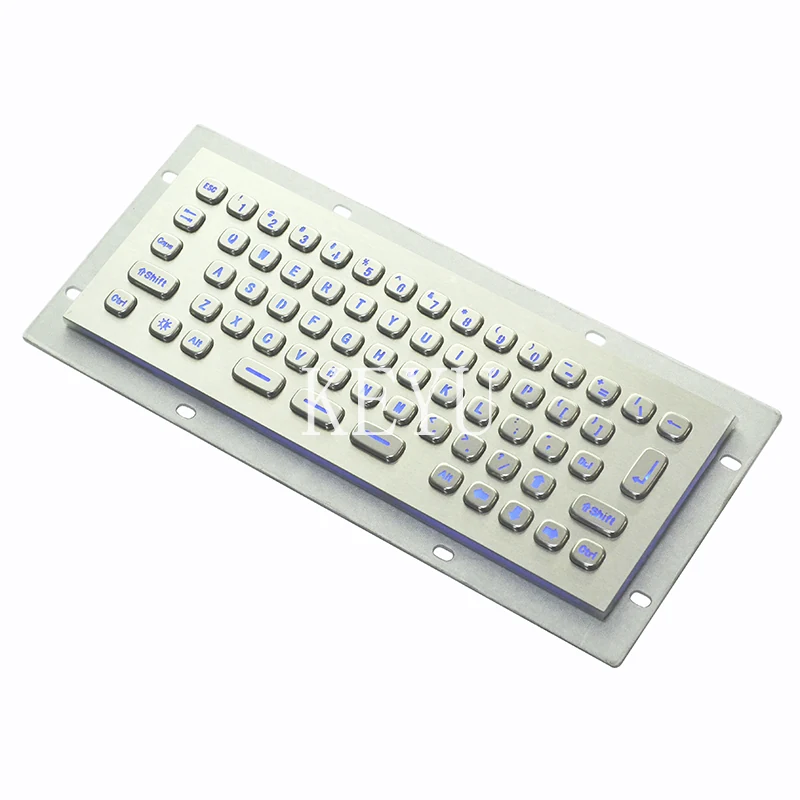

KY-PC-MINI-LED Backlit Metal Keyboard With SUS304 Panel
KY-PC-MINI-LED is a compact LED backlight metal keyboard on a SUS304 brushed stainless steel panel with a 3mm aluminum alloy base plate.
Product Overview
KY-PC-MINI-LED is a compact LED backlight metal keyboard on a SUS304 brushed stainless steel panel with a 3mm aluminum alloy base plate. It is chosen for control rooms, night shift stations and vehicles where the operator has to find a key without a work light. Country-specific keyboard layouts and custom function or combination keys are supported.
- LED backlight keeps legends readable in darkened control rooms and night shifts
- SUS304 brushed stainless steel panel is anti-riot and anti-corrosion
- 3mm aluminum alloy base plate gives rigidity without excess weight at 0.7Kg net
- Working current under 100mA leaves room for other peripherals on the same rail
- Keyboard layouts of various countries are supported and customized to need
- Key strength 1.5N ± 10% avoids stray presses while staying comfortable
Application Scenarios
- Control rooms operated at low light levels
- Night shift monitoring stations
- Vehicle and mobile equipment cabins
- Broadcast and security control desks
- Dimly lit industrial enclosures
Who It Is For
- Control room integrators
- Security and surveillance system builders
- Vehicle and mobile equipment manufacturers
- OEMs supplying multi-country layouts
Problems It Solves
- Operators hunting for keys in low light
- Separate task lighting cluttering a console
- Base plates that flex under panel mounting stress
- Layout changes that would otherwise require new tooling for each market
Technical Features
- LED Backlight Metal Keyboard on a SUS304 brushed stainless steel panel
- 3mm aluminum alloy base plate
- Support for the keyboard layout of various countries, customized to customer needs
- Customizable function keys or combination keys
- Key size 11mm*10mm*4.5/20*10*4.5mm with Key Trip 1.5mm
- Key strength 1.5N ± 10%
- Power supply 5V±5% with working current <100mA
Specifications
| Panel Material | SUS304 brushed stainless steel |
|---|---|
| Base Plate | 3mm aluminum alloy |
| Power supply | 5V±5% |
| Working current | <100mA |
| Durability | >2 million |
| Interface | USB / PS/2 |
| Key size | 11mm*10mm*4.5/20*10*4.5mm |
| Key Trip | 1.5mm |
| Key strength | 1.5N ± 10% |
| Net weight | 0.7Kg |
| Gross weight | 0.8Kg |
| Operation Temperature | -10℃~45℃ |
Materials
- SUS304 brushed stainless steel panel and buttons
- 3mm aluminum alloy base plate
Manufacturing Process
- Sheet metal forming of the SUS304 panel
- CNC machining of the 11*10 and 20*10 key apertures
- Laser etching of legends to allow backlight transmission
- LED backlight layer assembly beneath the key plate
- 3mm aluminum base plate fitting and final wiring
Quality Control
- Backlight uniformity check across the key field
- Key strength sampling at 1.5N ± 10%
- Key trip verification at 1.5mm
- Current draw confirmed under 100mA at 5V±5%
Customisation Options
- Keyboard layout of various countries
- Customizable function keys or combination keys
- Backlight behaviour and legend transmission areas
- Rear or front mounting hardware
- USB or PS/2 interface selection
How It Compares
| Non-backlit metal keyboard | Etched legends transmit LED light, so the layout stays readable without a console lamp |
|---|---|
| Backlit plastic keyboard | The SUS304 panel over a 3mm aluminum base plate is anti-riot and anti-corrosion where a moulded backlit unit is not |
Use Guide
- Confirm the 5V±5% rail can supply under 100mA including the backlight
- Specify the country layout and any combination keys before tooling
- Fit by rear mounting or front mounting to suit the console
- Operate within -10℃~45℃
Related Products
Questions About This Model
Is KY-PC-MINI-LED backlit?
Yes, it is an LED backlight metal keyboard.
What is the base plate?
3mm aluminum alloy.
How much current does it use?
Less than 100mA at 5V±5%.
Can it match a national layout?
Yes, it supports the keyboard layout of various countries, customized to customer needs.
What is the key strength?
1.5N ± 10% with a 1.5mm key trip.
What does it weigh?
0.7Kg net and 0.8Kg gross.
Request A Quote On KY-PC-MINI-LED
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
