KY2175 IIC Metal Keypad for Harsh Environments

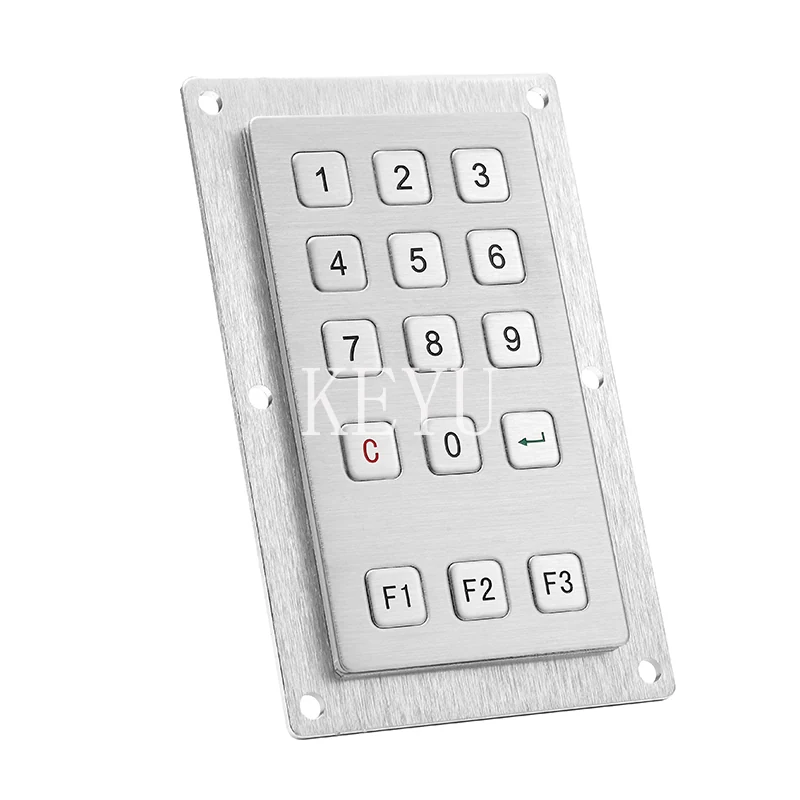

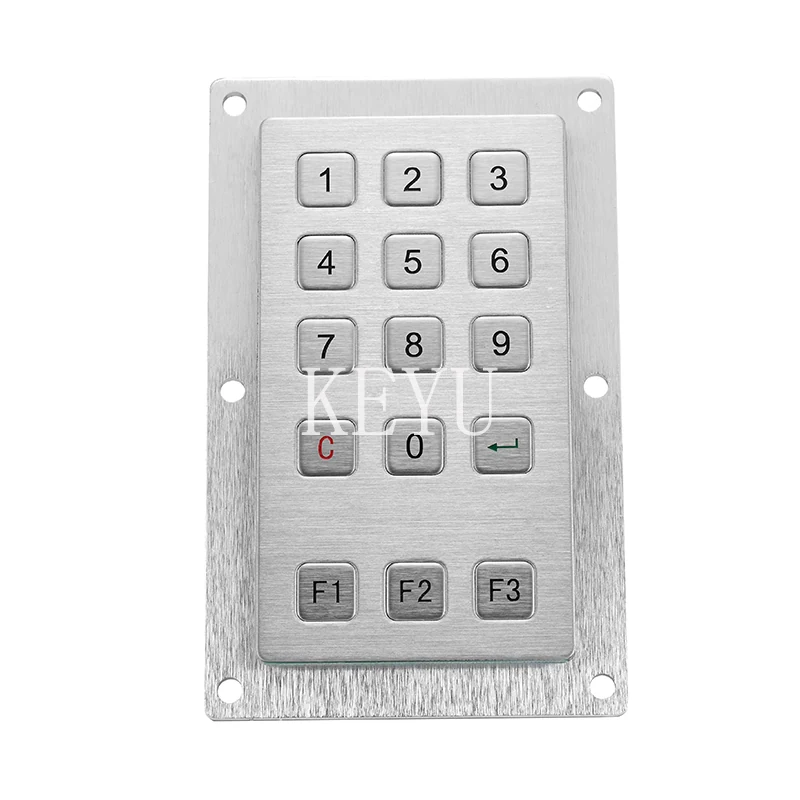

KY2175 is an IIC metal keypad on a SUS304 brushed stainless steel panel, specified for harsh sites such as coal mines, oil fields, chemical and pharmaceutical plants.
Product Overview
KY2175 is an IIC metal keypad on a SUS304 brushed stainless steel panel, specified for harsh sites such as coal mines, oil fields, chemical and pharmaceutical plants. Interface support covers USB, PS/2 and RS232, so it can be added to control equipment of different ages. Mounting is rear or front.
- Built for harsh sites including coal mines, oil fields, chemicals and pharmaceuticals
- Anti-riot and anti-corrosion SUS304 brushed stainless steel panel and buttons
- Support for USB, PS/2 and RS232 across old and new controllers
- Slim 14*14*1.5mm keys keep the assembly shallow behind the panel
- Etched button content set to the plant's own legends
- Rear or front mounting to suit an existing enclosure
Application Scenarios
- Coal mine surface control equipment
- Oil field wellhead and pump control panels
- Chemical plant operator stations
- Pharmaceutical process equipment
- Industrial control cabinets in dusty or corrosive air
Who It Is For
- Mining and oil field equipment manufacturers
- Chemical and pharmaceutical plant engineering teams
- Industrial control panel builders
- Maintenance contractors replacing failed keypads
Problems It Solves
- Corrosive plant air attacks painted and plated keypads
- Legacy control equipment still relies on RS232 or PS/2
- Generic keypads carry legends that do not match plant procedures
- Deep keypad bodies will not fit shallow cabinet doors
Technical Features
- IIC metal keypad with SUS304 brushed stainless steel buttons
- Product interface supports USB, PS/2 and RS232
- Key size 14*14*1.5mm with key trip 0.45mm
- Key strength 3N plus or minus 10 percent
- Power supply 5V plus or minus 5 percent, working current under 150mA
- Durability of more than 2 million operations
- Operation temperature -10 degrees C to 50 degrees C
Specifications
| Power supply | 5V±5% |
|---|---|
| Working current | <150mA |
| Durability | >2 million |
| Product interface | Support USB / PS/2 / RS232 |
| Key size | 14*14*1.5mm |
| Key trip | 0.45mm |
| Key strength | 3N ± 10% |
| Mounting way | Rear mounting or Front mounting |
| Operation temperature | -10℃~50℃ (Relative humidity 20%~85%) |
| Storage temperature | -30℃~85℃ (Relative humidity 20%~90%) |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Stainless panel blanking and flattening
- CNC machining of the key aperture field
- Directional brushing of the panel face
- Etching of button content to customer artwork
- Assembly, harness termination and interface configuration
Quality Control
- Every key tested on the ordered USB, PS/2 or RS232 interface
- Key strength sampled against 3N ± 10%
- Panel surface inspected for pitting and burrs before etching
- Aperture pitch checked against the customer panel drawing
Customisation Options
- Button silk screen or etching content to your requirement
- Interface selected from USB, PS/2 or RS232
- Rear or front mounting configuration
- Panel outline and fixing pattern to your cabinet
- Cable length and connector type
How It Compares
| USB only industrial keypads | KY2175 supports USB, PS/2 and RS232, so older plant controllers are covered without a converter. |
|---|---|
| Painted steel keypads | SUS304 brushed stainless steel resists the corrosive air found in chemical and mining sites. |
| Thick key assemblies | The 14*14*1.5mm keys give a shallow build behind a cabinet door. |
Use Guide
- Choose rear or front mounting to match the cabinet door construction
- Wire the ordered interface and confirm each key reports
- Hold the supply at 5V ± 5%
- Keep ambient within -10℃~50℃ at the installed position
- Wipe the brushed face clean and avoid abrasive pads
Questions About This Model
Where can KY2175 be used?
It is intended for harsh environments such as coal mines, oil fields, chemicals and pharmaceuticals.
Which interfaces are supported?
USB, PS/2 and RS232 are supported.
What is the key size and travel?
Key size is 14*14*1.5mm with a key trip of 0.45mm.
Can the key legends be changed?
Yes, the button silk screen or etching content can be customized to your requirements.
How is it mounted?
Rear mounting or front mounting.
What temperature range does it work over?
Operation temperature is -10℃~50℃ with relative humidity 20%~85%.
Request A Quote On KY2175
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
