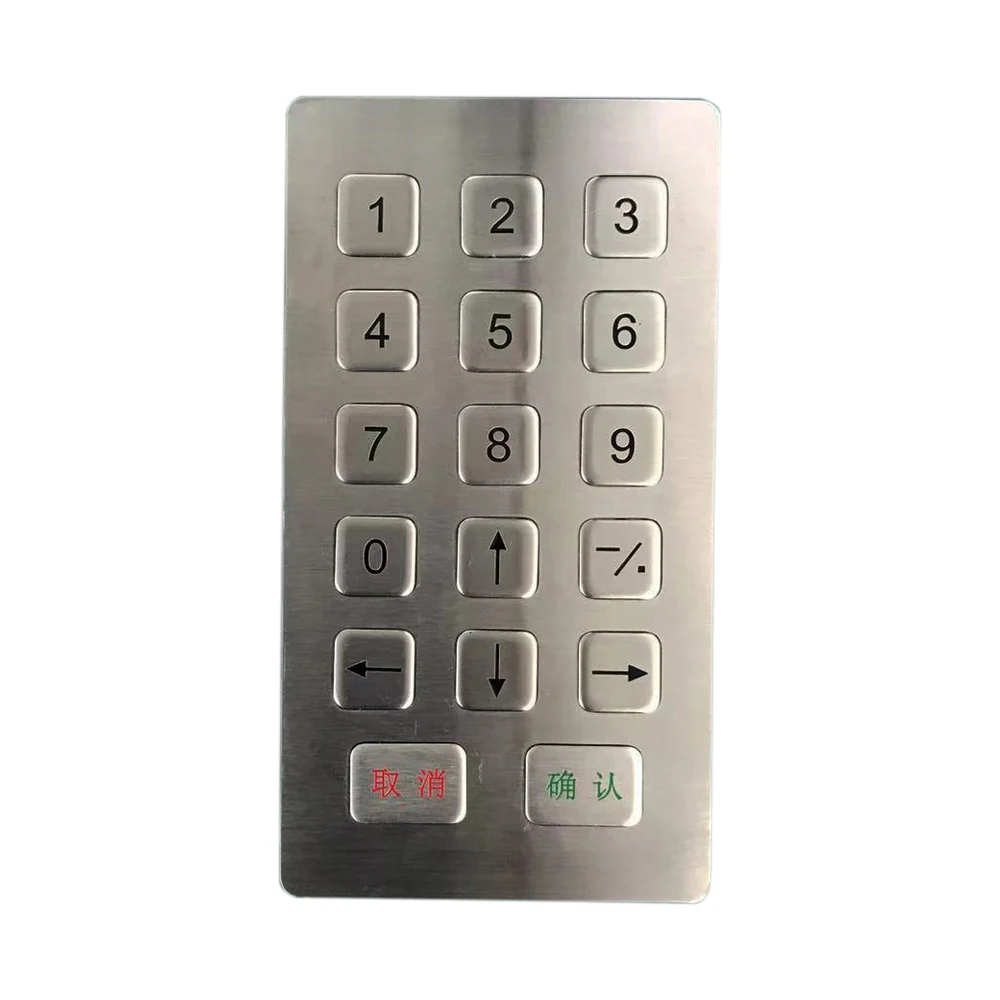

KY2140 Encrypted Digital Keypad With 17 Keys
KY2140 is an encrypted digital keypad with 17 keys, built as an embedded device for financial equipment, communication equipment and machinery that needs secure numeric entry.
Product Overview
KY2140 is an encrypted digital keypad with 17 keys, built as an embedded device for financial equipment, communication equipment and machinery that needs secure numeric entry. The panel and keys are wire drawn SUS304 stainless steel, laser etched when the characters are black. Its short 0.45mm key stroke suits fast repeated code entry at a terminal.
- 17 key encrypted layout is aimed at secure code entry rather than general typing
- Wire drawn SUS304 stainless steel panel and keys are anti-riot and anti-corrosion
- Short 0.45mm key stroke supports fast repeated PIN and code entry
- 2N+/-0.1N contact force is firm enough to resist accidental presses
- Etched key content is made to customer requirements
- Embedded format drops into existing self-service terminal panels
Application Scenarios
- Financial equipment requiring secure numeric entry
- Communication equipment access panels
- Mechanical equipment operator code entry
- Self-service terminal equipment in public areas
- Embedded control panels in machinery
Who It Is For
- Financial self-service terminal manufacturers
- Communication equipment builders
- Machinery OEMs needing an embedded keypad
- Self-service terminal integrators
Problems It Solves
- Unprotected numeric entry on financial terminals
- Slow entry on keypads with long key travel
- Plastic keypads that crack and lose legends in public use
- Off-the-shelf keypads with legends that do not match the application
Technical Features
- Encrypted digital keyboard with 17 keys as an embedded device
- High quality SUS304 wire drawn stainless steel panel, anti-riot and anti-corrosion
- SUS304 wire drawn stainless steel keys, laser etched when characters are black
- Key size 14*14*2.0mm / 20*14*2.0mm with key stroke 0.45mm
- Key force 2N+/-0.1N contact force
- Operating voltage 5V±5% with operating current <150mA
- Mounting mode assemble from bottom to top
Specifications
| Keys | 17 |
|---|---|
| Panel Material | SUS304 wire drawn stainless steel |
| Operating voltage | 5V±5% |
| Operating current | <150mA |
| Service life | >2 million times |
| Interface | USB/PS/2 |
| Key size | 14*14*2.0mm / 20*14*2.0mm |
| Key stroke | 0.45mm |
| Key force | 2N+/-0.1N (contact force) |
| Mounting mode | Assemble from bottom to top |
| Net weight | 0.5Kg |
| Gross weight | 0.65Kg |
Materials
- SUS304 wire drawn stainless steel panel
- SUS304 wire drawn stainless steel keys
Manufacturing Process
- Sheet metal blanking of the 17 key panel
- CNC machining of the 14*14 and 20*14 key apertures
- Wire drawing of the stainless surface
- Laser etching of black characters on the key faces
- Encrypted keypad board assembly and bottom to top fixing
Quality Control
- Key force sampling at 2N+/-0.1N contact force
- Key stroke verification at 0.45mm
- Functional test across all 17 keys
- Weight check at 0.5Kg net and 0.65Kg gross
Customisation Options
- Key screen printing or etching content to customer requirements
- Key size chosen between 14*14*2.0mm and 20*14*2.0mm
- Panel outline matched to the host terminal
- USB or PS/2 interface
- Layout arrangement across the 17 key field
How It Compares
| Standard numeric keypad | KY2140 is an encrypted digital keyboard intended for financial and communication equipment rather than plain numeric input |
|---|---|
| Long travel metal keypad | A 0.45mm key stroke returns faster for repeated code entry at a busy terminal |
Use Guide
- Assemble from bottom to top into the host panel
- Supply 5V±5% and allow under 150mA
- Specify etched character content before production
- Operate within -10℃~45℃ and store within -30℃~85℃
Questions About This Model
How many keys does KY2140 have?
17 keys, as an encrypted digital keyboard.
Where is it used?
Financial equipment, communication equipment, mechanical equipment and self-service terminal equipment.
What is the key stroke?
0.45mm, with a key force of 2N+/-0.1N contact force.
How is it mounted?
Assembled from bottom to top.
What does it weigh?
0.5Kg net and 0.65Kg gross.
Can legends be customized?
Yes, key screen printing or etching content is customized to customer requirements.
