KY2130 Outdoor Metal Keypad With Function Keys

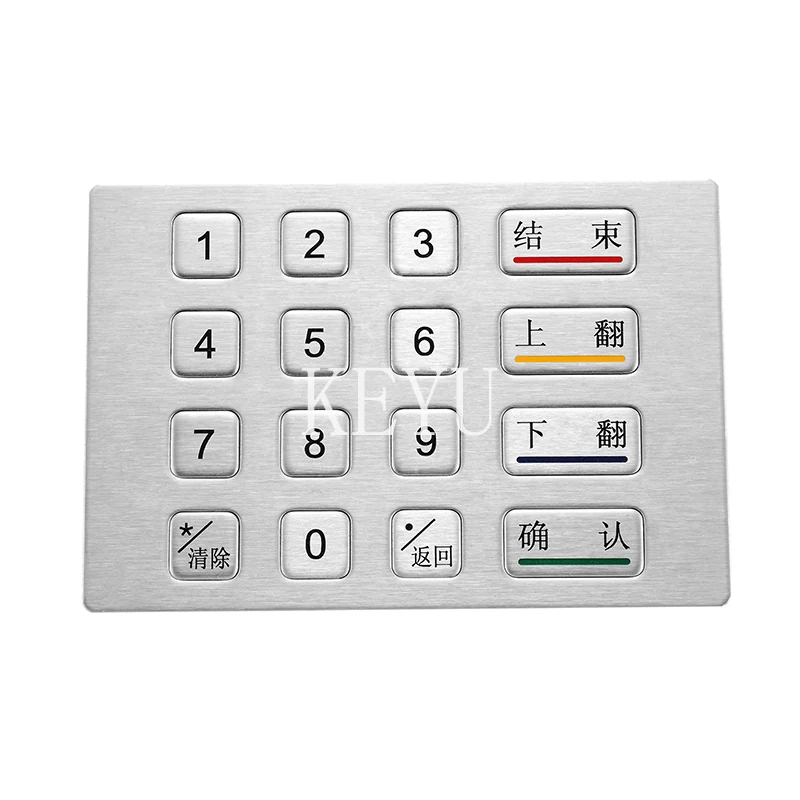

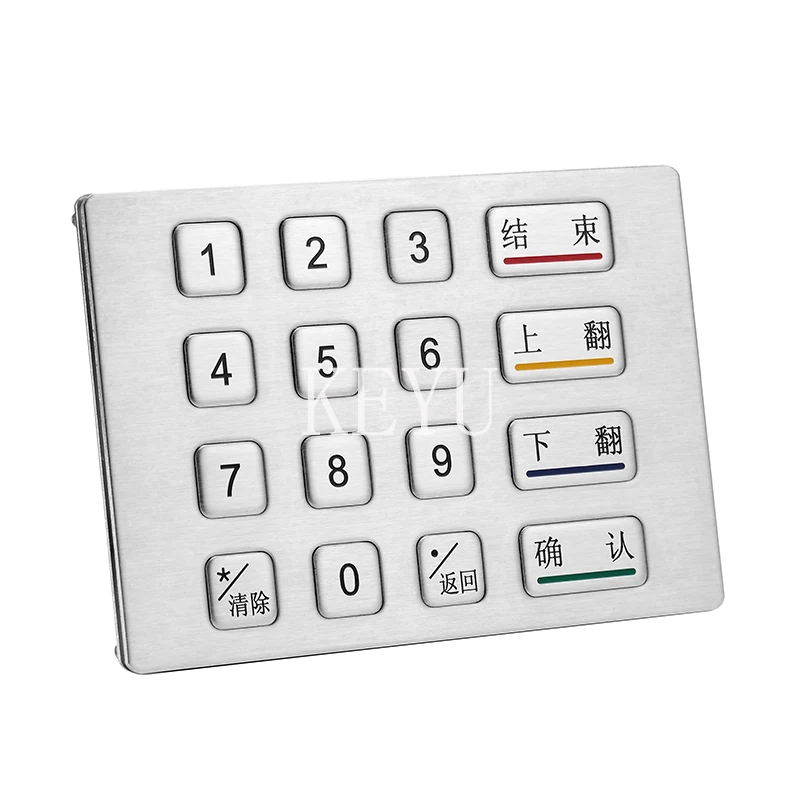

KY2130 is a stainless steel keypad intended for outdoor terminals, combining 14*14*1.5mm common keys with 14*28*1.5mm function keys.
Product Overview
KY2130 is a stainless steel keypad intended for outdoor terminals, combining 14*14*1.5mm common keys with 14*28*1.5mm function keys. Its SUS304 panel is described as anti-riot and anti-corrosion, which matters on fascias exposed to weather and handling. At 0.25Kg net weight it adds little load to a pole-mounted or wall-mounted unit.
- Common and function keys are separated by size for eyes-free operation outdoors
- SUS304 panel described as anti-corrosion for rain and salt-laden air
- 0.25Kg net weight keeps pole and wall mounted fascias light
- Etched legends do not fade under sunlight the way printed overlays do
- Operation to 50℃ covers sun-exposed enclosures
- Durability >2 million supports year-round public use
Application Scenarios
- Outdoor gate and barrier entry stations
- Car park payment and exit terminals
- Roadside and forecourt self-service units
- Campus and estate access posts
- Exposed utility and irrigation cabinets
Who It Is For
- Outdoor terminal and kiosk manufacturers
- Parking and access system integrators
- Municipal and campus facility contractors
- OEMs replacing weather-damaged plastic keypads
Problems It Solves
- Plastic outdoor keypads become brittle and discoloured in sunlight
- Printed legends fade and become unreadable within a season
- Heavy keypads strain pole-mounted fascias
- Users cannot tell function keys from digits at a glance outdoors
Technical Features
- Common key 14*14*1.5mm and function key 14*28*1.5mm
- Key trip 0.45mm with key strength 3N ± 10%
- SUS304 brushed stainless steel panel and buttons
- Power supply 5V±5% and working current <150mA
- USB, PS/2 and RS232 support
- Net weight 0.25Kg and gross weight 0.3Kg
- Operation temperature -10℃~50℃
Specifications
| Panel material | SUS304 brushed stainless steel |
|---|---|
| Common key size | 14*14*1.5mm |
| Function key size | 14*28*1.5mm |
| Key trip | 0.45mm |
| Key strength | 3N ± 10% |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Interface | USB / PS/2 / RS232 |
| Net weight | 0.25Kg |
| Gross weight | 0.3Kg |
| Operation temperature | -10℃~50℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel common and function keycaps
Manufacturing Process
- Panel forming for an outdoor fascia fit
- Brushing of the exposed stainless steel surfaces
- Etching of the customized key content
- Switch layer assembly and panel closure
- Function test and packing
Quality Control
- Key strength sampled against 3N ± 10%
- Etch depth checked so legends survive weathering
- Weight verified against the 0.25Kg net figure
- All key outputs tested before despatch
Customisation Options
- Etched key content to customer artwork
- Allocation of 14*28*1.5mm function keys
- USB, PS/2 or RS232 interface build
- Panel outline to suit the outdoor fascia
- Rear or front mounting hardware
How It Compares
| Plastic outdoor keypad | Stainless steel does not go brittle or chalky after seasons of UV exposure |
|---|---|
| Uniform key metal keypad | Separate 14*28*1.5mm function keys are found by touch in poor outdoor light |
| Heavier panel keyboard | 0.25Kg net weight suits pole and wall fascias with limited support |
Use Guide
- Mount within a fascia that sheds water away from the cable entry
- Confirm the cutout suits rear or front mounting before installation
- Provide 5V±5% with under 150mA available
- Keep ambient within -10℃~50℃ in service
- Rinse salt or dust off the panel periodically
Industries
Solutions
Related Reading
Questions About This Model
What key sizes are used?
Common keys are 14*14*1.5mm and function keys are 14*28*1.5mm.
How heavy is the keypad?
Net weight 0.25Kg and gross weight 0.3Kg.
Is it suitable for outdoor terminals?
The SUS304 panel is described as anti-riot and anti-corrosion and operates from -10℃~50℃.
Can the legends be customized?
Yes, etched button content is customized according to customer requirements.
Which interfaces are available?
USB, PS/2 and RS232.
What is the rated durability?
More than 2 million operations.
