KY-MJ01A Outdoor Waterproof Metal Keypad

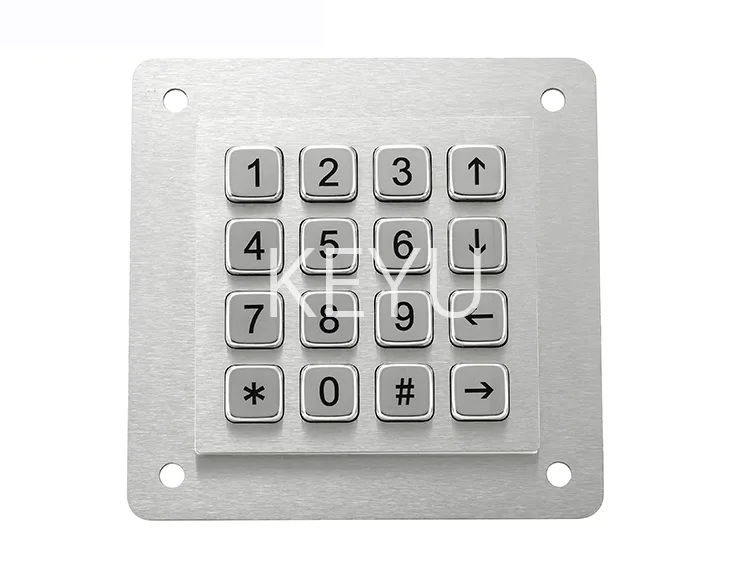

KY-MJ01A is a square waterproof keypad with an 82.6*82.6 mm front panel on a 114.5*114.5 mm mounting body, built for outdoor terminals that stay unattended in all weather.
Product Overview
KY-MJ01A is a square waterproof keypad with an 82.6*82.6 mm front panel on a 114.5*114.5 mm mounting body, built for outdoor terminals that stay unattended in all weather. The 10Million actuation rating targets high traffic sites such as fuel forecourts. Layouts of 12 or 16 keys are standard and other counts can be built to order.
- Durability of 10Million actuations suits forecourt level daily traffic
- Working current below 100mA leaves headroom in outdoor power budgets

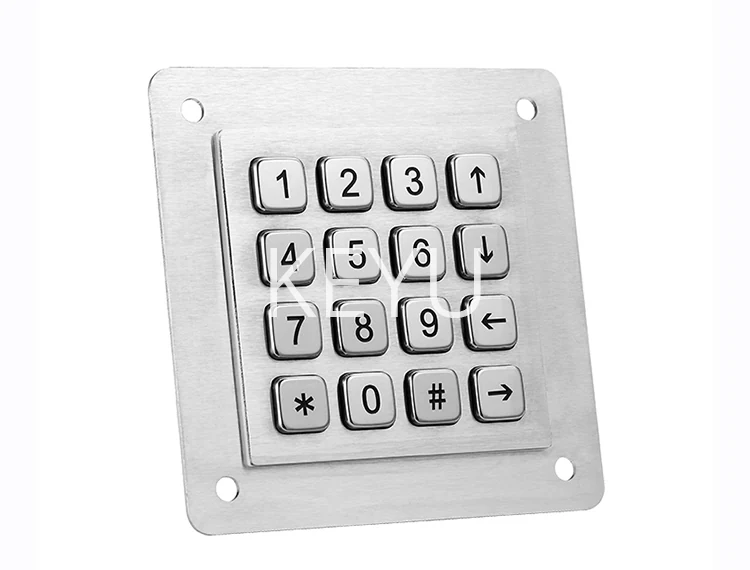

- 82.6*82.6 mm visible panel with a wider 114.5*114.5 mm fixing flange for a weather tight seat
- Resistant to dirt, dust and liquid with a rugged vandal proof body
- 12 or 16 key layouts as standard with other counts customised
Application Scenarios
- Petrol station pump side payment terminals
- Ticket vending machines in open air
- Parking venue entry and payment columns
- Unattended outdoor access points
- Roadside service terminals
Who It Is For
- Fuel retail equipment suppliers
- Parking systems integrators
- Outdoor ticketing terminal manufacturers
Problems It Solves
- Indoor rated keypads fail within a season on exposed forecourts
- High transaction counts wear out 2 million cycle keypads early
- Keypad flanges that match the cutout leave no room for a weather seal
Technical Features
- Rugged vandal proof body resistant to dirt, dust and liquid
- Customised layout with 12 or 16 keys and other counts available
- USB, PS/2 and RS232 interfaces
- Power supply DC5V±5% with working current below 100mA
- Durability of 10Million actuations
- Operation temperature -20℃~55℃ and storage -30℃~85℃
Specifications
| Front Panel | 82.6*82.6 mm |
|---|---|
| Overall Dimension | 114.5*114.5 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Durability | ≥10Million |
| Interface | USB, PS/2, RS232 |
| Key Count | 12, 16 keys or customised |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Compatible Systems | Windows XP, Windows 7, Windows 10, Linux, Ubuntu, Android |
Materials
- Metal front panel
- Sealed keypad assembly
Manufacturing Process
- Panel forming to the 114.5*114.5 mm flange outline
- CNC machining of the 82.6*82.6 mm key field
- Key legend marking
- Sealing and potting of the rear assembly
- Function and durability sampling
Quality Control
- Actuation sampling against the 10Million rating
- Water and dust exposure of the assembled face
- Current draw checked below 100mA
- Layout and legend verification against the customer drawing
Customisation Options
- 12 key, 16 key or a customer defined key count
- Layout and legend artwork to order
- USB, PS/2 or RS232 output
- Flange drilling to the customer cutout
How It Compares
| KY-MJ02A | The square 82.6*82.6 mm field suits a four by four grid rather than a narrow column |
|---|---|
| 2 Million cycle indoor keypad | The 10Million rating is aimed at daily unattended outdoor transaction volume |
Use Guide
- Cut to the 82.6*82.6 mm panel and seat the 114.5*114.5 mm flange on a gasket
- Confirm the key count needed before production as layouts are built to order
- Feed DC5V±5% and allow under 100mA
- Keep the outdoor enclosure within -20℃~55℃ in service
Industries
Solutions
Related Reading
Questions About This Model
How many keys can I have?
12 and 16 key layouts are standard and other key counts can be customised.
What is the cycle rating?
Durability is listed at 10Million actuations.
Is an IP rating published?
The source data describes resistance to dirt, dust and liquid but does not name an IP figure, so we confirm the rating per project.
Which operating systems are supported?
Windows XP, Windows 7, Windows 10, Linux, Ubuntu and Android.
What is the mounting outline?
The overall dimension is 114.5*114.5 mm around an 82.6*82.6 mm front panel.
Request A Quote On KY-MJ01A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
