Waterproof Solution for Outdoor Application

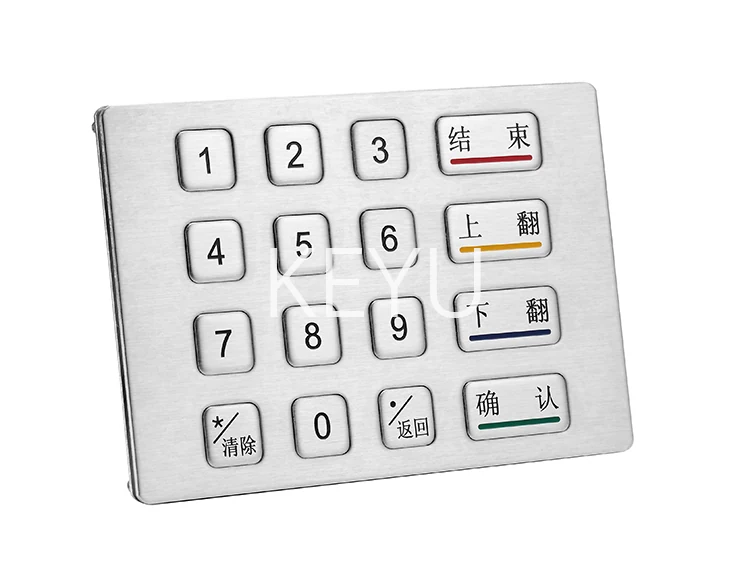

KY2130 Flush Waterproof Metal Keypad

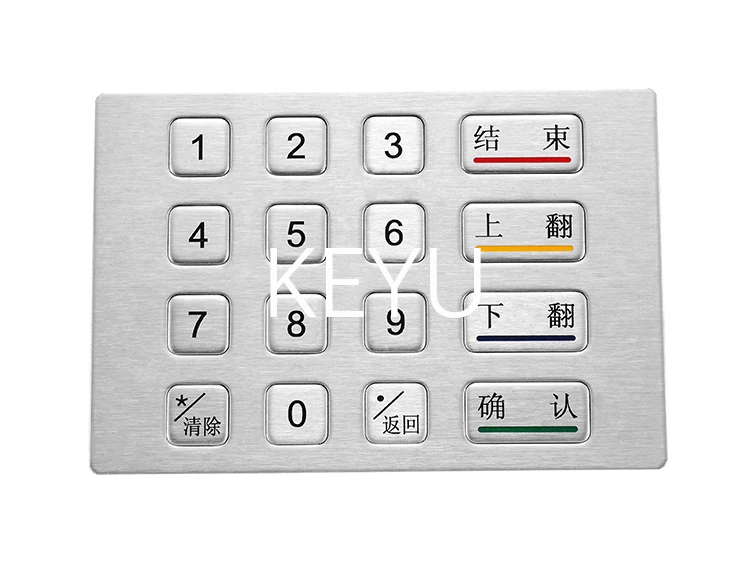

KY2130 is a landscape waterproof keypad whose panel and overall dimensions are both 130*90 mm, so the whole unit sits within the visible outline.
Product Overview
KY2130 is a landscape waterproof keypad whose panel and overall dimensions are both 130*90 mm, so the whole unit sits within the visible outline. That makes it straightforward to place in a crowded fascia next to displays and readers. It carries a 10Million actuation rating for unattended outdoor duty.
- Flush 130*90 mm outline with no hidden flange to allow for
- 10Million actuation rating for daily public transaction volume
- Wide landscape field gives room for function keys beside the digits
- Working current below 100mA at DC5V±5%
- Vandal proof body resistant to dirt, dust and liquid
Application Scenarios
- Petrol station payment terminals
- Outdoor ticket vending machines
- Parking venue pay stations
- Access terminals at logistics gates
- Unattended service points in public squares
Who It Is For
- Outdoor terminal manufacturers
- Parking and tolling integrators
- Fuel retail equipment suppliers
Problems It Solves
- Hidden mounting flanges collide with adjacent fascia components
- Standard keypads wear out under high daily use
- Wet weather entry through the keypad cutout
Technical Features
- Panel and overall dimension both 130*90 mm
- Customised layout with 12 or 16 keys and other counts available
- USB, PS/2 and RS232 interfaces
- DC5V±5% supply with working current below 100mA
- Durability of 10Million
- Operation temperature -20℃~55℃
Specifications
| Front Panel | 130*90 mm |
|---|---|
| Overall Dimension | 130*90 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Durability | ≥10Million |
| Interface | USB, PS/2, RS232 |
| Key Count | 12, 16 keys or customised |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- Metal front panel
- Sealed switch assembly
Manufacturing Process
- Blanking of the 130*90 mm landscape panel
- CNC key aperture machining
- Legend marking
- Rear sealing for outdoor service
- Assembly and function test
Quality Control
- Endurance sampling to the 10Million rating
- Water exposure test of the sealed panel
- Verification of key mapping against the customer layout
- Current draw measured below 100mA
Customisation Options
- Layout built with 12, 16 or other key counts
- Legend artwork and language set
- USB, PS/2 or RS232 termination
- Fixing points matched to the fascia
How It Compares
| KY-MJ01A | KY2130 has no oversize flange, so panel and overall size are both 130*90 mm |
|---|---|
| Backlit indoor keypad | This unit is specified for outdoor exposure rather than illuminated indoor use |
Use Guide
- Plan the cutout to the 130*90 mm outline
- Agree key count and legends before production
- Supply DC5V±5% at under 100mA
- Inspect the seal at routine terminal maintenance
Industries
Solutions
Related Reading
Questions About This Model
Does this keypad have a hidden flange?
No. Front panel and overall dimensions are both listed as 130*90 mm.
What cycle life is quoted?
10Million actuations.
Can the key count change?
12 and 16 key versions are listed and other counts can be customised.
Which systems can it drive?
Windows XP, Windows 7, Windows 10, Linux, Ubuntu and Android.
What current does it draw?
Below 100mA at DC5V±5%.
Request A Quote On KY2130
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
