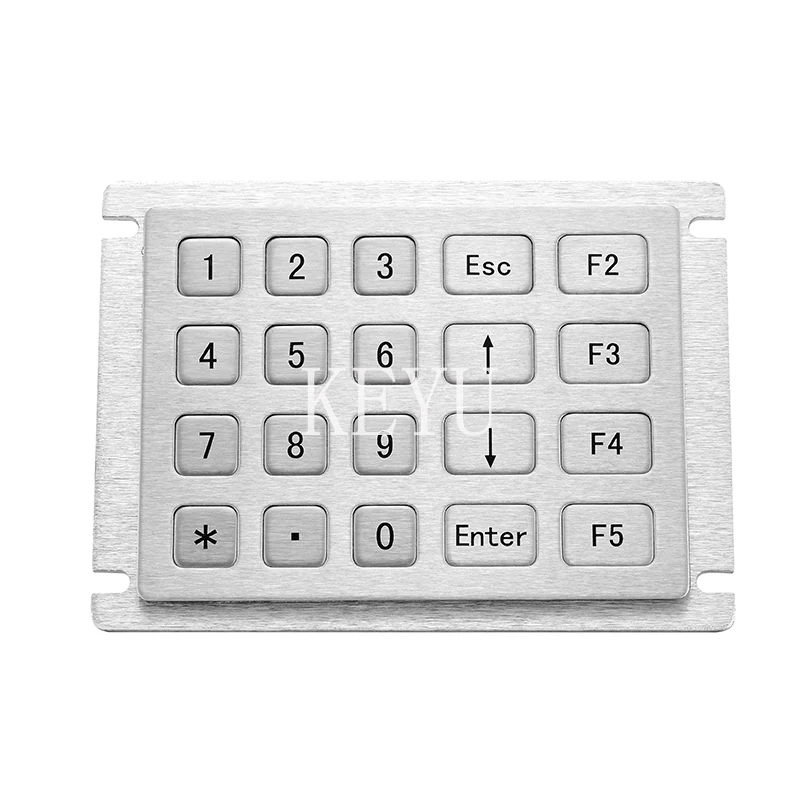

KY2122 Vandal Proof Metal Keypad With Laser or Etched Labels
KY2122 is a water and vandal proof stainless steel keypad with a compact layout that is customized for free. Key labeling can be produced by laser or by etching, depending on the contrast and depth you need.
Product Overview
KY2122 is a water and vandal proof stainless steel keypad with a compact layout that is customized for free. Key labeling can be produced by laser or by etching, depending on the contrast and depth you need. The key field mixes 14*14*1.5mm and 21.5*15.5*1.5mm caps for numeric and function entry.
- Laser or etching key labeling lets you choose contrast against the brushed finish
- Water and vandal proof design suits unsupervised public positions
- Compact layout is customized for free rather than charged as tooling

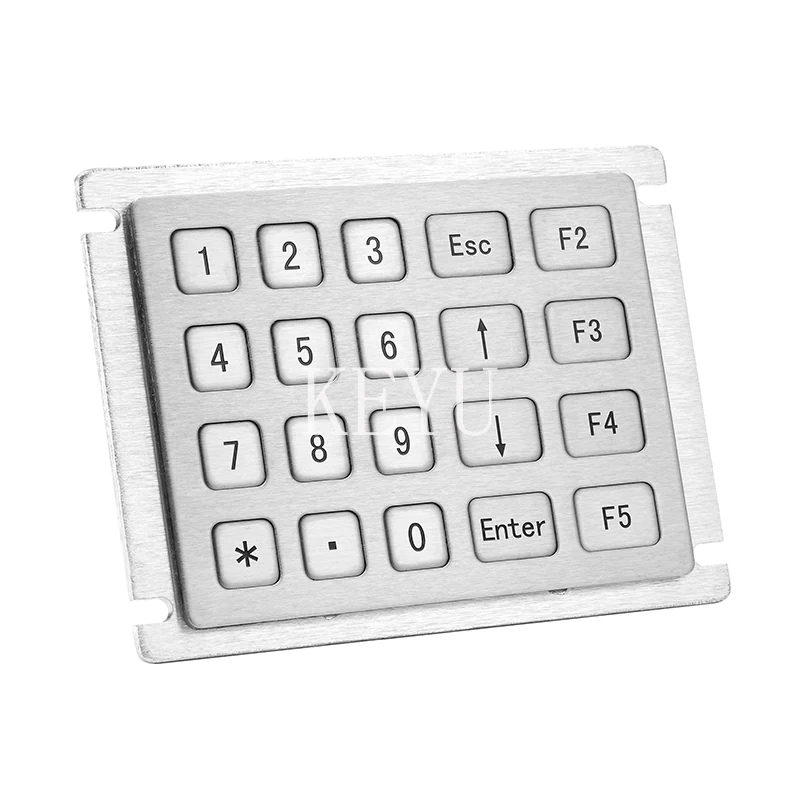

- Mixed 14*14*1.5 and 21.5*15.5*1.5mm caps separate digits from functions
- Durability ≥2 million supports constant public operation
- Net weight 0.25Kg keeps the fascia load low
Application Scenarios
- Street-level access and intercom panels
- Public transport help and ticket points
- Laundry and locker payment terminals
- Building entrances in high-traffic housing
- Unattended service kiosks
Who It Is For
- Access control and intercom manufacturers
- Public infrastructure equipment suppliers
- Self-service terminal OEMs
- Facility managers replacing vandalised keypads
Problems It Solves
- Public keypads are deliberately damaged and need frequent replacement
- Rain and splash enter conventional keypads at the key gaps
- Layout changes usually incur new tooling cost
- Label wear makes keys ambiguous after a year of use
Technical Features
- Stainless steel buttons with a water and vandal proof design
- Laser or etching procedure for key labeling
- Key size 14*14*1.5 / 21.5*15.5*1.5mm
- Key trip 0.45mm with key strength 3N ± 10%
- Power supply 5V±5% and working current <150mA
- USB, PS/2 and RS232 support
- Durability ≥2 million
Specifications
| Key material | Stainless steel |
|---|---|
| Labeling | Laser or etching |
| Key size | 14*14*1.5 / 21.5*15.5*1.5mm |
| Key trip | 0.45mm |
| Key strength | 3N ± 10% |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | ≥2 million |
| Interface | USB / PS/2 / RS232 |
| Net weight | 0.25Kg |
| Gross weight | 0.3Kg |
| Operation temperature | -10℃~50℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
Materials
- Stainless steel panel
- Stainless steel keycaps
Manufacturing Process
- Panel blanking and vandal resistant forming
- Brushing of panel and cap faces
- Laser marking or chemical etching of key labels
- Sealing of the key field against splash
- Electrical test and packing
Quality Control
- Label adhesion and depth checked for both laser and etched options
- Key strength sampled against 3N ± 10%
- Splash resistance verified on assembled panels
- All key outputs confirmed before packing
Customisation Options
- Compact layout customized for free
- Laser or etching selected per label contrast requirement
- USB, PS/2 or RS232 interface build
- Key mix of 14*14*1.5 and 21.5*15.5*1.5mm caps
- Rear or front mounting arrangement
How It Compares
| Etch-only metal keypad | Laser marking is also offered when you want a different contrast on the brushed face |
|---|---|
| Plastic vandal resistant keypad | Stainless steel caps do not shatter under a struck blow |
| Fixed layout keypad | The compact layout is customized for free instead of forcing a standard key order |
Use Guide
- Choose laser or etching based on the contrast you need at viewing distance
- Send layout requirements early since customization is included
- Supply 5V±5% within the <150mA budget
- Keep ambient within -10℃~50℃
- Wipe the panel clean rather than scraping deposits off the caps
Questions About This Model
How are the keys labelled?
Either a laser or an etching procedure, selected at order.
Is the layout fixed?
No, the compact layout is customized for free.
Is it suitable for public places?
It uses a water and vandal proof design with stainless steel buttons.
What key sizes are available?
14*14*1.5mm and 21.5*15.5*1.5mm.
How durable are the keys?
Durability is rated at ≥2 million operations.
What does it weigh?
Net weight 0.25Kg and gross weight 0.3Kg.
Request A Quote On KY2122
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
