KY2116R Flush Mount Metal Keypad 116*97.5 mm

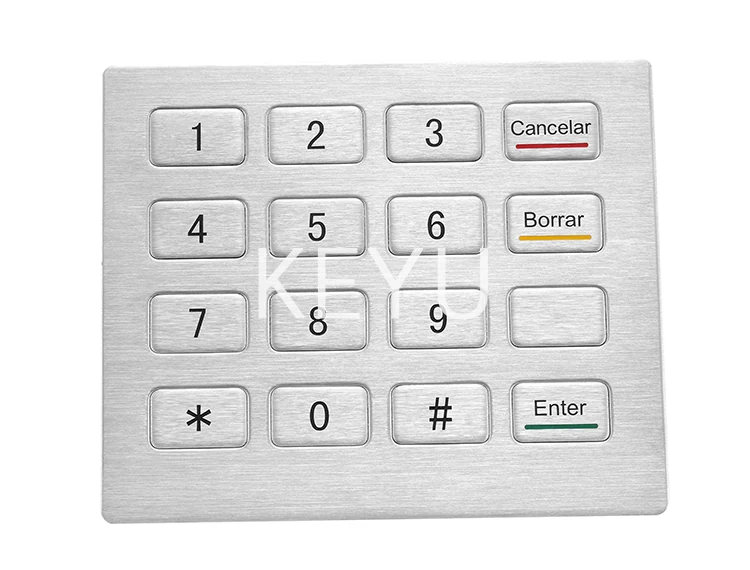

KY2116R is a water and vandal proof metal keypad whose front panel and overall size are both 116*97.5 mm, so it installs into a plain rectangular opening with no rear flange to accommodate.
Product Overview
KY2116R is a water and vandal proof metal keypad whose front panel and overall size are both 116*97.5 mm, so it installs into a plain rectangular opening with no rear flange to accommodate. Stainless steel buttons with a 0.45mm key trip and 220g±20g force are backed by a ≥2 million durability figure. It is aimed at ticket vending machines, kiosks and parking solutions.
- Matching 116*97.5 mm front panel and overall size for straightforward flush fitting
- Water and vandal proof metal panel with RoHS, IP65, FCC and CE
- 0.45mm key trip and 220g±20g force for quick repeated numeric entry
- USB, PS/2 or RS232 to suit PC or embedded parking controllers
- Durability ≥2 million operations on stainless steel buttons
- Supported on Window XP, Window 7, Window 10, Linux, Ubuntu and Android
Application Scenarios
- Ticket vending machines with limited panel depth
- Kiosk terminals where a flush metal face is wanted
- Parking solution pay stations and entry columns
- Semi-outdoor installations working from -20℃ to 55℃
Who It Is For
- Parking equipment manufacturers
- Ticket machine OEMs
- Kiosk builders with shallow enclosures
- Service providers replacing damaged keypads in the field
Problems It Solves
- Keypads whose rear body is larger than the panel cut-out permits
- Weather and liquid damage on outdoor pay stations
- Embedded controllers without a USB host port
- Key legends wearing off under heavy public use
- Vandalism to exposed plastic input panels
Technical Features
- Front panel and overall dimensions both 116*97.5 mm

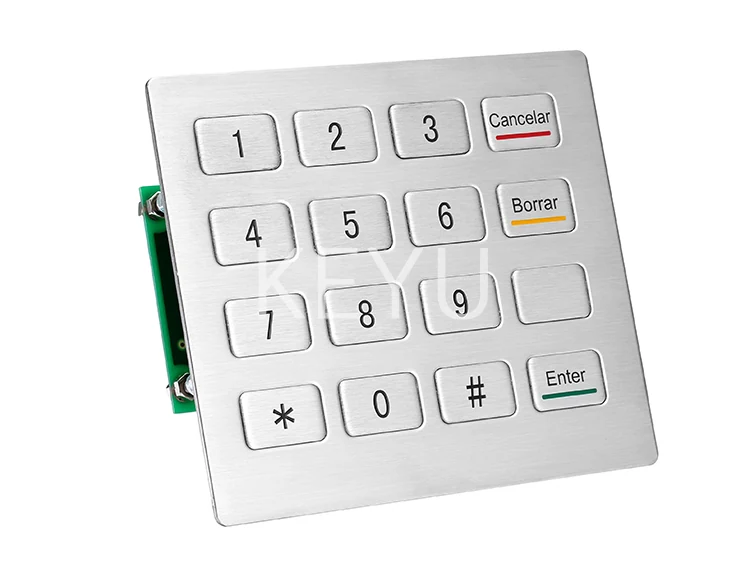

- Stainless steel buttons with a water and vandal proof design
- Key trip 0.45mm, operation force 220g±20g
- USB, PS/2 or RS232 at DC5V±5% with working current under 150mA
- Durability ≥2 million operations
- Packing dimension 160 *160*60 mm
Specifications
| Front Panel | 116*97.5 mm |
|---|---|
| Overall | 116*97.5 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 220g±20g |
| Durability | ≥2 million |
| Packing Dim | 160 *160*60 mm |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel key buttons
- Metal keypad panel with sealing gasket
Manufacturing Process
- Precision blanking of the 116*97.5 mm panel
- CNC machining of key apertures to keep the flush profile
- Laser or etching of key legends
- Sealed key module assembly
- Interface termination and functional test
Quality Control
- Flatness and edge inspection for flush installation
- Seal test supporting the IP65 approval
- Key trip check at 0.45mm and force sampling at 220g±20g
- Interface enumeration test for the ordered connection
- Durability sampling against ≥2 million operations
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching key labeling
- Interface set to USB, PS/2 or RS232
- Fixing and stud pattern to your drawing
- Cable length to reach your controller
How It Compares
| KY2122 metal keypad | KY2116R is flush at 116*97.5 mm front and overall, while KY2122 has a 140*103 mm body behind a 120*90 mm face. |
|---|---|
| KY2070 metal keypad | KY2116R offers a larger 116*97.5 mm key area against the 70*80 mm face of KY2070. |
| Membrane keypad overlay | Stainless steel buttons with ≥2 million durability replace an overlay that abrades and lifts at the edges. |
Use Guide
- Cut a plain 116*97.5 mm opening; the front and overall sizes match
- Allow clearance behind the panel for the cable exit
- Select USB, PS/2 or RS232 at order stage
- Supply DC5V±5% with under 150mA available
- Keep operation within -20℃~55℃ and 20%~85% relative humidity
Questions About This Model
Why are both dimensions the same?
Front panel and overall size are both 116*97.5 mm, giving a flush installation without a rear flange allowance.
Is it suitable for outdoor parking columns?
It uses a water and vandal proof design with an IP65 approval and operates from -20℃ to 55℃.
Which interfaces are available?
USB, PS/2 or RS232.
What is the key feel?
Key trip 0.45mm at an operation force of 220g±20g.
What is the shipping carton size?
The packing dimension is 160 *160*60 mm.
Which operating systems are supported?
Window XP, Window 7, Window 10, Linux, Ubuntu and Android.
Request A Quote On KY2116R
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
