Metal Keypad

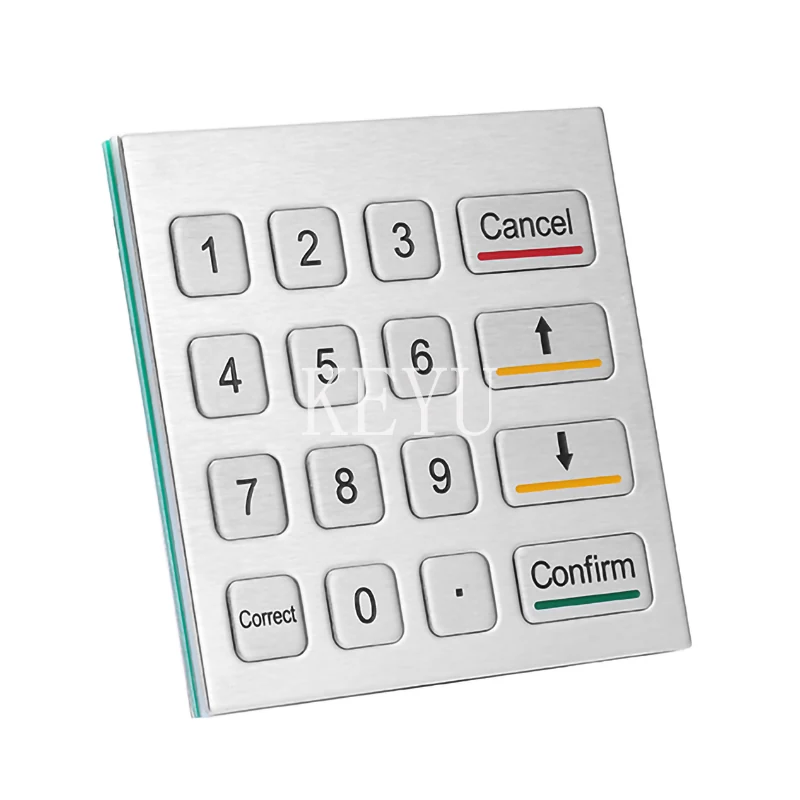

KY2100A 16 Key SUS304 Metal Keypad With 4x4 Matrix
KY2100A is a 16keys SUS304 stainless steel keypad arranged as a 4×4 Matrix for gas station and access control terminals.
Product Overview
KY2100A is a 16keys SUS304 stainless steel keypad arranged as a 4×4 Matrix for gas station and access control terminals. Keys are etched in black text and embossing is available so numeric entry stays readable and tactile outdoors. It is intended for OEMs who need a vandal proof anti corrosion numeric input in a matrix arrangement.
- 4×4 Matrix layout maps directly to standard numeric entry firmware
- SUS304 stainless steel keypad and keys resist corrosion at fuel forecourts
- Black text etching keeps legends permanent
- Embossing is available for tactile identification of keys
- USB PS/2 and RS232 support covers pump and access controllers
- Working current under 150mA on a 5V plus or minus 5 percent supply
Application Scenarios
- Gas station pump and payment terminals
- Access control entry points
- Outdoor numeric code entry stations
- Self service fuel kiosks
- Industrial machine numeric entry
- Unattended terminals needing matrix output
Who It Is For
- Fuel dispenser and forecourt equipment makers
- Access control system integrators
- Outdoor terminal manufacturers
- Industrial machine builders
Problems It Solves
- Fuel vapour and weather corrode ordinary keypads
- Printed numbers disappear from heavily used entry pads
- Operators cannot locate keys by touch in poor light
- Controllers expect matrix scanning rather than a keyboard protocol
Technical Features
- 16keys in a 4×4 Matrix arrangement
- Key size 14*14*1.5mm with 0.45mm key trip
- Operation force 3N plus or minus 10 percent
- Power supply 5V plus or minus 5 percent with current under 150mA
- Durability above 2 Million operations
- Operating temperature -10 to 45 degrees C and storage -30 to 85 degrees C
- Rare mounting installation
Specifications
| Keys | 16keys, 4×4 Matrix |
|---|---|
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 Million |
| Interface | USB / PS/2 / RS232 |
| Key Size | 14*14*1.5mm |
| Key Trip | 0.45mm |
| Operation Force | 3N ± 10% |
| Mounting way | Rare mounting |
| Operating Temperature | -10℃~45℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 stainless steel keypad panel
- SUS304 stainless steel keys
Manufacturing Process
- SUS304 sheet metal forming
- CNC punching of the 4×4 key field
- Etching of black key text
- Embossing of key faces where specified
- Matrix circuit assembly and sealing
- Interface build for USB PS/2 or RS232
Quality Control
- Matrix scan continuity test on all 16keys
- Operation force checked at 3N plus or minus 10 percent
- Key travel verified at 0.45mm
- Etch depth and text contrast inspection
- Life sampling above 2 Million operations
Customisation Options
- Customized layouts of the 4×4 field
- Embossing of selected keys
- Black text etching content
- USB PS/2 or RS232 interface build
- Panel fixing for rare mounting in the host
How It Compares
| Plastic 16 key pads | SUS304 keys and panel survive forecourt chemicals and impact |
|---|---|
| Flat printed keypads | Embossing gives tactile key location where printed pads give none |
| KY3088E | A 4×4 Matrix arrangement with 14*14*1.5mm keys rather than the 100*100 mm panel layout |
Use Guide
- Confirm the controller can read a 4×4 Matrix or select the USB build
- Mount from the rear of the fascia
- Operate between -10 and 45 degrees C
- Specify embossing and etched text at order
- Supply 5V plus or minus 5 percent
Questions About This Model
What layout does KY2100A use?
16keys in a 4×4 Matrix.
How are the key legends made?
Black text can be etched and embossing is available.
What interfaces are supported?
USB PS/2 and RS232.
What is the key size?
14*14*1.5mm with a 0.45mm key trip.
What is the operation force?
3N plus or minus 10 percent.
What temperature range does it cover?
Operating -10℃~45℃ and storage -30℃~85℃.
Request A Quote On KY2100A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
