KY2088B 16 Key IP65 Waterproof Numeric Metal Keypad

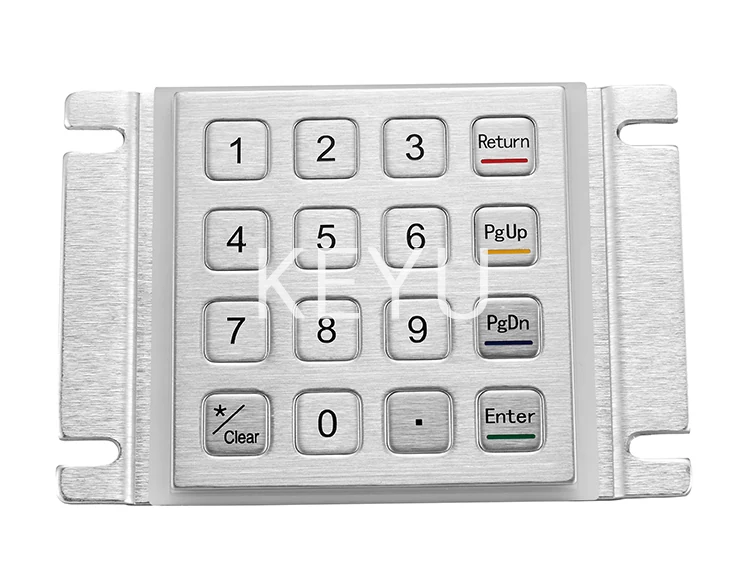

KY2088B is a 16 key numeric metal keypad with a front panel of 87.5*91.5 mm and an overall size of 138*95 mm, rated IP65 against water and dust.
Product Overview
KY2088B is a 16 key numeric metal keypad with a front panel of 87.5*91.5 mm and an overall size of 138*95 mm, rated IP65 against water and dust. The compact layout is aimed at ticket vending machines, kiosks and self service payment machines where only digits and a few control keys are needed. Operation force is 220g±20g with a 0.45mm key trip for fast repeated entry.
- A 16 key numeric layout keeps the fascia cutout small at 87.5*91.5 mm
- IP65 sealing protects against rain and washing on outdoor ticket machines
- 220g±20g operation force with 0.45mm travel supports rapid digit entry
- Three interface options cover USB, PS/2 and RS232 hosts
- Stainless steel water and vandal proof design resists attack on street machines
Application Scenarios
- Ticket vending machines in transport hubs
- Self service payment machines outdoors
- Information kiosks needing numeric entry only
- Access points requiring a digit code
- Unattended machines exposed to -20℃~55℃ operating conditions
Who It Is For
- Ticket machine manufacturers
- Self service payment terminal OEMs
- Kiosk integrators fitting a compact numeric pad
Problems It Solves
- Full keyboards waste fascia space where only digits are entered
- Plastic numeric pads are attacked on unattended street machines
- Rain and dust enter unsealed keypads on outdoor terminals
- Mixed host hardware needs USB, PS/2 and RS232 support from one model
Technical Features
- 16 keys in a compact numeric layout, customized for free

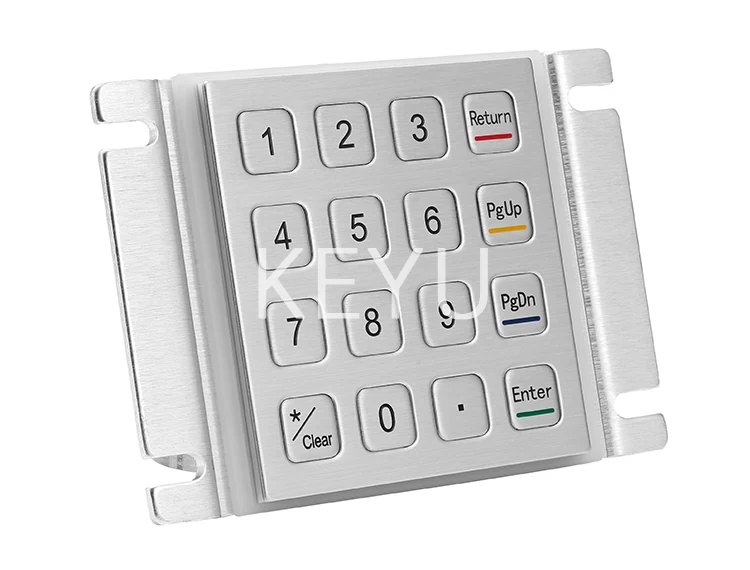

- Front panel 87.5*91.5 mm with overall size 138*95 mm
- IP65 water and vandal proof stainless steel design
- Power supply DC5V±5% with working current under 150mA
- Key trip 0.45mm and operation force 220g±20g
- Durability of at least 2 million operations
- Operation temperature -20℃~55℃ and storage -30℃~85℃
Specifications
| Keys | 16 |
|---|---|
| Front Panel | 87.5*91.5 mm |
| Overall Size | 138*95 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB，PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 220g±20g |
| Durability | ≥2 million |
| Packing Dim | 160 *160*60 mm |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- Stainless steel buttons
- Stainless steel front panel
Manufacturing Process
- Panel forming from stainless steel sheet
- CNC machining of the 16 key apertures
- Laser or etching procedure for key labelling
- Sealing and gasket fitting to IP65
- Interface harness assembly
- Ingress and function testing
Quality Control
- IP65 water and dust ingress verification
- Operation force sampling against 220g±20g
- Durability cycling toward the 2 million operation rating
- Panel dimension check against 87.5*91.5 mm
- Interface test on the ordered USB, PS/2 or RS232 output
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Custom 16 key layout at no layout charge
- Laser or etching procedure for key labelling
- Interface chosen from USB, PS/2 or RS232
- Panel outline adapted to an existing fascia cutout
- Legend symbols for local market requirements
How It Compares
| Full metal keyboards | A 16 key pad needs only an 87.5*91.5 mm front panel on a crowded fascia |
|---|---|
| Plastic numeric keypads | Stainless steel water and vandal proof construction survives street installation |
| Single interface keypads | USB, PS/2 and RS232 are all available from the same model |
Use Guide
- Cut the fascia to suit the 87.5*91.5 mm front panel and 138*95 mm overall size
- Select USB, PS/2 or RS232 at order stage
- Provide DC5V±5% and confirm the port supplies under 150mA
- Keep operation within -20℃~55℃
- Check gaskets after service to maintain the IP65 rating
Questions About This Model
How many keys does KY2088B have?
16 keys in a compact numeric layout.
What are the panel dimensions?
Front panel 87.5*91.5 mm with an overall size of 138*95 mm.
What is the operation force?
220g±20g with a key trip of 0.45mm.
Which interfaces are supported?
USB, PS/2 or RS232.
What approvals does it carry?
RoHS, IP65, FCC and CE.
What are the packing dimensions?
160 *160*60 mm.
Request A Quote On KY2088B
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
