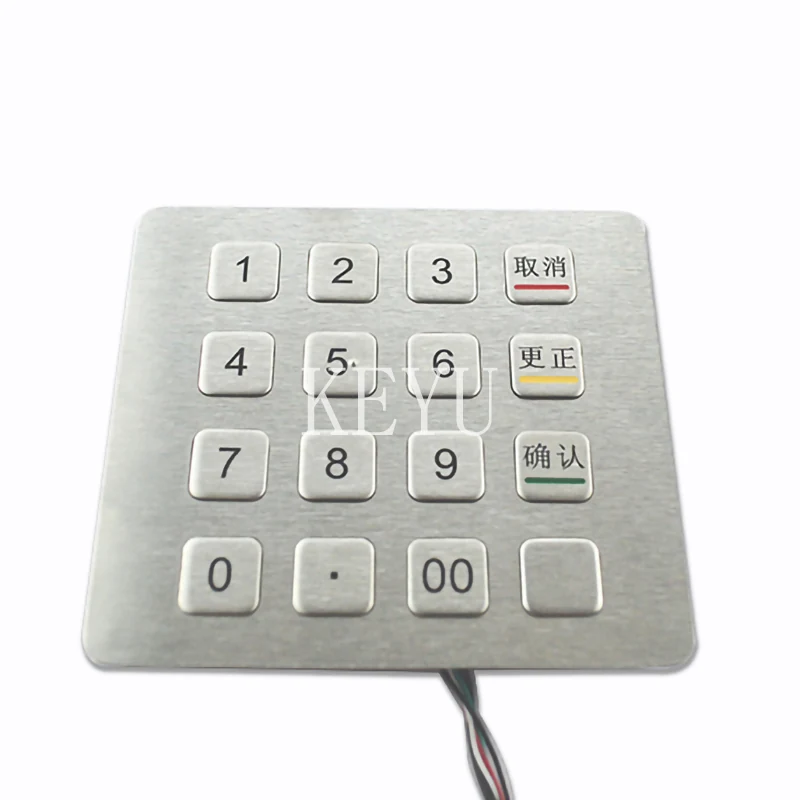

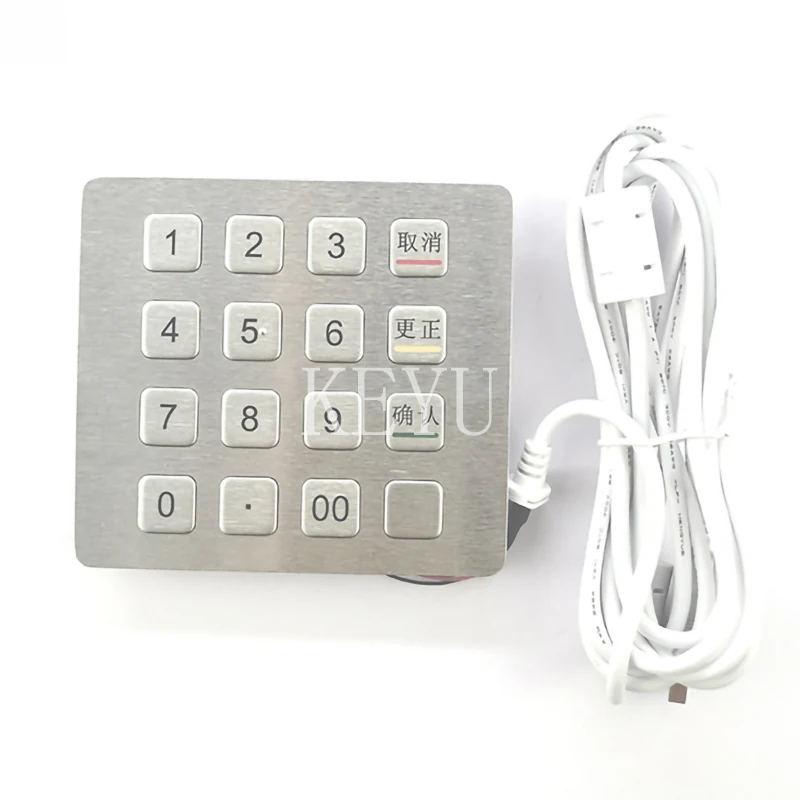

KY2088B-02 16 Keys Panel Mounted Metal Keypad
KY2088B-02 is a 16 keys panel mounted keypad built from SUS304 brushed stainless steel for equipment that only needs numeric and function entry.
Product Overview
KY2088B-02 is a 16 keys panel mounted keypad built from SUS304 brushed stainless steel for equipment that only needs numeric and function entry. Etched key content is customized, so the same hardware serves door entry, machine selection or code input. At 0.35KG net weight it drops into a slim fascia without extra bracing.
- 16 key field keeps the cutout small on space-limited fascias
- Etched key content is customized, so one tool covers several product variants
- 3N ± 10% key strength resists accidental activation by brushing hands
- SUS304 panel described as anti-riot and anti-corrosion for public installations
- Durability >2 million suits high-traffic entry points
- Rear or front mounting fits both new designs and retrofits
Application Scenarios
- Door entry and access control panels
- Machine mode and program selection consoles
- Car park and gate payment terminals
- Elevator and lobby call stations
- Utility cabinets requiring a code entry pad
Who It Is For
- Access control equipment manufacturers
- Panel builders integrating a compact code pad
- Machine builders needing a rugged selection keypad
- Retrofit contractors replacing damaged plastic keypads
Problems It Solves
- Plastic keypads on outdoor doors crack and lose their legends
- Silk-screened numbers wear away under constant fingertip contact
- Loose keypads invite tampering at unattended entrances
- Light keys cause false entries when users lean on the panel
Technical Features
- 16 keys in a panel mounted SUS304 layout
- Button silk screen etching customized to customer artwork
- Key size 14*14*1.5mm with key trip 0.45mm
- Key strength 3N ± 10%
- Power supply 5V±5% and working current <150mA
- USB, PS/2 and RS232 interface support
- Net weight 0.35KG and gross weight 0.4KG
Specifications
| Key count | 16 keys |
|---|---|
| Panel material | SUS304 brushed stainless steel |
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Interface | USB / PS/2 / RS232 |
| Key size | 14*14*1.5mm |
| Key trip | 0.45mm |
| Key strength | 3N ± 10% |
| Mounting way | Rear mounting or front mounting |
| Net weight | 0.35KG |
| Gross weight | 0.4KG |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel keycaps
Manufacturing Process
- Blanking and punching of the 16 key apertures
- Brushing of the panel and keycap faces
- Etching of the customer key content
- Switch layer lamination and panel closure
- Continuity and keymap testing
Quality Control
- Key strength sampled against 3N ± 10%
- All 16 key positions verified for correct output
- Etch depth and legibility inspected under raking light
- Weight and fit checked against the 0.35KG net figure
Customisation Options
- Etched key content and symbols to customer artwork
- Key legend language and numbering scheme
- Interface built for USB, PS/2 or RS232
- Rear or front mounting hardware
- Panel outline adapted to an existing cutout
How It Compares
| Plastic 16 key module | Etched SUS304 keeps legends readable after years of fingertip wear that removes printed plastic markings |
|---|---|
| Full metal keyboard | A 16 key field needs far less fascia area when only codes or selections are entered |
| Touch keypad | Mechanical keys with 3N ± 10% strength give physical feedback for gloved or cold-weather users |
Use Guide
- Match the panel cutout to the supplied outline before choosing mounting direction
- Supply 5V±5% and allow for working current under 150mA
- Send key legend artwork before production so etching is included
- Operate within -10℃~45℃ and store within -30℃~85℃
- Clean along the brush grain to avoid cross scratches
Questions About This Model
How many keys does it have?
16 keys.
Can we change what is on the keys?
Yes. Button silk screen etching content is customized according to customer requirements.
How much force is needed to press a key?
Key strength is 3N ± 10% with 0.45mm of travel.
What does it weigh?
Net weight 0.35KG and gross weight 0.4KG.
Which interfaces are supported?
USB, PS/2 and RS232.
Can it be mounted from the front?
Yes, rear mounting and front mounting are both available.
Request A Quote On KY2088B-02
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
