Backlit Keyboard

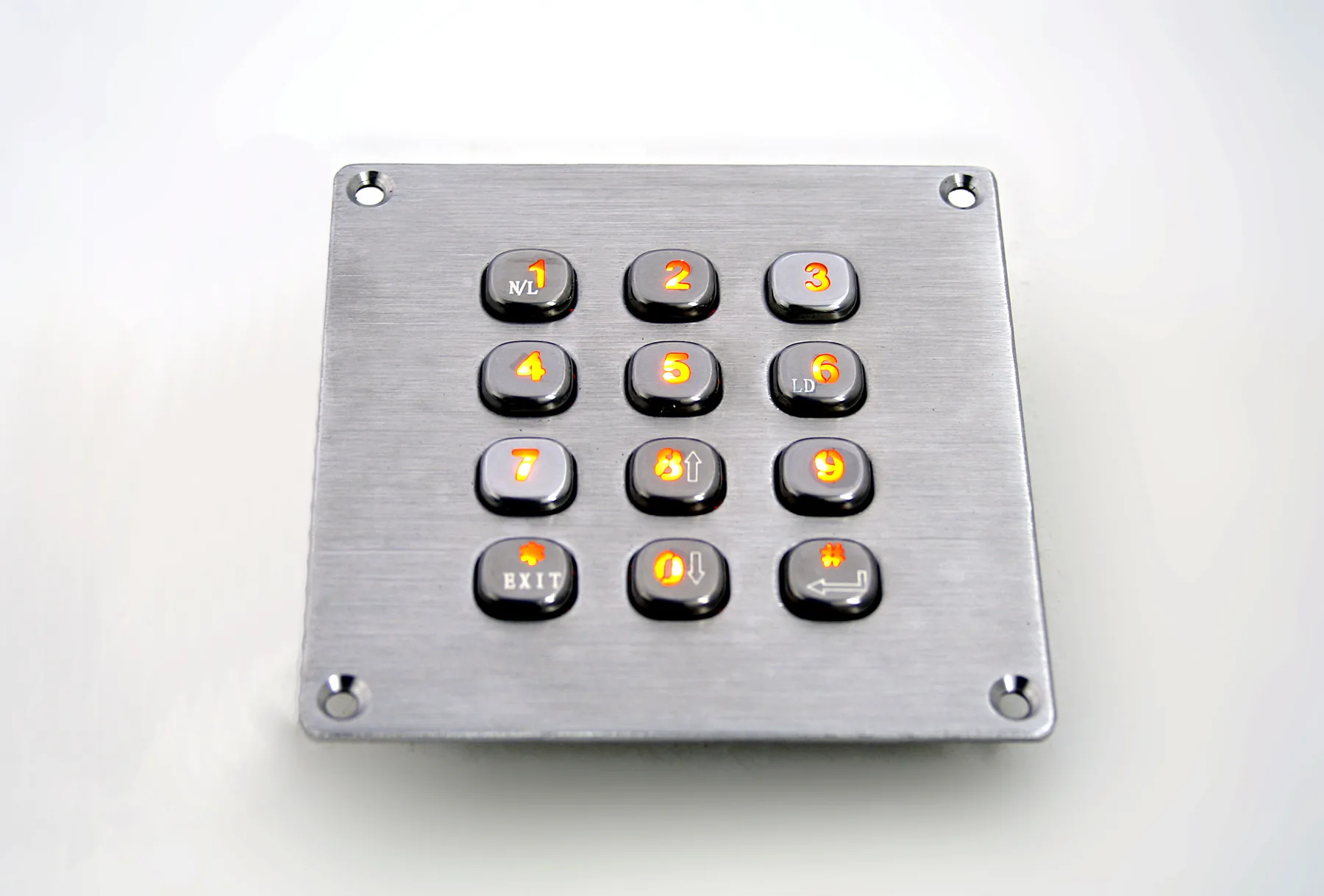

KY2083-LED Square Backlit Metal Keypad
KY2083-LED is a square 83*83 mm backlit keypad for fascias where only a small entry field can be spared. Panel and overall dimensions match, so the unit occupies no more space than its visible face.
Product Overview
KY2083-LED is a square 83*83 mm backlit keypad for fascias where only a small entry field can be spared. Panel and overall dimensions match, so the unit occupies no more space than its visible face. It fits integrators building slim terminals for healthcare, agriculture and oil and gas sites.
- Matching 83*83 mm panel and overall size simplifies tight fascia layouts
- LED illuminated keys readable in shaded plant rooms
- Stainless steel buttons stand up to gloved and tool assisted pressing
- IP65 face allows washdown in food and healthcare settings
- Operating range of -20℃~55℃ covers unheated enclosures
Application Scenarios
- Compact access and PIN entry points
- Healthcare bedside and ward terminals
- Agricultural machinery control boxes
- Oil and gas instrument panels
- Pharmaceutical process stations
Who It Is For
- Terminal designers working with limited fascia area
- Healthcare equipment OEMs
- Agricultural and off-highway machine builders
Problems It Solves
- No room on the fascia for a full numeric block
- Dust and washdown water reaching the electronics behind the cutout
- Keys unreadable in dim plant rooms
Technical Features
- Stainless steel keyboard with LED and water and vandal proof design
- Square 83*83 mm panel with no overhanging flange
- DC5V±5% supply, working current below 150mA
- USB, PS/2 and RS232 interfaces
- Durability of 2 Million actuations
- Rear or front mounting
Specifications
| Front Panel | 83*83 mm |
|---|---|
| Overall Dimension | 83*83 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2, RS232 |
| Durability | ≥ 2Million |
| Packing Dimension | 160*160*60mm |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
- LED backlight layer
Manufacturing Process
- Blanking of the 83*83 mm square panel
- CNC key aperture machining
- Laser or etching of legends
- LED layer and gasket assembly
- Final brushing and electrical test
Quality Control
- Dimensional check of the square 83*83 mm outline
- Sealed face ingress test
- Actuation sampling to the 2 Million rating
- Backlight continuity check
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the square field
- Laser or etched symbols and language sets
- Interface selected from USB, PS/2 or RS232
- Front or rear mounting preparation
How It Compares
| KY2120-LED | The square 83*83 mm format suits fascias too narrow for a 120*74 mm panel |
|---|---|
| Plastic PIN pad | Stainless construction survives public sites where moulded pads are levered off |
Use Guide
- Cut the fascia to the 83*83 mm outline with no flange allowance
- Select rear mounting where the outer face should sit flush
- Provide DC5V±5% at under 150mA
- Wipe the face clean rather than scrubbing the etched legends
Related Products
Questions About This Model
Does the body extend beyond the visible panel?
No. Front panel and overall dimensions are both 83*83 mm.
Is the key count fixed?
The compact layout is customised free of charge.
What supply does it need?
DC5V±5% with working current below 150mA.
How durable are the keys?
Durability is rated at 2 Million actuations.
Which systems are supported?
Windows XP, Windows 7, Windows 8, Linux, Ubuntu and Android.
Request A Quote On KY2083-LED
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
