KY2070 Vandal Proof Metal Keypad for Parking and Ticketing

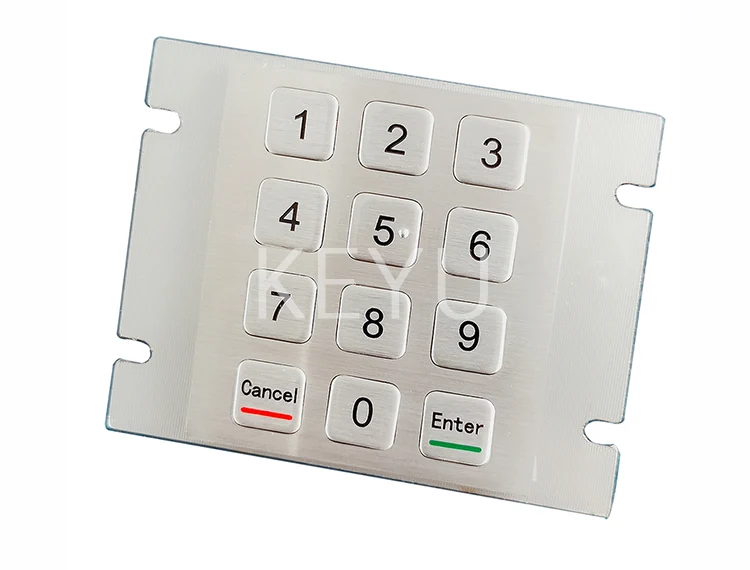

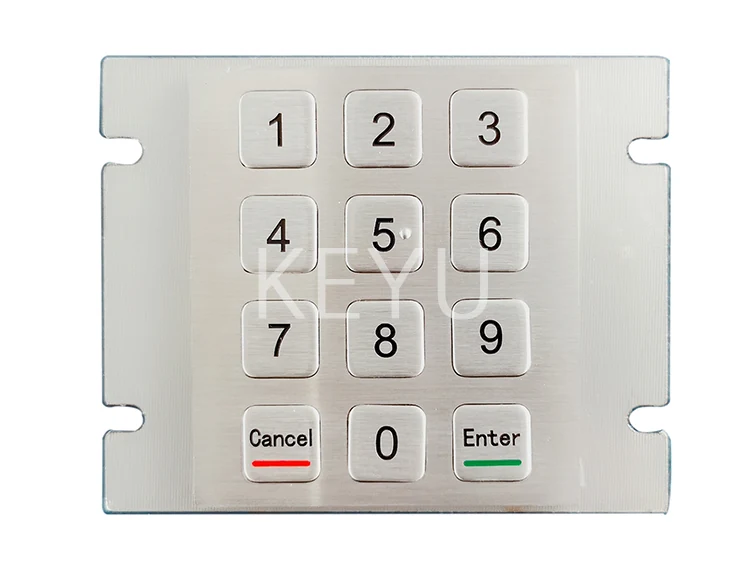

KY2070 is a small vandal proof metal keypad with a 70*80 mm front panel and 105*85 mm overall body, intended for parking columns, ticket vending machines and industrial control equipment.
Product Overview
KY2070 is a small vandal proof metal keypad with a 70*80 mm front panel and 105*85 mm overall body, intended for parking columns, ticket vending machines and industrial control equipment. Stainless steel buttons with a 0.45mm key trip and 220g±20g operation force give a light, short action in a compact numeric field. It works over USB, PS/2 or RS232 and is supported on Windows, Linux, Ubuntu and Android.
- Compact 70*80 mm front panel for narrow parking and ticketing columns
- RS232 option alongside USB and PS/2 for embedded controllers with no USB host
- Durability of ≥2 million operations on stainless steel buttons
- Light 220g±20g operation force with a short 0.45mm key trip
- IP65 approval with RoHS, FCC and CE
- Driver-free use across Window XP, Window 7, Window 10, Linux, Ubuntu and Android
Application Scenarios
- Kiosk terminals with numeric entry only
- Parking solution entry and exit columns
- Industrial control equipment panels
- Ticket vending machines on station platforms
- Outdoor terminals operating from -20℃ to 55℃
Who It Is For
- Parking system manufacturers
- Ticket vending machine OEMs
- Industrial control equipment builders
- Integrators needing a serial keypad rather than USB
Problems It Solves
- Full keyboards that do not fit a narrow column fascia
- Embedded boards that expose RS232 but no USB host
- Keypads destroyed by weather or deliberate impact at unattended sites
- Driver support across mixed Windows, Linux and Android estates
- Legend wear on high-use numeric keys
Technical Features
- Vandal proof design with stainless steel buttons
- Key trip 0.45mm with operation force 220g±20g
- USB, PS/2 or RS232 interface options
- DC5V±5% supply with working current under 150mA
- Durability ≥2 million operations
- Operation temperature -20℃~55℃, storage temperature -30℃~85℃
- Packing dimension 160 *160*60 mm for shipping planning
Specifications
| Front Panel | 70*80 mm |
|---|---|
| Overall | 105*85 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 220g±20g |
| Durability | ≥2 million |
| Packing Dim | 160 *160*60 mm |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Stainless steel key buttons
- Metal keypad panel
Manufacturing Process
- Sheet-metal forming of the 70*80 mm face and 105*85 mm body
- CNC machining of key apertures
- Laser or etching of key legends
- Vandal proof assembly and gasket fitting
- Interface build for USB, PS/2 or RS232 and function test
Quality Control
- Key trip measurement at 0.45mm
- Operation force sampling to 220g±20g
- Enumeration test on each ordered interface including RS232
- IP65 supporting seal inspection
- Cross-platform check on Windows, Linux and Android hosts
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching key labeling
- Interface selected as USB, PS/2 or RS232
- Panel fixing pattern to your column drawing
- Key legend artwork supplied by the customer
How It Compares
| KY2122 metal keypad | KY2070 is smaller at a 70*80 mm front panel, where KY2122 offers 120*90 mm for larger key fields. |
|---|---|
| USB-only numeric keypad | KY2070 also offers RS232, which suits embedded controllers without a USB host port. |
| Plastic outdoor keypad | A vandal proof metal build with an IP65 approval survives forecourt and parking exposure that cracks plastic. |
Use Guide
- Cut the fascia to the 70*80 mm front panel and allow for the 105*85 mm body
- Select USB, PS/2 or RS232 at order stage as the harness differs
- Confirm the host offers DC5V±5% at under 150mA
- Keep the unit inside -20℃~55℃ in service
- Plan shipping around the 160 *160*60 mm packing dimension
Questions About This Model
Does it support serial connection?
Yes, the interface can be USB, PS/2 or RS232.
What size is the panel?
Front panel 70*80 mm with an overall body of 105*85 mm.
Which operating systems are listed?
Window XP, Window 7, Window 10, Linux, Ubuntu and Android.
What is the key durability?
Durability is ≥2 million operations.
What approvals does it carry?
RoHS, IP65, FCC and CE.
How light are the keys?
Operation force is 220g±20g with a 0.45mm key trip.
Request A Quote On KY2070
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
