KY-PC-NT3-LED Backlit Stainless Steel Keyboard With Touchpad

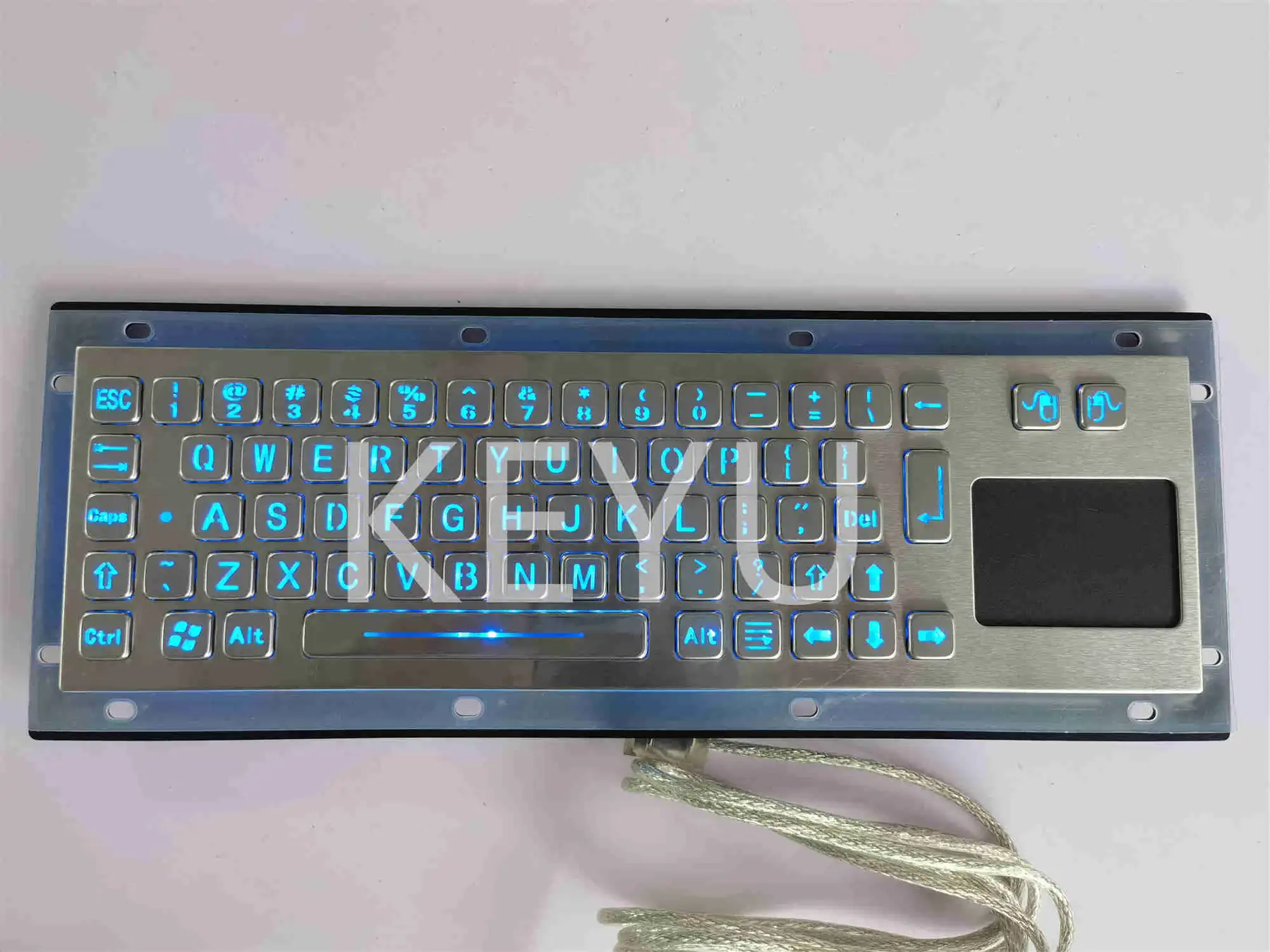

KY-PC-NT3-LED is an LED backlit stainless steel keyboard with an integrated touchpad, sized 330*100 mm at the front panel and 354*124 mm overall.
Product Overview

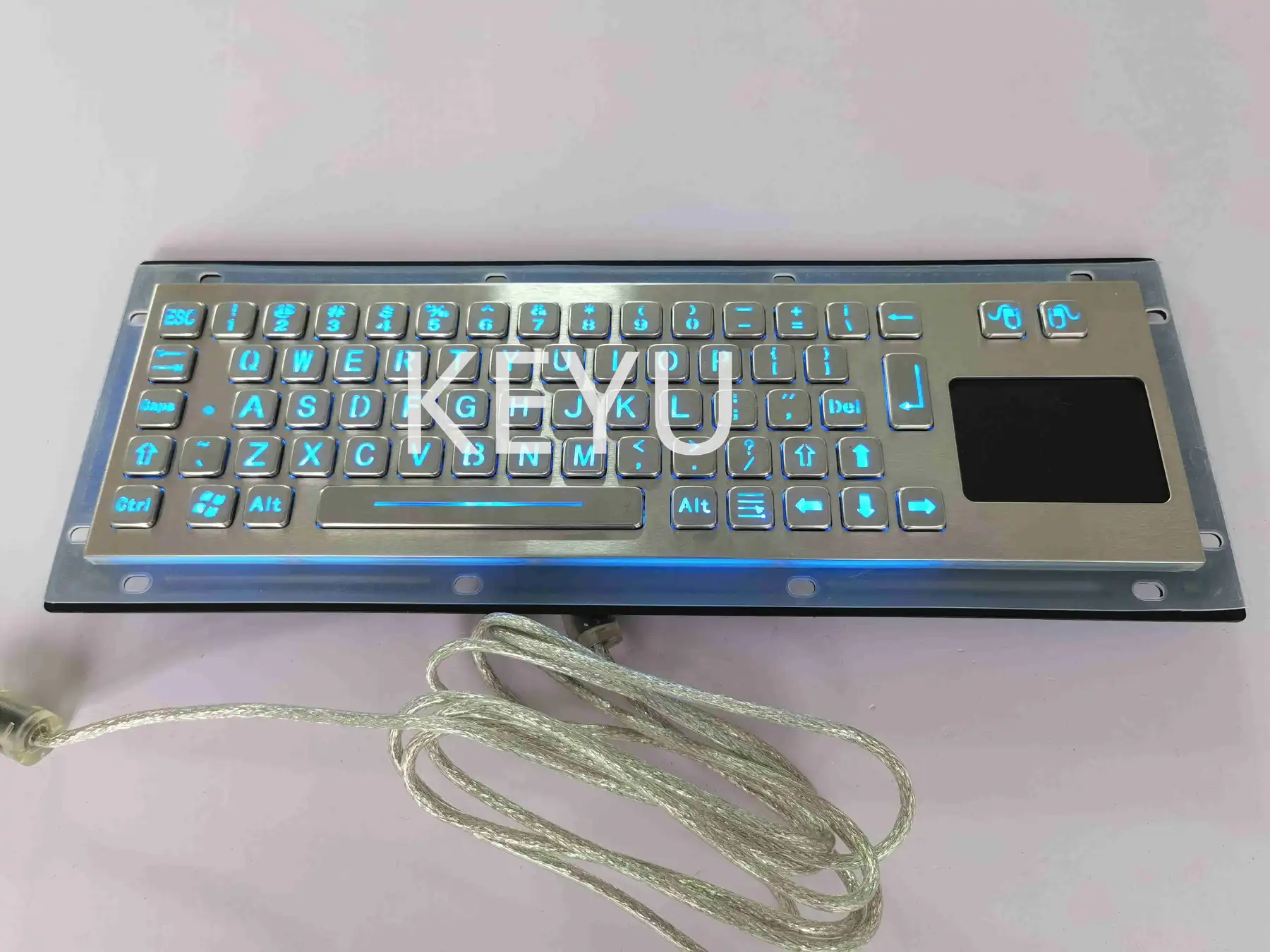

KY-PC-NT3-LED is an LED backlit stainless steel keyboard with an integrated touchpad, sized 330*100 mm at the front panel and 354*124 mm overall. It gives kiosk and terminal builders a single sealed input surface for typing and cursor control in places where a plastic keyboard would be pried apart or washed out. The 67 key layout can be changed for your application at no layout charge.
- Backlighting keeps the legends readable in dim lobbies and at night without adding a separate light source to the enclosure
- One cutout carries both text entry and cursor control because the 60x44mm touchpad sits inside the same panel
- IP65 sealing lets operators hose down or wipe the surface between users in food service and medical settings
- Stainless steel keys and panel resist prying and knife damage on street facing terminals
- Rear mounting or front mounting suits both new enclosure designs and retrofits into an existing cutout
Application Scenarios
- Self service kiosk terminals in transit halls and shopping centres
- Medical equipment consoles that are wiped down between patients
- Industrial facility control cabinets on the plant floor
- Prison and secure facility terminals exposed to deliberate abuse
- Oil field and outdoor equipment where operating temperature runs from -20 to 55 degrees
- Financial and communication equipment cabinets
Who It Is For
- Kiosk OEMs integrating a keyboard and pointer into one front panel
- Medical device builders needing a cleanable input surface
- Industrial automation integrators specifying panel mounted input
- Security and corrections systems contractors
Problems It Solves
- Plastic membrane keyboards fail quickly on public terminals that are hit and scraped
- Separate keyboard and mouse modules need two cutouts and two cable runs
- Unlit panels are unusable in low light kiosks and night shift sites
- Liquids and dust enter unsealed keyboards in food service and outdoor cabinets
Technical Features
- 67 key stainless steel matrix with 2mm key trip and 280g operation force
- LED backlighting across the key field
- Integrated touchpad measuring 60x44mm for cursor control
- USB interface with DC5V power supply and working current under 150mA
- Durability rated at 2 million operations per key
- Storage temperature range of -30 to 85 degrees for shipping and cold warehousing
- Key labelling by laser or etching procedure depending on the finish you need
Specifications
| Front Panel | 330*100 mm |
|---|---|
| Overall Size | 354*124 mm |
| Keys | 67 |
| Touchpad Diameter | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Operation Temperature | -20℃~55℃ |
| Mounting Way | Rear mounting or Front mounting |
Materials
- Stainless steel key caps
- Stainless steel front panel
Manufacturing Process
- Panel blanking and forming from stainless steel sheet
- CNC machining of key apertures and touchpad opening
- Laser marking or chemical etching of key legends
- Backlight assembly and light guide fitting
- Sealing and gasket installation to IP65
- Final electrical test over USB
Quality Control
- Key force and travel sampling against the 280g and 2mm targets
- Durability cycling to confirm the 2 million operation rating
- Water and dust ingress check on the sealed panel
- Backlight uniformity inspection across all 67 keys
- Full function test of keyboard and touchpad before packing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Customized key layout at no layout charge
- Choice of laser or etching for key legends
- Front or rear mounting hole pattern to match your enclosure
- Panel dimensions adapted to an existing cutout
- Function and combination key mapping
How It Compares
| Plastic membrane kiosk keyboard | Stainless steel keys and panel survive prying and impact where a membrane overlay tears |
|---|---|
| Separate metal keyboard plus external mouse | The 60x44mm touchpad is built into the same 354*124 mm panel so you cut one opening instead of two |
| Unlit metal keyboard | LED backlighting makes the legends readable in unlit kiosks and on night shifts |
Use Guide
- Cut the enclosure opening to suit the 330*100 mm front panel before fitting
- Choose rear mounting for a flush exterior or front mounting for retrofit work
- Supply DC5V and confirm the USB host draws under 150mA
- Keep the unit within -20 to 55 degrees during operation
- Clean the sealed surface with a damp cloth rather than a pressure jet at close range
Related Products
Questions About This Model
How many keys does the KY-PC-NT3-LED have?
It has 67 keys, and the layout can be customized for free.
What are the panel dimensions?
The front panel is 330*100 mm and the overall size is 354*124 mm.
Is a pointing device included?
Yes, a touchpad measuring 60x44mm is integrated into the panel.
What interface and power does it use?
USB interface with a DC5V±5% supply and working current under 150mA.
What approvals does it carry?
RoHS, IP65, FCC and CE.
Can it be mounted from the front?
Yes, both rear mounting and front mounting are supported.
