Black Keyboard

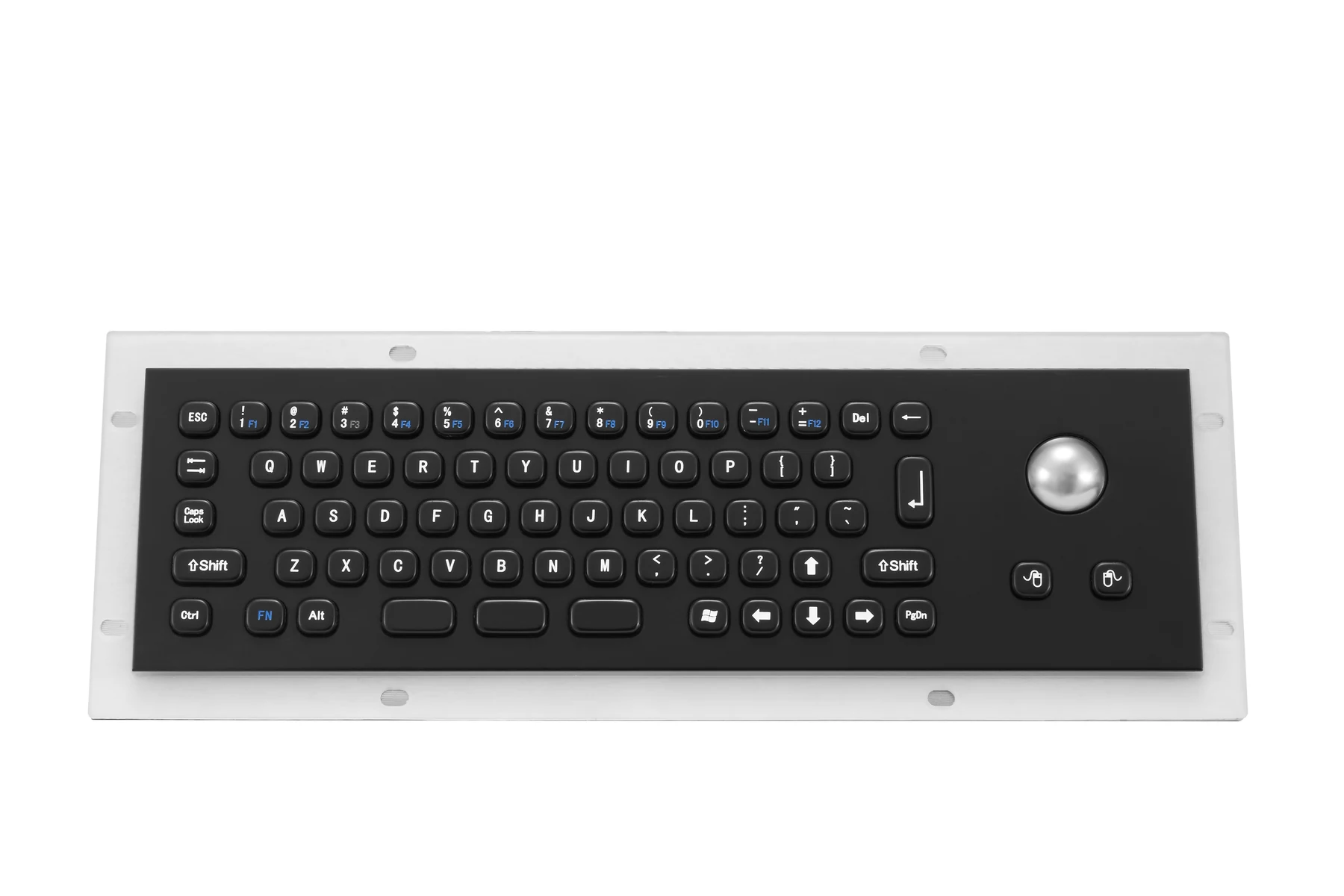

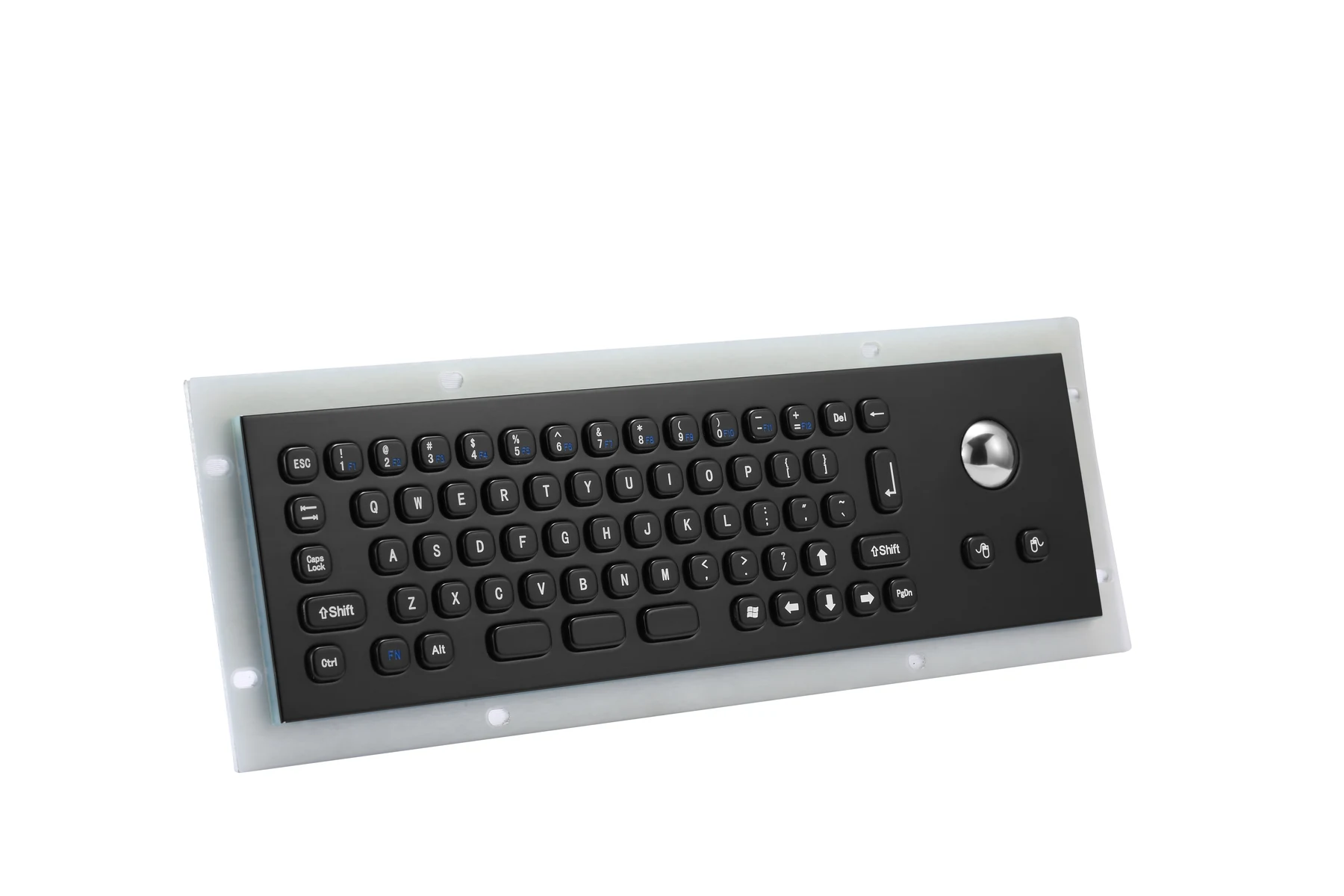

KY-PC-MINI-T-BL Compact Stainless Steel Keyboard With Trackball
KY-PC-MINI-T-BL is a compact panel mount keyboard with an integrated trackball, built for enclosures where there is no room for a separate mouse.
Product Overview
KY-PC-MINI-T-BL is a compact panel mount keyboard with an integrated trackball, built for enclosures where there is no room for a separate mouse. The 293*87 mm front panel keeps the footprint tight while a 3mm aluminum back panel carries the vandal proof structure. It suits kiosks, oil field equipment and prison installations that hold RoHS, IP65, FCC and CE requirements.
- Keyboard and pointing device in one 293*87 mm front panel, removing the separate mouse cutout
- 3mm aluminum back panel gives the assembly its vandal proof structure
- RoHS, IP65, FCC and CE approvals cover common tender requirements
- Durability ≥2Million keeps unattended terminals in service between visits
- Rear mounting or front mounting suits both new cabinets and retrofits
- Layout can be customized for free, so national key sets are not a cost line
Application Scenarios
- Interactive kiosks in transit halls and retail
- Oil field control equipment exposed to dust and hydrocarbons
- Medical equipment consoles needing wipe-down surfaces
- Industrial facility operator stations
- Prison and secure facility terminals
Who It Is For
- Kiosk OEMs with shallow fascia depth
- Oil and gas equipment integrators
- Medical device cabinet builders
- Secure facility contractors
Problems It Solves
- Separate mouse hardware that gets stolen or torn off in public areas
- Wide keyboards that will not fit a narrow fascia
- Plastic backings that flex and crack under impact
- Procurement blocked by missing RoHS, FCC or CE documentation
Technical Features
- Stainless steel panel mount keyboard with integrated trackball
- Laser procedure for key labeling when the letter color is black, with etching possible for all colors
- 3mm aluminum back panel in a vandal proof design
- Power supply DC5V±5% with working current <150mA
- Operation force <2N at 120g±15g
- Operation temperature -10℃~55℃ and storage temperature -30℃~85℃
- Compatible with Window XP, Window 7, Window 8, Linux, Ubuntu and Android
Specifications
| Front Panel | 293*87 mm |
|---|---|
| Overall | 317*111 mm |
| Back Panel | 3mm aluminum |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Operation Force | <2N, 120g±15g |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -10℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel and keys
- 3mm aluminum back panel
Manufacturing Process
- Sheet metal blanking and panel forming of the 293*87 mm face
- CNC machining of the trackball aperture and key field
- Laser labeling for black legends or etching for other colors
- Trackball module fitting and alignment
- Back panel riveting and IP65 sealing
Quality Control
- IP65 water ingress check on the sealed assembly
- Operation force sampling against the <2N and 120g±15g figures
- Trackball tracking test across the full ball travel
- Current draw verified below 150mA at DC5V±5%
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization including national key sets
- Laser labeling in black or etching in any color
- Choice of rear mounting or front mounting hardware
- USB or PS/2 cable and connector selection
- Panel outline adapted to an existing 317*111 mm cutout
How It Compares
| Keyboard plus separate mouse | The trackball sits inside the same 293*87 mm panel, so there is nothing loose for a public user to remove |
|---|---|
| Full size metal keyboard | The compact layout fits fascias that cannot accept a full width panel while keeping IP65 sealing |
Use Guide
- Check the 317*111 mm overall dimension against the cabinet clearance, not only the front panel size
- Decide rear or front mounting before cutting the fascia
- Specify black legends if laser labeling is preferred, otherwise etching covers all colors
- Keep the terminal inside -10℃~55℃ during operation
Related Products
Industrial Metal USB LED Backlit Keyboard KY-PC-F4-LED-BL
View Specification
KY-PC-DT-BL Panel Mount Stainless Steel Keyboard With Trackball
View Specification
KY-PC-NT340-BL Black Metal Keyboard With Touchpad Mouse
View Specification
KY-PC-D-BL Black 66 Key Panel Mount Metal Keyboard
View SpecificationQuestions About This Model
What are the dimensions of KY-PC-MINI-T-BL?
Front panel 293*87 mm and overall 317*111 mm.
Which approvals does it carry?
RoHS, IP65, FCC and CE.
How is the trackball protected?
It sits in the stainless panel with a 3mm aluminum back panel in a vandal proof design.
Can legends be printed in color?
Laser labeling is used when the letter color is black; etching is possible for all colors.
What is the rated durability?
≥2Million operations.
Is the layout fixed?
No, the layout can be customized for free.
Request A Quote On KY-PC-MINI-T-BL
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
