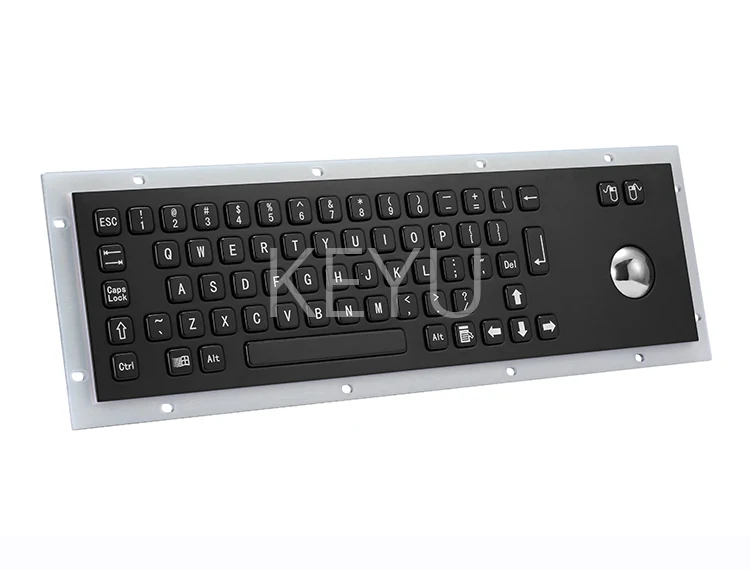

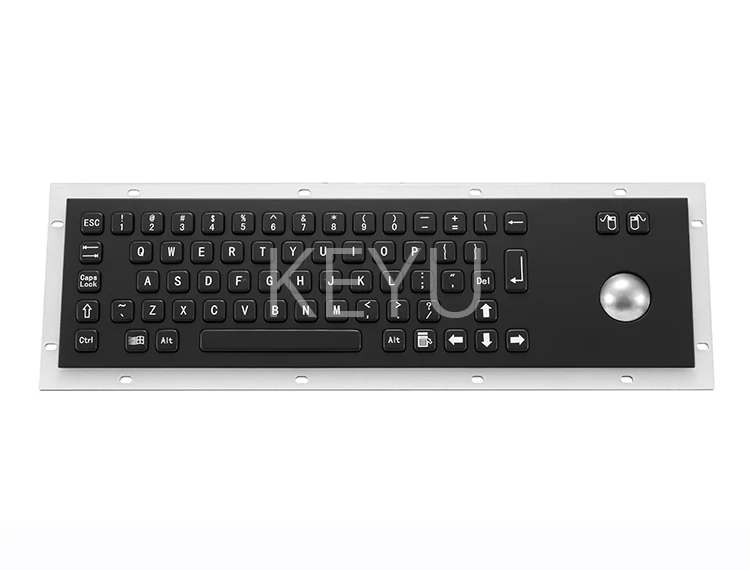

KY-PC-D-BL Black 66 Key Panel Mount Metal Keyboard
KY-PC-D-BL is a 66 keys stainless steel panel mount keyboard finished in black as an embedded device for self service terminals.
Product Overview
KY-PC-D-BL is a 66 keys stainless steel panel mount keyboard finished in black as an embedded device for self service terminals. Anti riot anti corrosion 304 stainless steel keys sit over a 3mm aluminum alloy back panel and the layout plus function or combination keys can be customized. It is used in financial equipment communications equipment and military equipment.
- Black finish blends into dark fascias instead of standing out
- 66 keys stainless steel panel mount layout in an embedded device format
- 3mm aluminum alloy back panel resists prying and flexing
- Working current under 50mA is the lowest draw in this keyboard family
- Customized function keys or combination keys for application shortcuts
- Light 1.5N plus or minus 10 percent operation force for sustained entry
Application Scenarios
- Financial equipment and banking terminals
- Communications equipment racks
- Military equipment operator stations
- Self service terminal equipment
- Kiosk fascias with dark styling
- Embedded control panels
Who It Is For
- Financial terminal manufacturers
- Communications equipment builders
- Defence equipment integrators
- Self service terminal OEMs
Problems It Solves
- Bright steel keyboards clash with dark terminal fascias
- Thin back panels allow the keyboard to be levered out
- Power budgets are tight on embedded terminal boards
- Application shortcuts need dedicated or combination keys
Technical Features
- 66 keys with key size 14*14*4.5/14*28*4.5/100*14*4.5mm
- Key trip 1.5mm with operation force 1.5N plus or minus 10 percent
- Power supply 5V plus or minus 5 percent with working current under 50mA
- Durability above 2 millions operations
- Mounting from bottom to top with back panel fixing
- Net weight 1.55Kg and gross weight 1.75Kg
- Operation temperature -10 to 45 degrees C and storage -30 to 85 degrees C
Specifications
| Keys | 66 keys |
|---|---|
| Power supply | 5V±5% |
| Working current | <50mA |
| Durability | >2 millions |
| Interface | USB / PS/2 |
| Key size | 14*14*4.5/14*28*4.5/100*14*4.5mm |
| Key trip | 1.5mm |
| Operation force | 1.5N ± 10% |
| Mounting way | From bottom to top, back panel fixing |
| Back panel | 3mm Aluminum alloy |
| Net weight | 1.55Kg |
| Gross weight | 1.75Kg |
Materials
- 304 stainless steel keys
- 3mm aluminum alloy back panel
- Black finished panel
Manufacturing Process
- Panel forming and black finishing
- CNC punching of the 66 key apertures
- 3mm aluminum alloy back panel machining
- Key legend marking on the black face
- Assembly for bottom to top back panel fixing
- USB and PS/2 interface test
Quality Control
- Operation force checked at 1.5N plus or minus 10 percent
- Current draw confirmed under 50mA
- Black finish adhesion and colour consistency inspection
- Weight verified against 1.55Kg net
- Life sampling above 2 millions operations
Customisation Options
- Customized layout of the 66 key field
- Customized function keys or combination keys
- USB or PS/2 output
- Key legend content on the black panel
- Back panel fixing pattern to the host
How It Compares
| Brushed steel keyboards | A black design matches dark fascias used in financial and military equipment |
|---|---|
| Thin panel keyboards | A 3mm aluminum alloy back panel stiffens the assembly against levering |
| KY-PC-NT-BL | 66 keys with combination key customization rather than the 330*100 mm trackball layout |
Use Guide
- Fix from bottom to top using the back panel
- Allow for the 1.55Kg net weight in the fascia support
- Connect over USB or PS/2
- Operate between -10 and 45 degrees C
- Agree combination key definitions before production
Related Products
Industrial Metal USB LED Backlit Keyboard KY-PC-F4-LED-BL
View Specification
KY-PC-DT-BL Panel Mount Stainless Steel Keyboard With Trackball
View Specification
KY-PC-MINI-T-BL Compact Stainless Steel Keyboard With Trackball
View Specification
KY-PC-NT340-BL Black Metal Keyboard With Touchpad Mouse
View SpecificationQuestions About This Model
How many keys does KY-PC-D-BL have?
66 keys.
How is it mounted?
From bottom to top with back panel fixing.
How much current does it draw?
Under 50mA at 5V plus or minus 5 percent.
What is the back panel made from?
3mm aluminum alloy.
Can function keys be customized?
Yes customized function keys or combination keys are available.
What does it weigh?
Net weight 1.55Kg and gross weight 1.75Kg.
