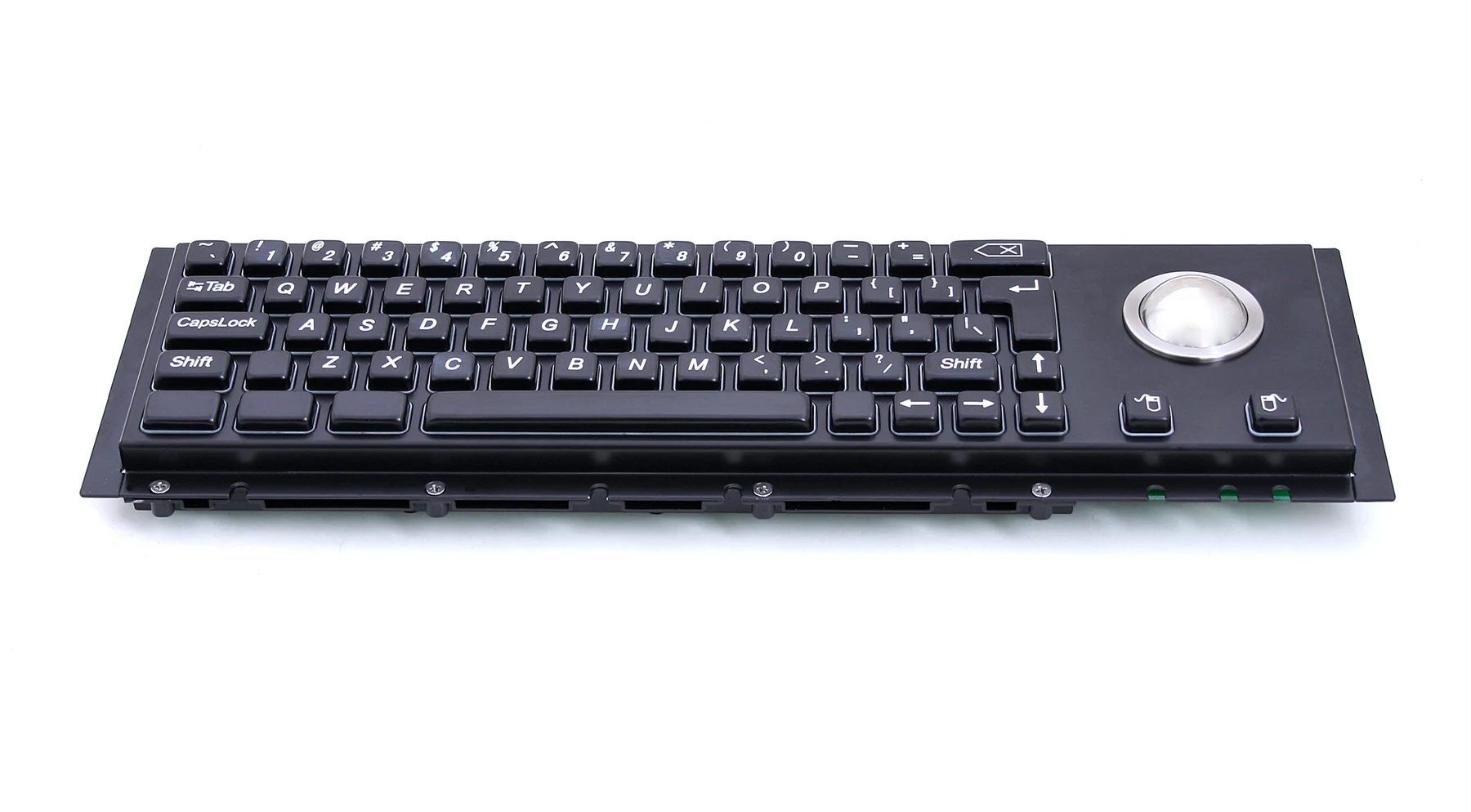

KY-PC-H-BL Panel Mount Keyboard With Trackball
KY-PC-H-BL is a panel mount stainless steel keyboard with an integrated trackball, using a 372*102 mm front panel on a 394*124 mm body. A 3mm aluminum back panel carries the vandal proof structure behind the stainless face.
Product Overview
KY-PC-H-BL is a panel mount stainless steel keyboard with an integrated trackball, using a 372*102 mm front panel on a 394*124 mm body. A 3mm aluminum back panel carries the vandal proof structure behind the stainless face. It is specified for kiosks, secure facilities and food service equipment where the input surface must be part of the door.
- 3mm aluminum back panel gives the assembly rigidity against forced entry
- Trackball built into the same 372*102 mm panel as the keys
- Operation force of <2N 120g±15g for light consistent typing
- IP65 sealing allows washdown in food service areas
- Rear or front mounting to suit existing door cutouts
- Etched lettering available in any colour with laser marking for black
Application Scenarios
- Kiosk solutions with integrated input panels
- Medical equipment front panels
- Industrial facility control doors
- Prison and secure facility terminals
- Food service ordering and preparation stations
- Oil field instrument cabinets
Who It Is For
- Secure facility equipment suppliers
- Kiosk and terminal OEMs
- Food service equipment manufacturers
- Medical equipment builders
Problems It Solves
- Loose keyboards and mice removed or damaged in secure environments
- Thin back panels flexing when the panel is struck
- Colour legends unavailable with laser only marking
Technical Features
- Stainless steel panel mount keyboard with trackball
- 3mm aluminum back panel in a vandal proof design
- Laser marking where the letter colour is black and etching for all colours
- Power supply DC5V±5% with working current below 150mA
- USB and PS/2 interfaces
- Operation force <2N 120g±15g
- Durability of 2Million
Specifications
| Front Panel | 372*102 mm |
|---|---|
| Overall Dimension | 394*124 mm |
| Back Panel | 3mm Aluminum |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Operation Force | <2N 120g±15g |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -10℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel and buttons
- 3mm aluminum back panel
Manufacturing Process
- Stainless panel blanking to 372*102 mm
- CNC machining of the 3mm aluminum back panel
- Laser or etched lettering depending on legend colour
- Trackball module installation
- Panel bonding, sealing and brushing
- Function and force testing
Quality Control
- Back panel thickness verified at 3mm
- Operation force checked against 120g±15g
- IP65 sealing test
- Trackball tracking and button test
- Endurance sampling to 2Million
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the 372*102 mm panel
- Etched colour legends or laser marked black lettering
- Rear or front mounting hardware
- USB or PS/2 cable and length
- Customer artwork on the panel face
How It Compares
| Desktop metal keyboard | The panel mount build makes the keyboard part of the door rather than a loose unit |
|---|---|
| Keyboard with separate trackball panel | One cutout and one cable instead of two reduces door preparation work |
Use Guide
- Cut the door to the 372*102 mm panel and allow for the 394*124 mm body
- Choose rear mounting where the outer face must be flush
- Specify legend colour early as etching is needed for colours other than black
- Supply DC5V±5% over USB or PS/2
- Operate within -10℃~55℃
Related Products
Industrial Metal USB LED Backlit Keyboard KY-PC-F4-LED-BL
View Specification
KY-PC-DT-BL Panel Mount Stainless Steel Keyboard With Trackball
View Specification
KY-PC-MINI-T-BL Compact Stainless Steel Keyboard With Trackball
View Specification
KY-PC-NT340-BL Black Metal Keyboard With Touchpad Mouse
View SpecificationQuestions About This Model
How thick is the back panel?
The back panel is 3mm aluminum.
Can I get coloured lettering?
Etching is possible for all colours while laser marking is used when the letter colour is black.
What is the key force?
Operation force is listed as <2N 120g±15g.
How is it mounted?
Rear mounting or front mounting.
Does it include a pointing device?
Yes, a trackball is built into the panel.
Request A Quote On KY-PC-H-BL
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
