KY-PC-F2-LED Stainless Steel LED Keyboard 392x135mm

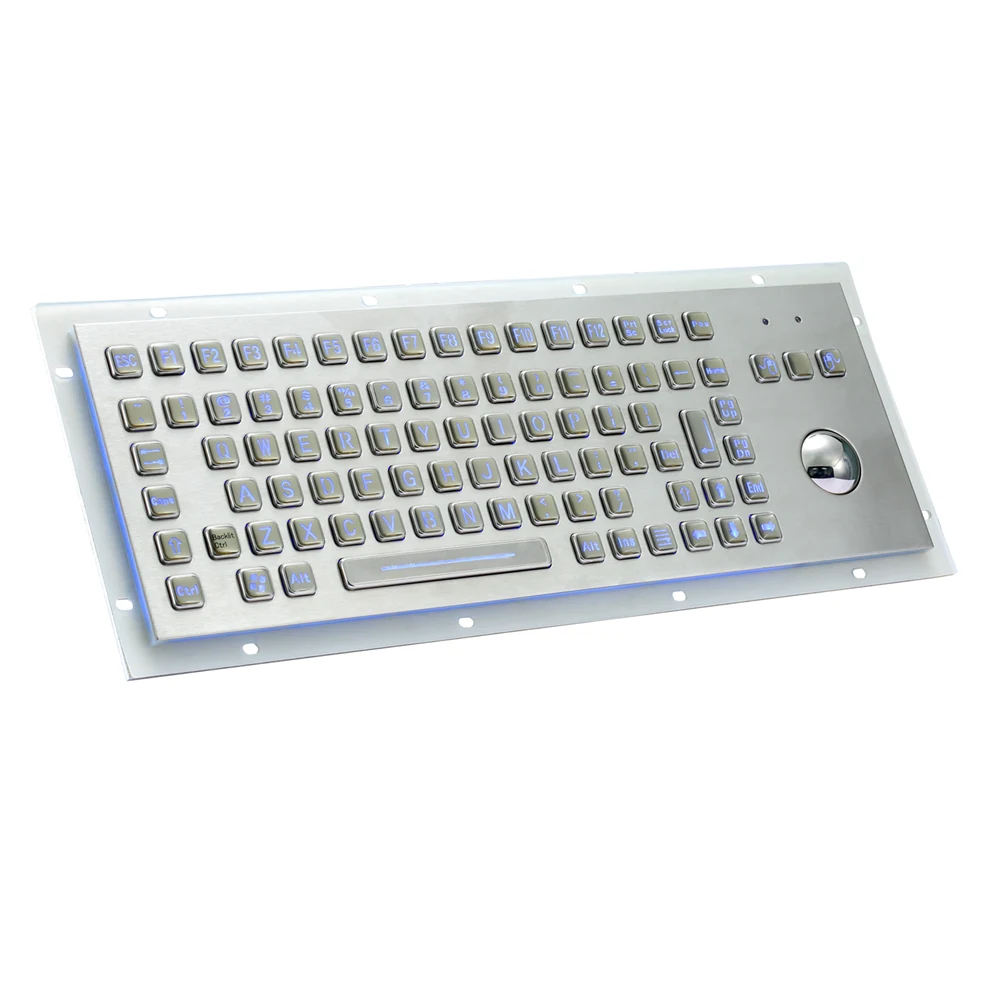

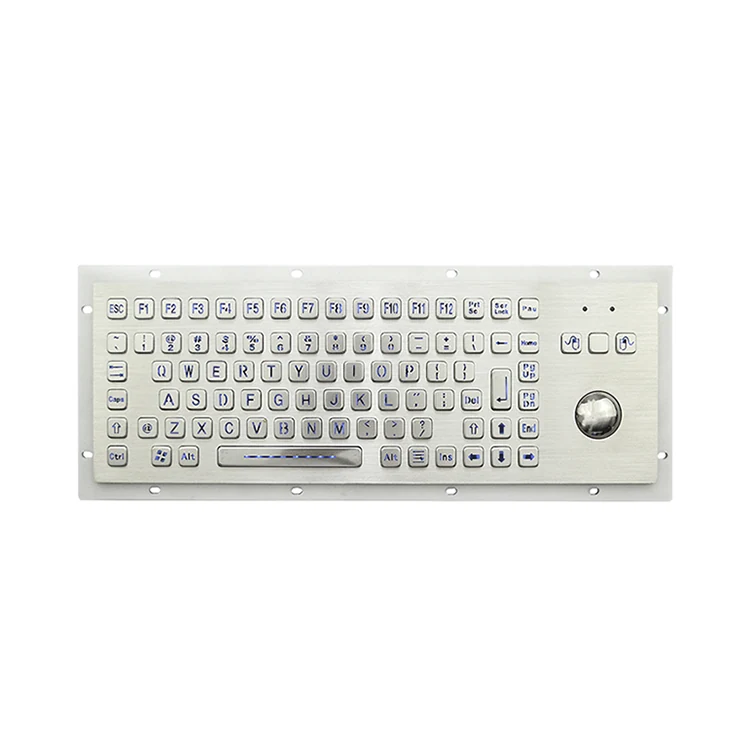

KY-PC-F2-LED is an LED backlit stainless steel keyboard with a 392*135 mm front panel and 416*159 mm overall dimension, carrying ROHS, IP65, FCC and CE approvals.
Product Overview
KY-PC-F2-LED is an LED backlit stainless steel keyboard with a 392*135 mm front panel and 416*159 mm overall dimension, carrying ROHS, IP65, FCC and CE approvals. The water and vandal proof design suits kiosks and vending machines that run unattended around the clock. Key labeling is produced by laser or etching and the compact layout is customized for free.
- LED backlight keeps the layout usable in unattended kiosks after dark
- IP65 approval allows installation where splash and dust reach the fascia
- 392*135 mm front panel with 416*159 mm overall size simplifies cutout planning
- ROHS, FCC and CE approvals support sales into regulated markets
- Laser or etching key labeling matches the contrast you need
- Durability ≥ 2Million supports continuous public operation
Application Scenarios
- Kiosks and vending machines operating overnight
- Self-service terminals in transport and retail
- Industrial automation stations
- Transportation and automotive service points
- Pharmaceutical, medical and healthcare terminals
- Agricultural and industrial equipment consoles
Who It Is For
- Kiosk and vending machine manufacturers
- Self-service terminal integrators
- Medical and pharmaceutical equipment OEMs
- Industrial automation panel builders
Problems It Solves
- Unlit keyboards cause errors on kiosks used at night
- Non-rated keyboards fail when splashed in public locations
- Regulated markets require documented approvals before shipping
- Plastic keyboards are damaged quickly on unattended machines
Technical Features
- Stainless steel keyboard with LED and water and vandal proof design
- Front panel 392*135 mm and overall 416*159 mm
- Power supply DC5V±5% with working current <150mA
- Interface USB, PS/2 and RS232
- Durability ≥ 2Million
- Operating temperature -10℃~55℃
- Packing dimension 160*160*60mm
Specifications
| Front panel | 392*135 mm |
|---|---|
| Overall | 416*159 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2, RS232 |
| Durability | ≥ 2Million |
| Packing dimension | 160*160*60mm |
| Mounting way | Rear mounting or front mounting |
| Operating temperature | -10℃~55℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
| Storage temperature | -30℃~85℃ (relative humidity 5%~90%, atmospheric pressure 60~106Kpa) |
| Compatible systems | Windows XP, 7, 8, Linux, Ubuntu, Android |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel keys
- LED backlight layer
Manufacturing Process
- Sheet-metal forming of the 392*135 mm front panel
- Brushing of the stainless steel surface
- Laser marking or etching of key labels
- LED backlight module assembly
- IP65 sealing of the key field
- Electrical test and approval sampling
Quality Control
- Backlight uniformity checked across the key field
- IP65 sealing verified on assembled units
- Panel dimensions measured against 392*135 mm and 416*159 mm
- Full keymap tested on Windows and Linux hosts
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching key labeling
- USB, PS/2 or RS232 interface build
- Rear or front mounting hardware
- Panel graphics and branding etched to artwork
How It Compares
| Non-backlit metal keyboard | The LED backlight keeps a kiosk usable at night without adding external lighting |
|---|---|
| KY-PC-F1-LED | A larger 392*135 mm front panel provides more key area than the 319*135 mm F1 panel |
| Plastic kiosk keyboard | IP65 rated stainless steel withstands the splash and handling that destroy plastic fascias |
Use Guide
- Cut the fascia to suit the 416*159 mm overall dimension
- Supply DC5V±5% with at least 150mA available
- Choose rear or front mounting before finalising the aperture
- Operate within -10℃~55℃ and store within -30℃~85℃
- Keep the gasket seated to maintain the IP65 rating
Related Products
Questions About This Model
What are the panel dimensions?
Front panel 392*135 mm and overall 416*159 mm.
Which approvals does it carry?
ROHS, IP65, FCC and CE.
Is the keyboard backlit?
Yes, it is a stainless steel keyboard with LED.
Which interfaces are available?
USB, PS/2 and RS232.
Can we change the key layout?
Yes. The compact layout is customized for free, with laser or etching labeling.
What temperature range does it handle?
Operating -10℃~55℃ and storage -30℃~85℃.
Request A Quote On KY-PC-F2-LED
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
