KY-MJ02B Waterproof Outdoor Keypad With 10 Million Cycle Keys

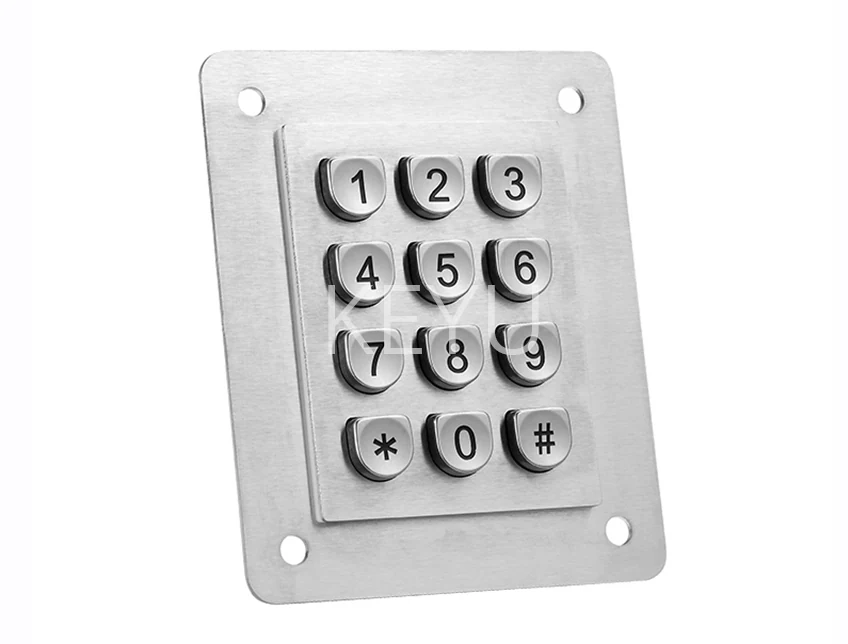

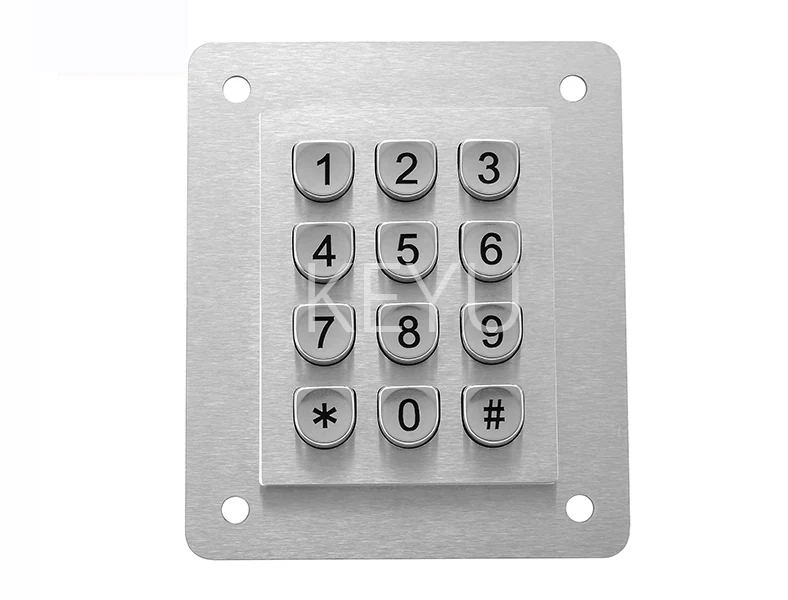

KY-MJ02B is a rugged outdoor keypad with a tall 63.5*82.5 mm front panel on a 95.5*114.5 mm body, resistant to dirt, dust and liquid.
Product Overview
KY-MJ02B is a rugged outdoor keypad with a tall 63.5*82.5 mm front panel on a 95.5*114.5 mm body, resistant to dirt, dust and liquid. Its durability of ≥10Million operations is five times the rating of the general metal keypads in the range, which suits petrol stations and parking venues where the same keys are pressed all day. It is offered with 12 or 16 keys and other key counts can be customized.
- Durability of ≥10Million operations for the highest-traffic outdoor terminals
- Resistant to dirt, dust and liquid with a very rugged vandal proof design
- 63.5*82.5 mm portrait panel suits narrow pump and parking column fascias
- 12,16 keys as standard with other key counts customized
- USB, PS/2 or RS232 so it fits both PC and embedded dispenser controllers
- Working current under 100mA at DC5V±5%
Application Scenarios
- Petrol station pump and payment columns
- Ticket vending machines in open-air locations
- Parking venues entry and exit terminals
- Other outdoor terminal equipment within -20℃~55℃
Who It Is For
- Fuel dispenser manufacturers
- Parking equipment suppliers
- Outdoor ticket machine OEMs
- Operators replacing keypads that wear out within a season
Problems It Solves
- Keypads reaching end of life long before the terminal does
- Dust and rain ingress on unsheltered fascias
- Deliberate impact damage at unattended outdoor sites
- Fixed key counts that do not match the application
- Dispenser controllers that only offer a serial port
Technical Features
- Very rugged vandal proof design resistant to dirt, dust and liquid
- Durability ≥10Million operations
- 12,16 keys with other key counts customizable
- Interface USB, PS/2 or RS232
- Power Supply DC5V±5% with working current under 100mA
- Operation temperature -20℃~55℃ and storage temperature -30℃~85℃
Specifications
| Front Panel | 63.5*82.5 mm |
|---|---|
| Overall | 95.5*114.5 mm |
| Key Count | 12,16 keys, others customized |
| Interface | USB, PS/2, RS232 |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Durability | ≥10Million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Rugged metal keypad panel
- Sealed key modules resistant to dirt, dust and liquid
Manufacturing Process
- Panel forming of the 95.5*114.5 mm outdoor body
- CNC machining of the 12 or 16 key positions
- Laser etching of key legends for outdoor legibility
- Sealing and gasket assembly for dust and liquid resistance
- Interface build for USB, PS/2 or RS232 and endurance sampling
Quality Control
- Endurance sampling against the ≥10Million durability figure
- Dust and liquid resistance inspection of the sealed panel
- Key matrix verification for the ordered 12 or 16 key layout
- Interface test on USB, PS/2 and RS232 as built
- Temperature soak across -20℃~55℃
Customisation Options
- 12,16 keys or another key count on request
- Customized layout available
- Interface set to USB, PS/2 or RS232
- Key legends and symbol set for the application
- Fixing pattern to your column or dispenser drawing
How It Compares
| KY-MJ01B outdoor keypad | KY-MJ02B uses a taller portrait 63.5*82.5 mm face on a 95.5*114.5 mm body, where KY-MJ01B is square at 82.6*82.6 mm. |
|---|---|
| KY2122 metal keypad | KY-MJ02B is rated at ≥10Million operations against the ≥2 million figure of the general metal keypads. |
| Sealed membrane outdoor keypad | A very rugged vandal proof metal build resists impact that a membrane overlay cannot. |
Use Guide
- Cut the fascia to the 63.5*82.5 mm front panel and allow for the 95.5*114.5 mm body
- Specify 12 or 16 keys, or supply a drawing for another count
- Select USB, PS/2 or RS232 to match the dispenser controller
- Provide DC5V±5% at under 100mA
- Keep the terminal within -20℃~55℃ in operation
Industries
Solutions
Related Reading
Questions About This Model
How durable is it?
Durability is ≥10Million operations, which is why it is specified for petrol stations and parking venues.
How many keys can be fitted?
12,16 keys are standard and other key counts can be customized.
What are the dimensions?
Front panel 63.5*82.5 mm with an overall body of 95.5*114.5 mm.
Does it work with serial controllers?
Yes, the interface can be USB, PS/2 or RS232.
Is it suitable for unsheltered sites?
It is resistant to dirt, dust and liquid with a very rugged vandal proof design.
Which operating systems are supported?
Window XP, Window 7, Window 10, Linux, Ubuntu and Android.
