KY-MJ01B Square Outdoor Keypad for Petrol and Parking Terminals

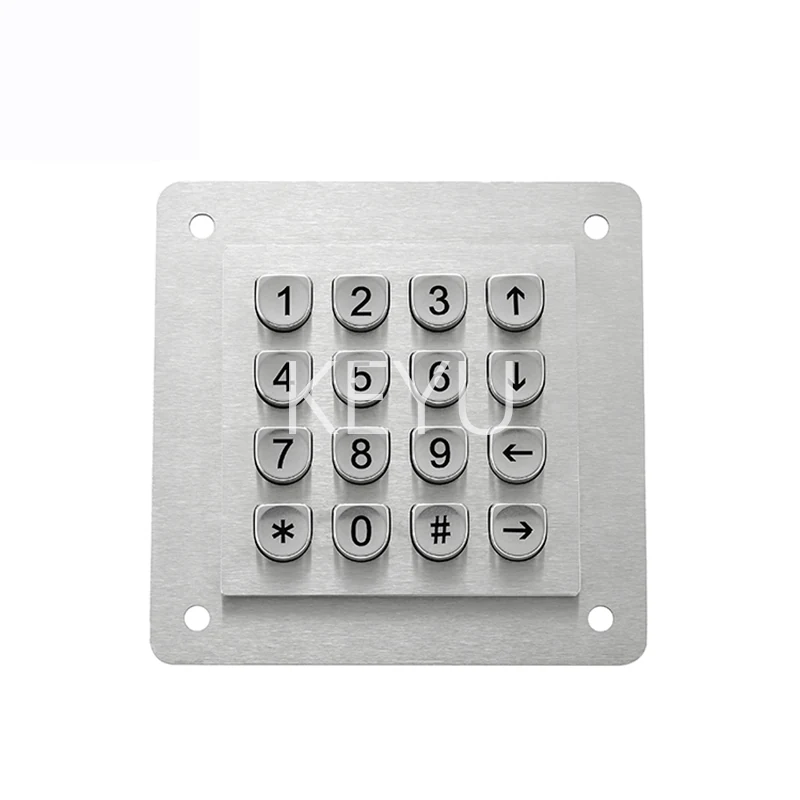

KY-MJ01B is a square outdoor keypad with an 82.6*82.6 mm front panel on a 114.5*114.5 mm body, giving an even key grid for numeric entry on unsheltered terminals.
Product Overview
KY-MJ01B is a square outdoor keypad with an 82.6*82.6 mm front panel on a 114.5*114.5 mm body, giving an even key grid for numeric entry on unsheltered terminals. It is resistant to dirt, dust and liquid with a very rugged vandal proof design and a durability of ≥10Million operations. Standard builds carry 12,16 keys with other counts customized.
- Square 82.6*82.6 mm face gives an even key grid with equal spacing in both axes
- ≥10Million operation durability for terminals used continuously outdoors
- Resistant to dirt, dust and liquid in a very rugged vandal proof design
- 12,16 keys standard with other counts available
- USB, PS/2 or RS232 to suit either a PC or an embedded controller
- DC5V±5% with working current under 100mA
Application Scenarios
- Petrol station payment and pump selection points
- Ticket vending machines exposed to weather
- Parking venues pay stations and barriers
- Other outdoor terminals within -20℃~55℃
Who It Is For
- Forecourt equipment manufacturers
- Parking barrier and pay station suppliers
- Outdoor ticket machine OEMs
- Integrators standardising on a square panel cut-out
Problems It Solves
- Uneven key spacing in rectangular panels when a simple numeric grid is needed
- Rain, grit and spilled fuel reaching the keypad electronics
- Frequent keypad replacement at high-traffic sites
- Controllers that expose only RS232
- Key counts that vary between projects
Technical Features

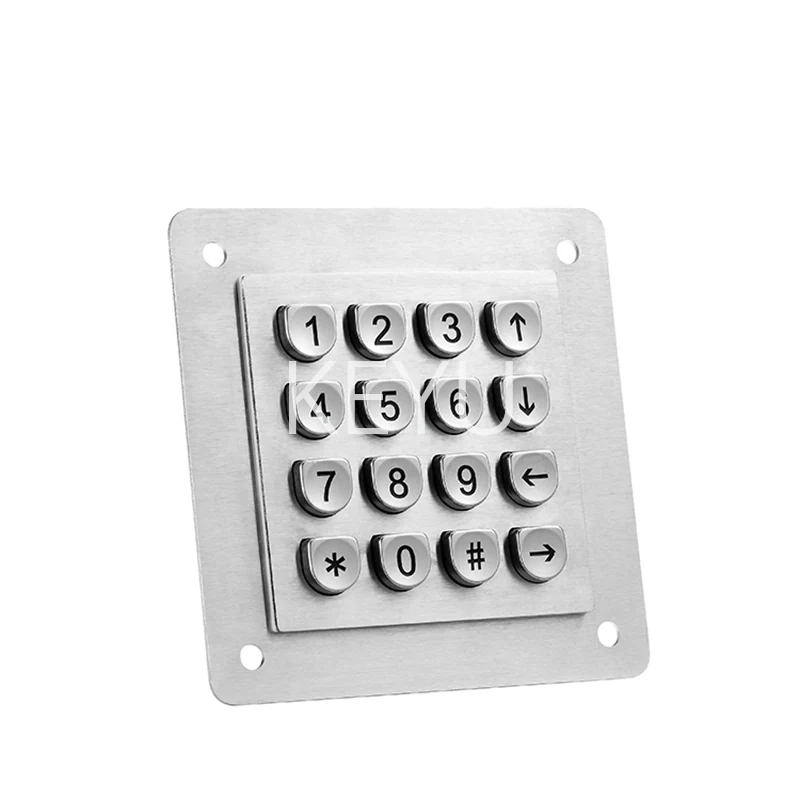

- Square 82.6*82.6 mm front panel on a 114.5*114.5 mm body
- Resistant to dirt, dust and liquid with a very rugged vandal proof design
- Durability ≥10Million operations
- Interface USB, PS/2 or RS232
- Power Supply DC5V±5% and working current under 100mA
- Compatible with Window XP, Window 7, Window 10, Linux, Ubuntu and Android
Specifications
| Front Panel | 82.6*82.6 mm |
|---|---|
| Overall | 114.5*114.5 mm |
| Key Count | 12,16 keys, others customized |
| Interface | USB, PS/2, RS232 |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Durability | ≥10Million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Rugged metal square keypad panel
- Liquid and dust resistant sealed key assembly
Manufacturing Process
- Forming of the square 114.5*114.5 mm body
- CNC machining of the even key grid in the 82.6*82.6 mm face
- Laser etching of numeric legends
- Sealed assembly for dirt, dust and liquid resistance
- Interface wiring and endurance sampling
Quality Control
- Endurance sampling to the ≥10Million durability figure
- Liquid and dust resistance inspection
- Key grid alignment and spacing check on the square face
- Interface enumeration test for the ordered connection
- Storage temperature verification across -30℃~85℃
Customisation Options
- 12,16 keys or a custom key count
- Customized layout available
- USB, PS/2 or RS232 interface
- Key legend and symbol artwork
- Fixing holes to suit your outdoor enclosure
How It Compares
| KY-MJ02B outdoor keypad | KY-MJ01B is square at 82.6*82.6 mm on a 114.5*114.5 mm body, where KY-MJ02B uses a taller 63.5*82.5 mm portrait face. |
|---|---|
| KY2116R metal keypad | KY-MJ01B is rated ≥10Million operations, against ≥2 million for the general metal keypad range. |
| Plastic outdoor keypad | The very rugged vandal proof metal build handles impact and fuel spillage that cracks or clouds plastic. |
Use Guide
- Cut a square opening to the 82.6*82.6 mm front panel and clear the 114.5*114.5 mm body
- Confirm the key count as 12, 16 or a custom figure before production
- Select the interface to match the host controller
- Provide DC5V±5% with under 100mA available
- Operate within -20℃~55℃ and store within -30℃~85℃
Industries
Solutions
Related Reading
Questions About This Model
What size is the panel?
Front panel 82.6*82.6 mm with an overall body of 114.5*114.5 mm.
How many operations are the keys rated for?
Durability is ≥10Million.
What key counts are available?
12,16 keys as standard, and other key counts can be customized.
Can it be used outdoors?
Yes, it is resistant to dirt, dust and liquid with a very rugged vandal proof design.
Which interfaces can be supplied?
USB, PS/2 or RS232.
What is the power requirement?
DC5V±5% with a working current below 100mA.
