Silicone Keyboard
KY-GJ-98-BL Washable Silicone Keyboard With 98 Keys and Backlight
KY-GJ-98-BL is a 98 key silicone keyboard with an integrated pointing device, designed for rooms where the input device has to be disinfected rather than dusted.
Product Overview
KY-GJ-98-BL is a 98 key silicone keyboard with an integrated pointing device, designed for rooms where the input device has to be disinfected rather than dusted. The one-piece 100% silicone rubber surface is rated IP68 and is suitable for rinsing with cleaning and disinfectant solution. Backlight is included, so it stays usable in darkened imaging and monitoring rooms.
- IP68 dustproof and waterproof grade allows rinsing with cleaning and disinfectant solution
- 98 keys plus an integrated pointing device replace two devices on a crowded cart
- 100% silicone rubber surface has no seams for dirt to hide in and wipes clean in seconds

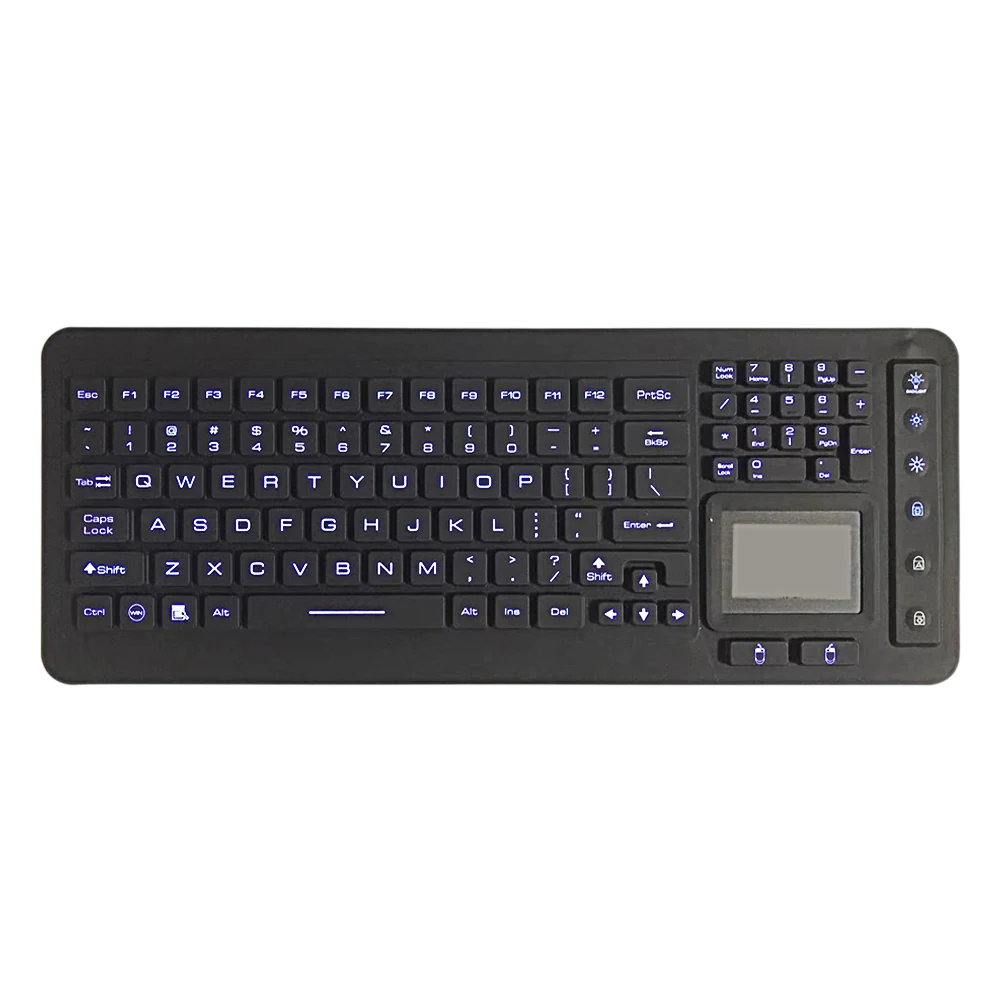

- Backlight function keeps the layout readable in darkened clinical rooms
- Heat resistance of 200° for 10000 hours of continuous use suits sterilization-adjacent areas
- Cold resistance from -50 degrees to -70 degrees keeps the rubber elastic in cold storage
Application Scenarios
- Medical wards and imaging rooms requiring disinfection between patients
- Pharmaceutical production areas with routine washdown
- Industrial clean areas where particulate control matters
- Laboratory benches exposed to reagents
- Cold rooms where standard keyboards stiffen
Who It Is For
- Medical equipment OEMs specifying a washable input device
- Pharmaceutical plant engineers
- Laboratory equipment suppliers
- Hospital IT teams replacing keyboards that fail infection audits
Problems It Solves
- Keyboards that cannot be disinfected and become a contamination route
- Gaps between keycaps that trap fluid and debris
- Silicone surfaces that harden or crack in cold storage
- Separate mouse hardware that clutters a medical cart
Technical Features

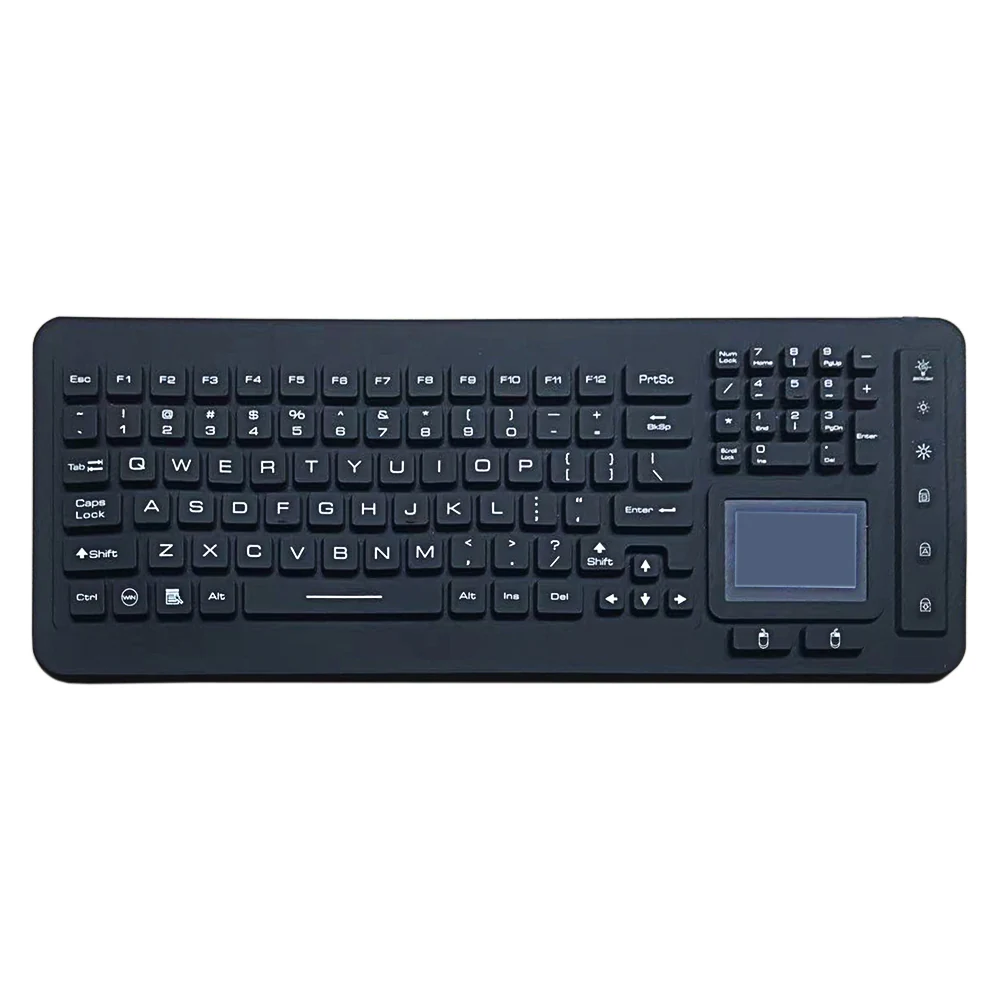

- 98 keys with an integrated pointing device on a single silicone sheet
- Material 100% silicone rubber at hardness 45 + / – 3 degrees
- Flammability rating FV 0
- Dustproof and waterproof grade IP68, not affected by medical cleaning solution
- Power supply +5V DC±10% with working current +5V DC @ 30mA
- Key trip 1.5mm±0.5 mm with operation force 100±10 g
- Backlight function with USB interface and about 1.8m cable
Specifications
| Keys | 98 |
|---|---|
| Ingress Rating | IP68 |
| Material | 100% silicone rubber |
| Hardness | 45 + / – 3 degrees |
| Flammability | FV 0 |
| Heat Resistance | 200° for 10000 hours of continuous use |
| Cold Resistance | -50 degrees to -70 degrees |
| Power Supply | +5V DC±10% |
| Working Current | +5V DC @ 30mA |
| Durability | >2 million |
| Size | 388(length)x 117(width)x 11(thickness)mm |
| Touch Pad Working Area | 60(length)x 45(width) |
Materials
- 100% silicone rubber keyboard body
- Integrated silicone pointing device surface
Manufacturing Process
- Silicone compression moulding of the one-piece 388x117x11mm body
- Conductive pill printing on the key underside
- Backlight layer lamination beneath the silicone sheet
- Touch pad assembly into the 60x45 working area
- USB cable termination at about 1.8m
Quality Control
- IP68 immersion test on the sealed assembly
- Hardness check against 45 + / – 3 degrees
- Operation force sampling at 100±10 g
- Disinfectant exposure test confirming the surface is not affected
- Net weight verification at 610g±5g
Approvals And Test Documentation
- IP68
Customisation Options
- Key legend and language layout on the silicone surface
- Backlight colour and brightness behaviour
- Cable length beyond the standard 1.8m
- Body colour of the silicone moulding
- Touch pad position within the layout
How It Compares
| Sealed plastic medical keyboard | A one-piece IP68 silicone body can be rinsed with disinfectant solution rather than only wiped around the keycaps |
|---|---|
| Stainless steel metal keyboard | The silicone surface gives a softer typing feel and can be cleaned in place, while metal panels are chosen for impact resistance |
Use Guide
- Rinse with cleaning and disinfectant solution; the unit is rated IP68 and is not affected by medical cleaning solution
- Connect by USB; the cable is about 1.8m
- Operate within -20°C-70°C
- Use the integrated 60x45 touch pad rather than adding a separate mouse
- Avoid sharp instruments on the silicone surface
Questions About This Model
How many keys does KY-GJ-98-BL have?
98 keys in total, with an integrated pointing device.
Can it be washed?
Yes. It is rated IP68 and suitable for rinsing with cleaning and disinfectant solution.
Is it backlit?
Yes, it has the function of backlight.
What is the material?
100% silicone rubber at hardness 45 + / – 3 degrees, flammability FV 0.
What are the dimensions?
388(length)x 117(width)x 11(thickness)mm, with a touch pad working area of 60x45.
How is it connected?
By USB, with a cable of about 1.8m.
Request A Quote On KY-GJ-98-BL
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
