TPU Layflat Hose
Mine Dewatering Hose
Mine dewatering hose is a high pressure TPU layflat hose built to remove large volumes of water from a mine quickly and safely.
Product Overview
What This Hose Is Built To Do
Mine dewatering hose is a high pressure TPU layflat hose built to remove large volumes of water from a mine quickly and safely. It is made from high tenacity synthetic yarns with TPU extruded through the weave, giving an extra tough wall that survives being dragged over aggressive underground surfaces. Sizes are 4 to 12 inch in 200 m lengths, blue, rated -50°C to 80°C.
Key Benefits
- Through-the-weave TPU wall is abrasion resistant over aggressive rock surfaces
- 200 m lengths reduce joints in a run that may be hard to reach for repairs
- High pressure rating for pumping water up significant elevation
- Easy to transport underground compared with rigid pipe
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Blue or as required |
| Size | 4 inch-12 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Water accumulation halting production while a pipeline is assembled
- Hose failure deep in a drive where access for repair is slow and expensive
- Moving large diameter pipe through restricted underground access
Who It Is For
- Underground and open pit mine operators
- Mine dewatering and emergency rescue contractors
- Quarry water management teams
- Tunnelling contractors

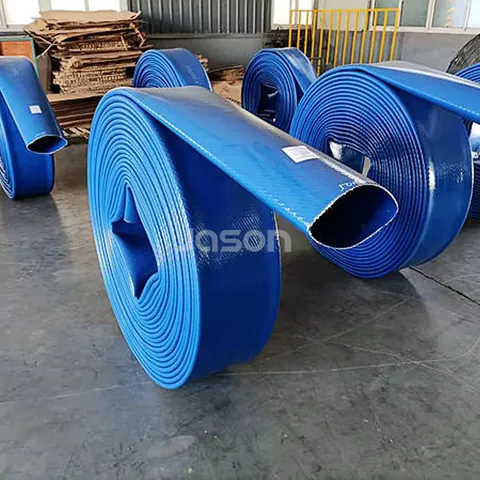

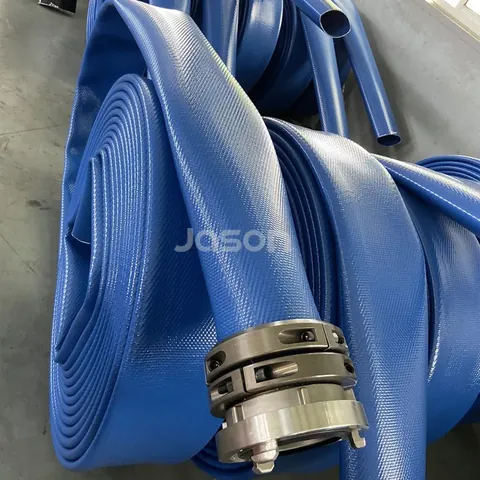

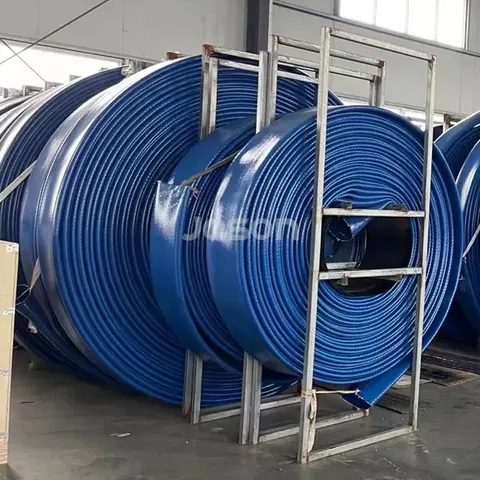

Photographs
The Product as It Ships
Technical Features
- High pressure
- Abrasion resistance
- Oil and chemicals resistance
- UV resistance
- Easy to transport
- Long lifetime
- Reliablity and safety
Application Scenarios
- Dewatering in Mines or emergency rescue
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Route the line where it can be inspected without stopping production
- Protect crossings where vehicles and loaders pass
- Use full bore couplings so pumping efficiency is not lost at joints
- Flush the line after pumping heavily silted water
- Log the trace number of hose used in each section of the mine
Comparison
How It Compares With Our Other Products
| Boreline Hose | Boreline is the vertical rising main with tensile strength and cable ties, where this is the horizontal transfer hose |
|---|---|
| Fracking Hose | Same TPU family, sized 8 to 16 inch for frac and produced water rather than 4 to 12 inch mine water |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Mine Dewatering Hose
What sizes do you supply
4 inch to 12 inch.
What length is standard
200 m (660 ft), or as required.
How is the hose constructed
High tenacity synthetic yarns with TPU extruded through the weave, which is what makes the wall extra tough and abrasion resistant.
Can it be used for emergency rescue dewatering
Yes. Dewatering in mines and emergency rescue are its listed applications.
What colour is standard
Blue, with other colours to order.
How do you trace a hose back to production
Every hose carries a trace number covering production date, production employees and raw material sources.
Request a Quote on the Mine Dewatering Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
