TPU Layflat Hose
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
Product Overview
What This Hose Is Built To Do
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects. The through-the-weave TPU construction bonds cover and lining firmly to the polyester weave, so the wall does not delaminate under repeated reeling. Lengths are 200 m in black.
Key Benefits
- Deploys and recovers fast, which is the whole point on an emergency callout
- DN250 at 200 m gives a long run on a reel a truck can carry
- Extremely tough wall resists abrasion over rough deployment routes
- Oil and chemical resistance for mixed duty fleets
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | 10 inch(DN250) |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Emergency water transfer where set-up time decides the outcome
- Wall delamination on hose that is reeled and unreeled constantly
- Carrying several short lengths where one long length would do
Who It Is For
- Emergency response and civil defence teams
- Irrigation project contractors
- Industrial water transfer operations
- Mining and dewatering crews

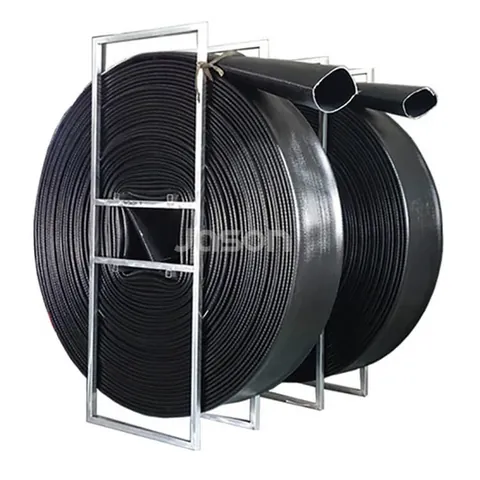

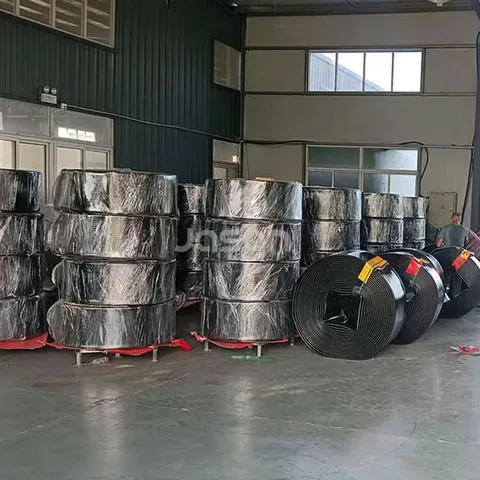

Photographs
The Product as It Ships
Technical Features
- High pressure
- Abrasion resistant
- Extremely tough
- Oil and chemicals resistance
- Fast deployment and retrieval
- Excellent flow rates
- Long service life
Application Scenarios
- Long-distance water supply in fire fighting
- Emergency water removal during floods
- Industrial large volume water discharge
- Irrigation supply and frac solution
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Reel the hose rather than hand-coiling at this length
- Check the first and last 10 m most closely, since they see the most handling
- Keep the deployment route clear of sharp debris
- Rinse before rewinding after dirty water duty
- Store the reel under cover
Comparison
How It Compares With Our Other Products
| 10 Inch Discharge Hose | The PVC version costs less for plain water work, where this TPU hose adds pressure, chemical and cold capability |
|---|---|
| 12 Inch Layflat Hose | One size up for more flow, at the cost of a heavier reel |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specifications
Layflat Supply Hose
The layflat supply hose is our TPU discharge and supply hose made by the extrusion through-the-weave method, which bonds cover to lining and firmly encapsulates the woven polyester.
View specificationsFAQ
Questions About the 10 Inch Layflat Hose
What bore is this hose
DN250.
How long is a length
200 m (660 ft), or as required.
What makes TPU tougher than PVC here
TPU is extruded through the weave, which bonds the cover and lining to the polyester and gives a much more abrasion resistant wall.
Is there a PVC alternative in 10 inch
Yes. The 10 inch discharge hose is the PVC version.
What is the temperature range
-50°C (-60°F) to 80°C (176°F).
Do you supply reels with the hose
Tell us how you plan to deploy the hose and we will advise on packing and reeling with your order.
Request a Quote on the 10 Inch Layflat Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
