Boreline Hose
Boreline hose is a high pressure, high tensile strength layflat hose for underground water pumping.
Product Overview
What This Hose Is Built To Do
Boreline hose is a high pressure, high tensile strength layflat hose for underground water pumping. TPU is integrated into a woven high tenacity polyester fabric, and the cover carries blue polypropylene cable ties or polyurethane straps so the rising main and the pump cable travel together. Against rigid pipe it is far easier to install and retrieve down a bore. Sizes are 1.5 to 8 inch in 200 m lengths.
Key Benefits
- High tensile strength to carry the weight of a long rising main plus the pump
- Integrated cable ties or straps keep the pump cable secured to the hose down the bore
- Installs and retrieves without the rig time rigid rising main needs
- Corrosion resistant, unlike steel rising main in aggressive bore water
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover | High quality TPU with blue polypropylene cable ties or polyurethane straps |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Liner | High quality TPU |
| Color | Blue or as required |
| Size | 1.5 inch-8 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Rig time and cost of installing and pulling a steel rising main
- Pump cable chafing or snagging separately from the rising main
- Corrosion of metal rising main in mineralised bore water
Who It Is For
- Mine dewatering operations
- Bore water and groundwater extraction contractors
- Agricultural and irrigation bore operators
- Drinking water supply schemes drawing from groundwater

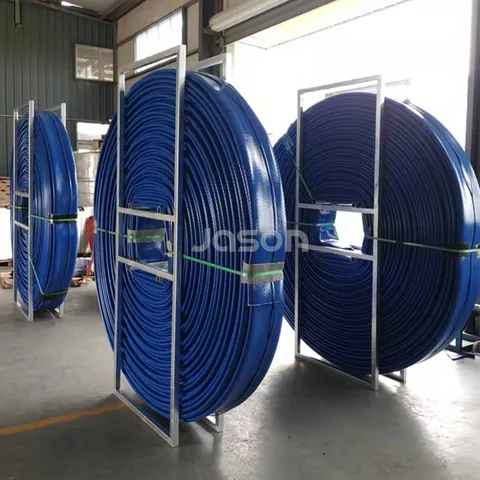

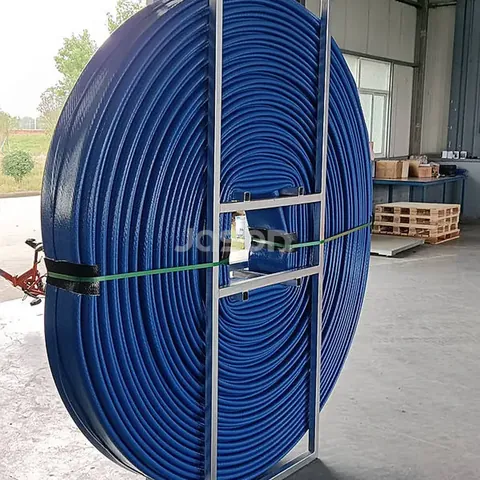

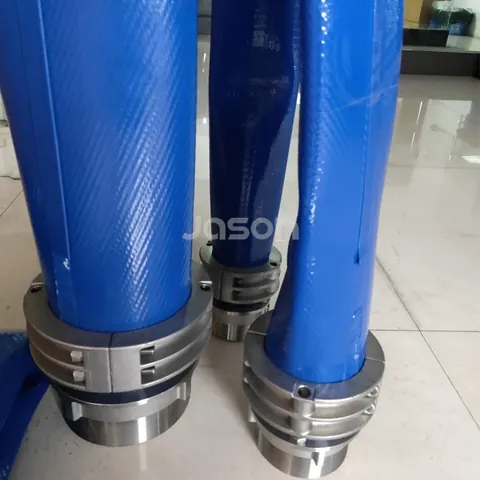

Photographs
The Product as It Ships
Technical Features
- High pressure
- High tensile strength
- Oil and chemicals resistance
- UV resistance
- Corrosion resistance
- Easy to install and retrieve
- Long lifetime and excellent flow rates
Application Scenarios
- Mine dewatering
- Bore water pumping
- Irrigation/agriculture
- Groundwater extraction – drinking water
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Confirm the static head and pump weight against the tensile rating before selecting a size
- Secure the pump cable into the cable ties or straps as the hose goes down
- Lower and retrieve at a controlled rate rather than free-running the reel
- Record the installed depth and date against the hose trace number
- Inspect the top section on retrieval, where tensile load is highest
Comparison
How It Compares With Our Other Products
| Mine Dewatering Hose | Mine dewatering hose is the 4 to 12 inch surface hose for moving the water once it is up, where boreline is the rising main itself |
|---|---|
| Layflat Supply Hose | The supply hose is a surface transfer hose without the tensile and cable-tie system a rising main needs |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Boreline Hose
What sizes do you make
1.5 inch to 8 inch.
What is the cover construction
High quality TPU with blue polypropylene cable ties or polyurethane straps, over high tenacity synthetic yarn, with a TPU liner.
What length is supplied
200 m (660 ft), or as required.
Why use it instead of rigid rising main
It is far easier to install and retrieve, does not corrode, and carries the pump cable with it.
Is it suitable for drinking water bores
Groundwater extraction for drinking water is a listed application. For the surface distribution line, ask about our food grade drinking water hose.
What colour is standard
Blue, with other colours to order.
Request a Quote on the Boreline Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
