TPU Layflat Hose
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
Product Overview
What This Hose Is Built To Do
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer. At DN200 with 200 m lengths it is the size that most field water transfer fleets build around: enough flow for serious duty, light enough to reel and move with a standard truck. Colour is black, rated -50°C to 80°C.
Key Benefits
- Best balance of flow and reel weight in the TPU range for field transfer work
- 200 m lengths keep joint counts low on multi-kilometre runs
- Oil and chemical resistant wall covers frac and produced water duty
- Long service life under repeated reeling, which is where the economics sit
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | 8 inch(DN200) |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Multi-kilometre temporary water lines assembled from too many short sections
- Hose life cut short by abrasion on repeated reel cycles
- Cold-weather brittleness on winter field operations
Who It Is For
- Oil and gas water transfer contractors
- Emergency flood response teams
- Industrial and mining discharge operations
- Fire services building long supply runs

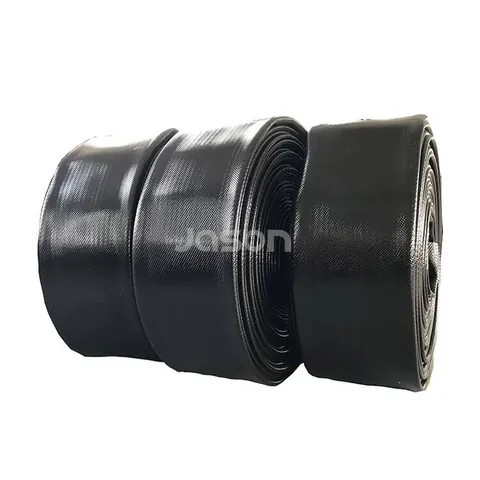

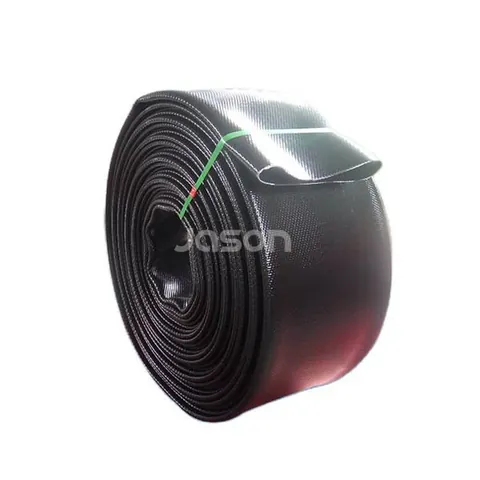

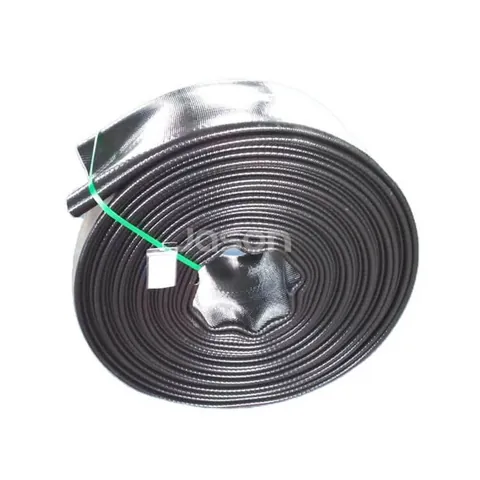

Photographs
The Product as It Ships
Technical Features
- High pressure
- Abrasion resistant
- Extremely tough
- Oil and chemicals resistance
- Fast deployment and retrieval
- Excellent flow rates
- Long service life
Application Scenarios
- Long-distance water supply in fire fighting
- Emergency water removal during floods
- Industrial large volume water discharge and frac soulution
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Plan the run so joints fall at accessible points for inspection
- Deploy from a reel and keep tension steady to avoid twists
- Protect road and track crossings with ramps
- Flush after produced water duty
- Record reel hours so hose is rotated through the fleet evenly
Comparison
How It Compares With Our Other Products
| 8 Inch Discharge Hose | The PVC version is cheaper for plain water, where this adds pressure, chemical resistance and 200 m lengths |
|---|---|
| 8 Inch Fire Hose | The fire hose is the same bore cut to 20 m and 30 m firefighting lengths, where this is built for long transfer runs |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
Layflat Supply Hose
The layflat supply hose is our TPU discharge and supply hose made by the extrusion through-the-weave method, which bonds cover to lining and firmly encapsulates the woven polyester.
View specificationsFAQ
Questions About the 8 Inch Layflat Hose
What is the bore
DN200.
What length is standard
200 m (660 ft), or as required.
Is it suitable for frac water
Yes. Frac solution transfer is a listed application, and the fracking hose version adds anti-static copper wires.
How does it handle cold
It is rated to -50°C (-60°F) and stays flexible for winter deployment.
Can you fit quick VIC couplings
Yes. Quick VIC couplings in 4 to 16 inch are made in our own coupling line for TPU layflat hose.
Do you offer OEM colour and printing
Yes. OEM and ODM work is a standard part of our business.
Request a Quote on the 8 Inch Layflat Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
