Fracking Hose
Fracking hose is a high pressure TPU layflat hose for transferring large volumes of frac water and produced water in oil and gas.
Product Overview
What This Hose Is Built To Do
Fracking hose is a high pressure TPU layflat hose for transferring large volumes of frac water and produced water in oil and gas. It is built to survive the harshest field environments with a long service life and low maintenance, and it transports and deploys far more easily than rigid line pipe. Sizes are 8 to 16 inch in 200 m lengths, black. Copper wires can be run inside for anti-static duty.
Key Benefits
- High pressure TPU wall for the transfer rates a frac spread needs
- Copper wires available inside for anti-static protection on hydrocarbon-bearing water
- Deploys and recovers far faster than rigid line pipe between pads
- Low maintenance over a long service life, which is where the cost case is made
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | 8 inch-16 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Moving frac and produced water between pads without laying temporary pipe
- Static risk on water carrying hydrocarbons
- Line pipe logistics dominating the cost of a short transfer campaign
Who It Is For
- Oil and gas water transfer contractors
- Hydraulic fracturing service companies
- Produced water disposal operators
- Field logistics contractors on unconventional plays

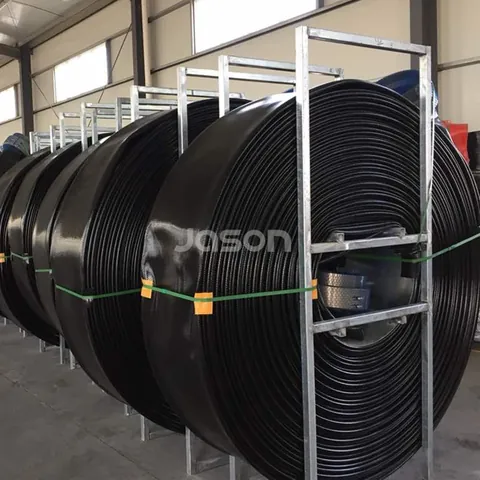

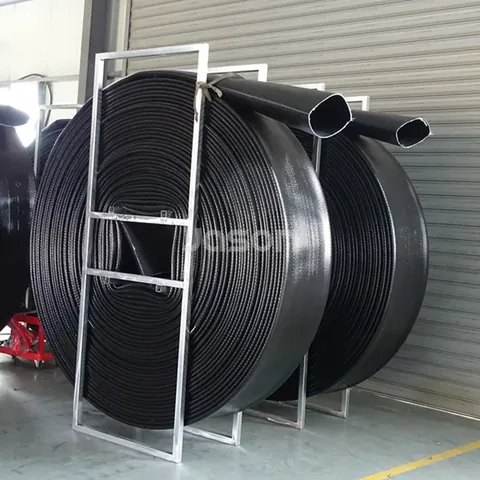

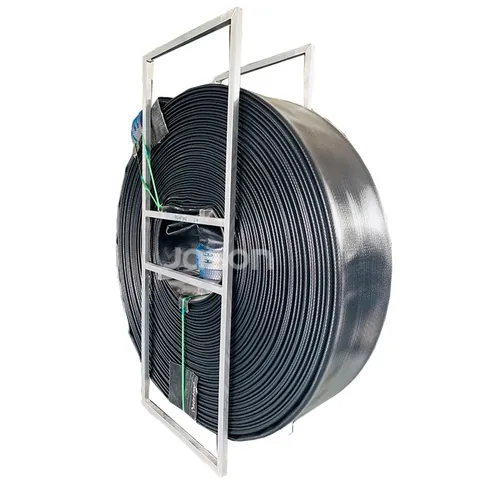

Photographs
The Product as It Ships
Technical Features
- High pressure
- Abrasion resistance
- Oil and chemicals resistance
- UV resistance
- Easy to deploy
- Long service life and excellent flow rates
Application Scenarios
- Frac water or produced water transfer in oil and gas industry
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Specify the anti-static copper wire option where the water carries hydrocarbons
- Deploy from reels and keep the route surveyed and marked
- Protect all road crossings with ramps
- Flush after produced water service before the hose goes back on the reel
- Track hose by trace number across a campaign so service history follows each reel
Comparison
How It Compares With Our Other Products
| Layflat Supply Hose | Same TPU through-the-weave family in the same size range, where this one is specified for frac and produced water with the anti-static option |
|---|---|
| Fuel Transfer Hose | Fuel transfer hose is the smaller 2 to 8 inch antistatic hose for fuel and chemicals rather than bulk frac water |
Related Case Studies
Related Guides
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Fracking Hose
What sizes do you make
8 inch to 16 inch.
What length is standard
200 m (660 ft), or as required.
Can it be supplied anti-static
Yes. Copper wires are available inside the hose for anti-static duty.
What is the temperature range
-50°C (-60°F) to 80°C (176°F).
Why choose layflat over rigid line pipe
It is easier to transport and deploy, tough in harsh environments, and has a long service life with low maintenance.
Which couplings do you recommend
Quick VIC couplings in 4 to 16 inch are made in house specifically for connecting TPU layflat hose in oil and gas and dewatering.
Request a Quote on the Fracking Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
