TPU Layflat Hose
Boreline Hose

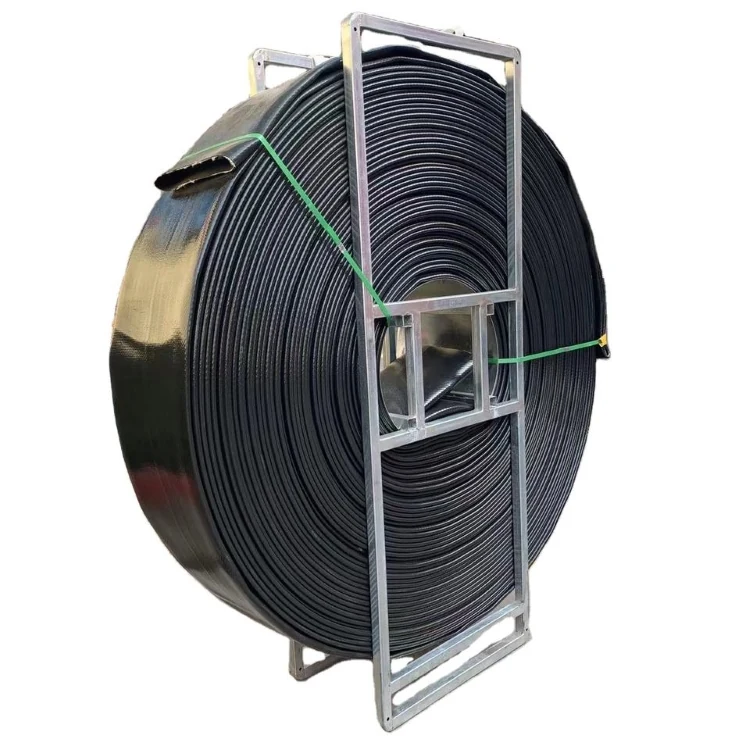

Boreline hose is a high pressure, high tensile strength layflat hose for underground water pumping.
View specifications
Industry
Water Wells and Groundwater
A layflat rising main changes the economics of a bore. It installs and retrieves without the rig time a steel rising main needs, does not corrode in mineralised bore water, and carries the pump cable down with it in integrated ties.
Pain Points
What Goes Wrong in This Industry
- Rig time and cost of installing and pulling steel rising main
- Corrosion of metal rising main in aggressive bore water
- Pump cable chafing or snagging separately from the rising main
- Getting clean bore water to where it is needed at the surface
What Buyers Need From a Supplier
- High tensile strength to carry the rising main and pump weight
- Integrated cable management down the bore
- Corrosion-free construction
- Food grade options where the bore supplies drinking water
Recommended Products
Products We Supply Into Water Wells and Groundwater
TPU Layflat Hose
Layflat Drinking Water Hose
The layflat drinking water hose is a food grade TPU pipeline for emergency and temporary potable water delivery at high working pressure.
View specifications
TPU Layflat Hose
Mine Dewatering Hose
Mine dewatering hose is a high pressure TPU layflat hose built to remove large volumes of water from a mine quickly and safely.
View specifications
NBR Layflat Hose
Irrigation Supply Hose
The irrigation supply hose is a premium layflat hose for agricultural irrigation, liquid fertiliser and slurry pumping.
View specifications
Suction Hose
Fabric Reinforced Suction Hose
Fabric reinforced suction hose adds a polyester fabric layer to the rigid PVC helix, so the wall carries pressure on the discharge stroke as well as vacuum on the inlet.
View specifications
Hose Coupling
Bauer Coupling
The Bauer coupling is a quick release coupling for agriculture and industry, cast in galvanised or stainless steel and made in 2 inch to 12 inch.
View specificationsDelivery Capability
What We Commit To on These Orders
- Boreline hose in 1.5 to 8 inch with blue polypropylene cable ties or polyurethane straps
- Food grade TPU drinking water hose in light green for potable duty
- 200 m standard lengths
- Trace numbers recorded against installed depth and date
FAQ
Questions From Water Wells and Groundwater Buyers
Why use a layflat rising main instead of rigid pipe
It is far easier to install and retrieve, does not corrode, and carries the pump cable with it.
How deep can boreline hose go
It depends on static head and pump weight against the tensile rating. Send those figures and we will size it.
Is there a food grade option for drinking water
Yes. The layflat drinking water hose uses food grade TPU cover and liner in light green.
What sizes do you make in boreline
1.5 inch to 8 inch.
Specify the Right Hose for Your Water Wells and Groundwater Operation
Send the duty and we will name the product, the coupling and the length. Our team replies within 24 hours.
