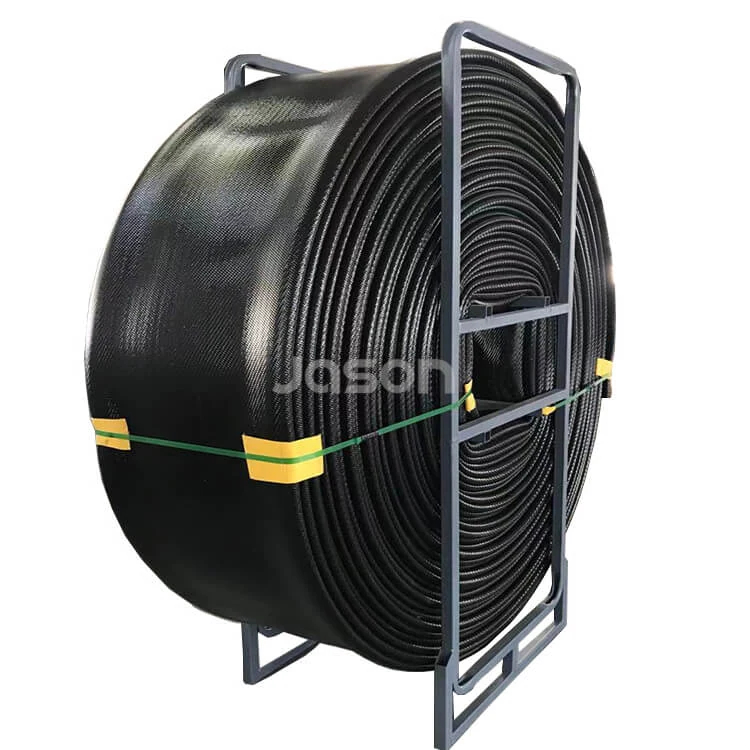

16 Inch Layflat Hose
The 16 inch layflat hose is a DN400 TPU hose for long-distance water supply in firefighting, emergency water removal during floods, industrial bulk discharge, irrigation supply and frac solution transfer.
View specifications
TPU Layflat Hose
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
Product Overview
What This Hose Is Built To Do
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry. The through-the-weave TPU wall gives it the toughness to be dragged and reeled repeatedly, and 200 m lengths make long runs practical. A Canadian customer visited our plant to audit the production process before placing a 12 inch layflat hose order.
Key Benefits
- 200 m lengths for long transfer runs with minimal joints
- Tough TPU wall survives repeated deployment and retrieval by reel
- Oil and chemical resistance broadens it beyond clean water duty
- Fast deployment where a crew and a reel replace a pipe gang
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | 12 inch(DN300) |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Long agricultural and industrial water runs built from too many short lengths
- Cover wear from reeling and dragging that shortens PVC hose life
- Cold weather deployment where a stiff hose is a safety problem
Who It Is For
- Oil and gas field water transfer crews
- Large irrigation operations
- Industrial plants moving process and cooling water
- Fire and emergency water supply units
Photographs

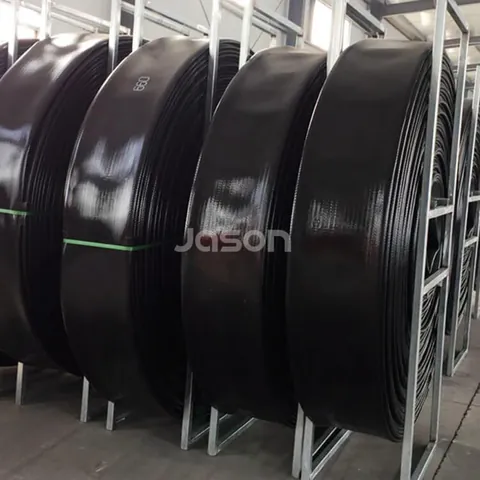

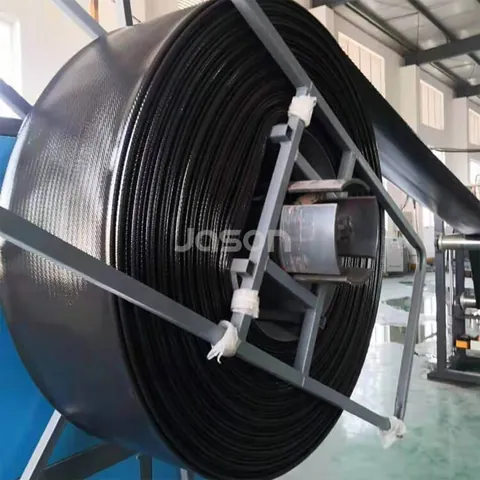

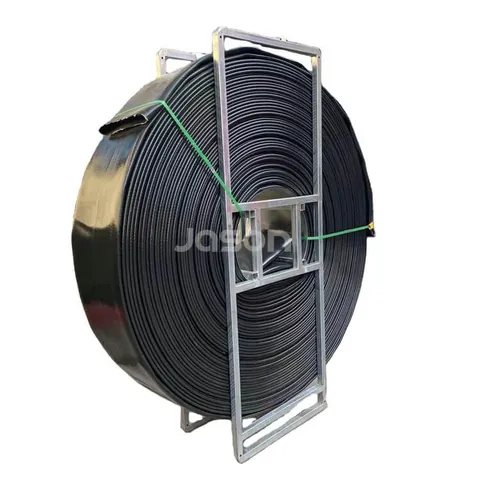

The Product as It Ships
Technical Features
- High pressure
- Abrasion resistant
- Extremely tough
- Oil and chemicals resistance
- Fast deployment and retrieval
- Excellent flow rates
- Long service life
Application Scenarios
- Long-distance water supply in fire fighting
- Emergency water removal during floods
- Industrial large volume water discharge
- Irrigation supply and frac solution
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Use a reel sized for 200 m so the full length can be handled as one unit
- Avoid sharp direction changes immediately after the pump
- Inspect the wall where the hose leaves the reel, which is the highest wear point
- Flush after any hydrocarbon or chemical exposure
- Store reeled rather than flat-stacked under load
Comparison
How It Compares With Our Other Products
| 12 Inch Discharge Hose | The PVC discharge version is the lower cost choice for straightforward water, where this handles pressure, oil and cold |
|---|---|
| 16 Inch Layflat Hose | One size up for higher flow, at a heavier reel and a higher cost per metre |
Related Case Studies
Related Products
Other Products in the TPU Layflat Hose Range

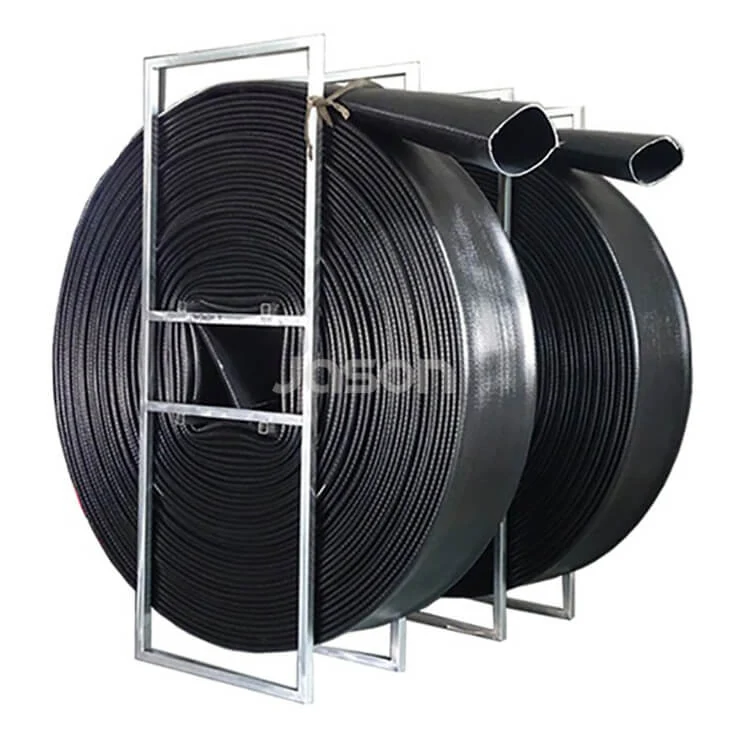

10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications

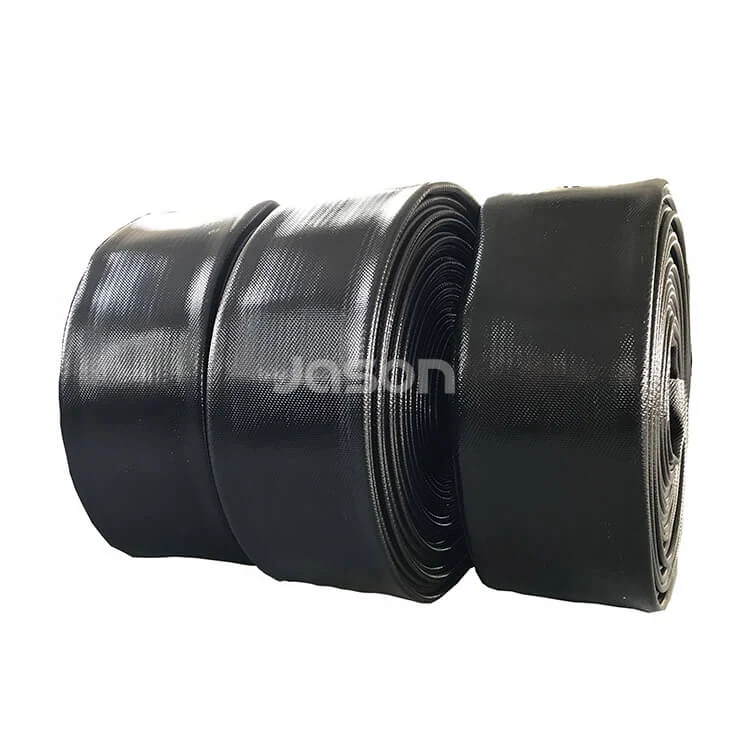

8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specifications

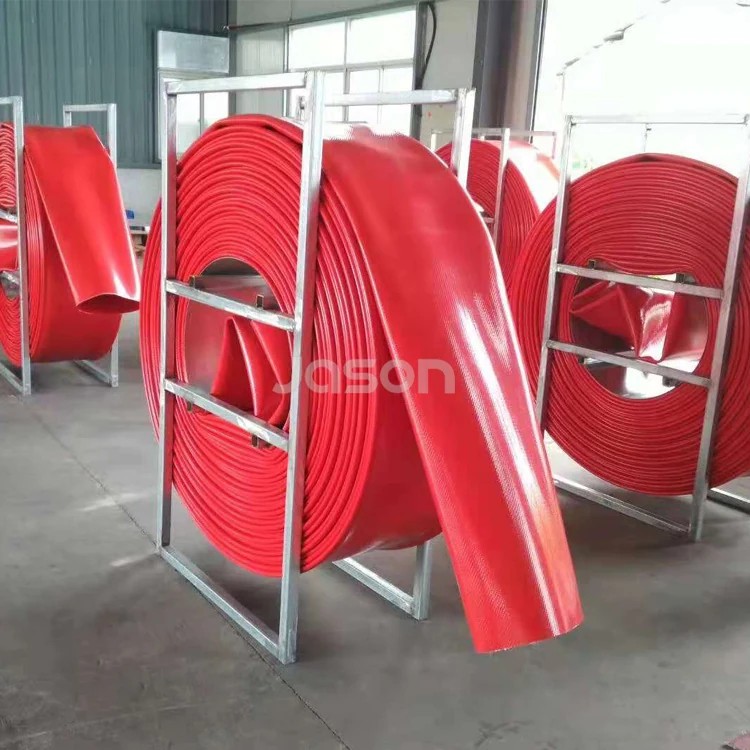

Layflat Supply Hose
The layflat supply hose is our TPU discharge and supply hose made by the extrusion through-the-weave method, which bonds cover to lining and firmly encapsulates the woven polyester.
View specificationsFAQ
Questions About the 12 Inch Layflat Hose
What is the metric bore
DN300.
What length do you supply
200 m (660 ft), or as required.
Is it suitable for oil and gas water transfer
Yes. Frac solution and industrial discharge are listed applications, and the wall is oil and chemical resistant.
How cold can it be deployed
It is rated to -50°C (-60°F).
Can customers visit the factory before ordering
Yes. Customers have audited our production process on site before placing orders.
What colour is standard
Black, with other colours to order.
Request a Quote on the 12 Inch Layflat Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
