JL693A
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. The published specification for JL693A lists 139 W available to powered devices and 1 x ARM Cortex-A9: 1.016 GHz. It is supplied new factory sealed, ...
- Ports
- 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+...
- PoE Power
- 139 W
- Capacity
- Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦...
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- MAC Table
- 32K entries
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

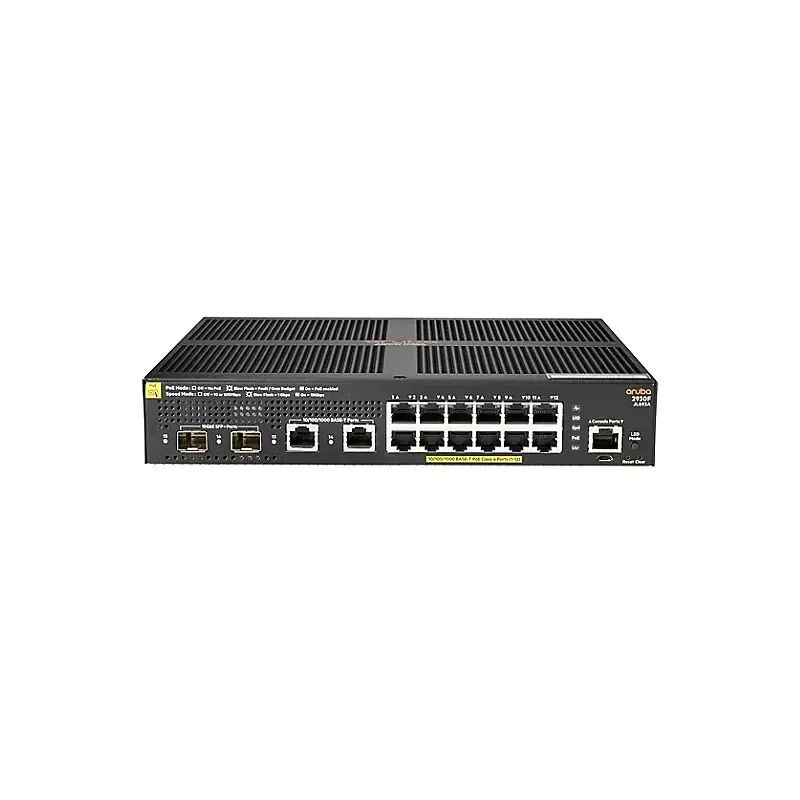

JL693A Overview
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. The published specification for JL693A lists 139 W available to powered devices and 1 x ARM Cortex-A9: 1.016 GHz. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning JL693A Changes
Node Configuration Fixed to One Generation
1 x ARM Cortex-A9: 1.016 GHz quoted with the rails caddies and controller that belong to the same chassis generation, so the node racks on the day it lands.
Table Sizes Checked Against the Design
A MAC Address Table Size of 32K entries on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
A Power Budget You Can Design Against
139 W available to powered devices, which is the figure a PoE budget calculation actually needs rather than the platform's total draw.
Serials Issued Before It Ships
The serial list for your JL693A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against JL693A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points JL693A Removes
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 139 W is the figure that decides it
- End of sale announcements that leave a proven design with no supply route for JL693A
- A closet-by-closet rollout that needs the same SKU available years after the first order
Who It Is For
Who Benefits Most From JL693A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Service Providers
Deploying managed hardware at customer premises with consistent revision and firmware
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Specifications
JL693A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Device Type | Switch - 12 ports - L3 - managed - stackable |
|---|---|
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 139 W |
| Performance | Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs |
| Capacity | Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB |
| Interfaces | 12 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 2 x 1000Base-T RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 2 (max) |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Supply Terms
How JL693A Is Supplied
| Part Number | JL693A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
JL693A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | JL693A | JL079A | JL083A | JL084A |
|---|---|---|---|---|
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+... | - | - | - |
| PoE Power | 139 W | - | - | - |
| Capacity | Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦... | - | - | - |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz | - | - | - |
| MAC Table | 32K entries | - | - | - |
| Drive Support | - | Aruba 3810M Switch | Aruba 3810M Switch | Aruba 3810M Switch |
| Product page | View JL693A | View JL079A | View JL083A | View JL084A |
Use Guide
Deployment Guide for JL693A
Confirm the Full Part Number
Check JL693A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 139 W available, using realistic device draw with headroom rather than class maximums.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches
JL083A
Aruba 3810M 4-port 10GbE SFP+ Module JL083A is an accessory for the Aruba 3810M. It is supplied new factory sealed, with the serial list issued before
JL084A
Aruba 3810M 4-port module JL084A to allow stacking of 3810M switches. It is supplied new factory sealed, with the serial list issued before shipment a
JL085A
JL085A - HP Power Supply X371 12VDC 250W PS. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement
JL086A
JL086A - HP Power Supply X372 54VDC 680W PS. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement
JL087A
JL087A - HP Power Supply X372 54VDC 1050W PS. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement
JL253A
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approa
JL254A
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approa
Where It Goes
Industries That Deploy It
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Enterprise Campus
Access, distribution and wireless supplied to one standard so every closet in every building behaves the same way.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
Regional Bank Branch Refresh Across 140 Sites
The branch edge had reached end of software support and the estate had drifted into four different router models bought across eight years
Choosing Optical Transceivers for Reach
Coding, fibre type, reach and connector are four independent decisions, and any one of them can stop a link coming up.
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
FAQ
JL693A Frequently Asked Questions
Is JL693A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for JL693A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for JL693A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does JL693A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does JL693A Provide
The manufacturer lists poE budget of 139 W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
Are Uplink Modules and Optics Included With JL693A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
What Table Sizes Does JL693A Carry
The published MAC Address Table Size is 32K entries. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Can You Ship JL693A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship JL693A to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for JL693A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
