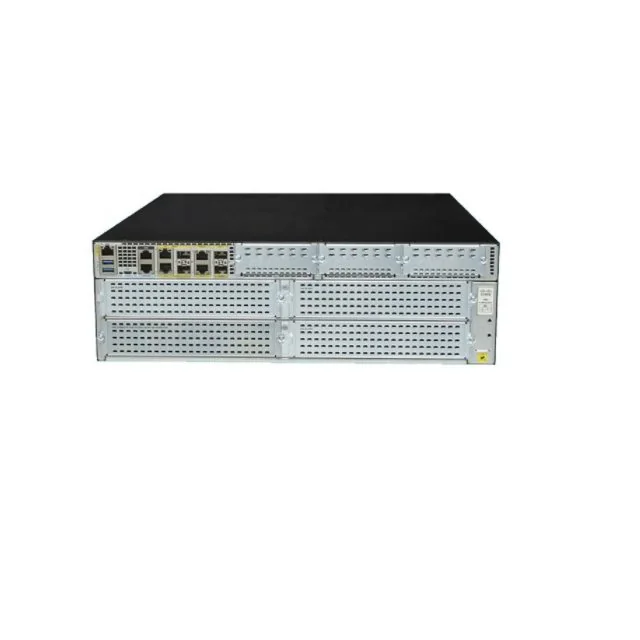

ISR4461/K9
ISR4461/K9 is the Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). The Cisco 4000 Series Integrated Services Routers (ISR) revolutionize WAN com...
- Ports
- 4
- PoE Power
- 500 W with optional redundancy
- Throughput
- 1.5Gbps
- Form Factor
- 3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm)
- Rated MTBF
- 480770 hours
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
ISR4461/K9 Overview
ISR4461/K9 is the Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). The Cisco 4000 Series Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of builtin intelligent network capabilities and convergence, the routers specifically address the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The published specification for ISR4461/K9 lists 4 Total onboard WAN or LAN 10/100/1000 ports and 500 W with optional redundancy available to powered devices. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning ISR4461/K9 Changes
Powered Access Without a Separate Injector Build
4 Total onboard WAN or LAN 10/100/1000 ports with 500 W with optional redundancy available to powered devices, so access points cameras and phones are fed from the same switch instead of from a parallel power estate.
Rated Performance Written Into the Quotation
1.5Gbps published for ISR4461/K9 as its aggregate throughput, confirmed against the current datasheet revision when the line is quoted.
Uplink Capability Settled at Order Not at Install
4 SFP-based ports on ISR4461/K9, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
Serials Issued Before It Ships
The serial list for your ISR4461/K9 consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against ISR4461/K9 before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points ISR4461/K9 Removes
- End of sale announcements that leave a proven branch design with no supply route
- Throughput ceilings reached once encryption and inspection are switched on
- Modules and interface cards quoted separately which breaks the budget late
- Hardware arriving without the licence tier the design assumed
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 500 W with optional redundancy is the figure that decides it
Who It Is For
Who Benefits Most From ISR4461/K9
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Machine Builders
Replacing an installed component with one that behaves identically to the unit removed
Campus Network Teams
Running one access standard across buildings of very different ages
Specifications
ISR4461/K9 Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Aggregate Throughput | 1.5Gbps |
|---|---|
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| Total onboard WAN or LAN 10Gbps ports | 2 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 3 |
| Doublewide service-module slots | 2 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 4 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 8 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 32 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC and PoE |
| Redundant power supply | Internal: AC, DC and PoE |
| AC input voltage | 100 to 240 VAC auto ranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | - |
| Maximum power with AC power supply (watts) | 1000W (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
| Dimensions (H x W x D) | 3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm) |
| External Power Supply Dimensions (H x W x D) | N/A |
| Rack height | 2 Rack Units (2RU) |
| Rack-mount 19in. (48.3 cm) EIA | Included |
| Rack-mount 23in. (58.4 cm) EIA | Optional |
| Wall-mount | No |
| Weight with 1, 450-WAC power supply (no modules) | - |
| Weight with 1 1,000-WAC power supply+ 1 PoE power module (no other modules) | - |
| Weight with AC PS (no modules) | - |
| Weight with AC PS with POE (no modules) | - |
| Typical weight (fully loaded with modules) | - |
| Airflow | I/O side to bezel side |
| MTBF (Hours) | 480770 |
| Temperature | 32 to 104ºF (0 to 40ºC) |
| Altitude (China) | 0 - 6,560 ft. (0 - 2,000 m) |
| Altitude (Rest of the world) | 0 - 10,000 ft. (0 - 3,050 m) |
| Relative humidity | 5% to 85% |
| Short-term humidity | 5% to 90%, not to exceed 0.024 kg water/kg of dry air |
| Acoustics: Sound pressure (Typical/maximum) | 50.6/73.1 dBA |
| Acoustics: Sound power (Typical/maximum) | 58.2/78.8 dBA |
| Temperature | -40 to 158ºF (-40 to 70ºC) |
| Relative humidity | 5% to 95% |
| Altitude | 15,584 ft (4750m) |
| Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
| EMC | 47 CFR, Part 15 ICES-003 Class A EN55032 Class A CISPR32 Class A AS/NZS CISPR 32 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 KN22, KN24 |
| Telecom | T1 IC CS-03:2004 TIA-968-B:2009 HKTA 2028:2010 HKTA 2017:2010 HKTA 2015: 2006 G.703:2001 ID0002:2007 IS6100:2004 DSPR Gray Book:2000 DSPR Technical Condition: 2004 E1 AS/ACIF S016: 2001 AS/ACIF S038: 2001 G.703:2001 TBR 4:1995 TBR 12:1993 TBR 13:1996 RRA 2009-38 (RRL 2005-96) IDA TS DLCN:2011 IDA TS ISDN PRA:2005 IS... |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management P... |
| Encapsulations | Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) |
| Traffic management | QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Application Recognition (NBAR) |
| Cryptographic algorithms | Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
Supply Terms
How ISR4461/K9 Is Supplied
| Part Number | ISR4461/K9 |
|---|---|
| Brand | Cisco |
| Category | Cisco ISR 4000 Routers |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Support Contracts
Vendor Support Options Available With ISR4461/K9
Contracts are registered under the end user name rather than under a reseller name, so the entitlement sits with the organisation that owns the outage. See the support contract guide for how the response levels differ.
| Contract Part Number | Coverage |
|---|---|
| CON-OSE-ISR44619 | SNTC-8X5X4OS Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-OSP-ISR44619 | SNTC-24X7X4OS Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-OS-ISR44619 | SNTC-8X5XNBDOS Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-PREM-ISR44619 | SNTC-24X7X2OS Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-S2P-ISR44619 | SNTC-24X7X2 Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-SMBS-ISR44619 | CSCO SUP ESS 8X5XNBD Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4 |
| CON-SNTE-ISR44619 | SNTC-8X5X4 Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-SNTP-ISR44619 | SNTC-24X7X4 Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-SNT-ISR44619 | SNTC-8X5XNBD Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-SW-ISR44619 | SNTC-NO RMA Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-3OSP-ISR44619 | 3YR SNTC 24X7X4OS Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
| CON-3SNTP-ISR44619 | 3YR SNTC 24X7X4 Cisco ISR 4461 (4GE,3NIM,3SM,8G FLASH,4G |
Comparison
ISR4461/K9 Against Other Models in Cisco ISR 4000 Routers
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | ISR4461/K9 | ISR4321-AXV/K9 | ISR4321-SEC/K9 | ISR4321-V/K9 |
|---|---|---|---|---|
| Ports | 4 | 2 | 2 | 2 |
| PoE Power | 500 W with optional redundancy | 120 W | 120 W | 120 W |
| Throughput | 1.5Gbps | 50 Mbps to 100 Mbps | 50 Mbps to 100 Mbps | 50 Mbps to 100 Mbps |
| Form Factor | 3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm) | - | Cisco ISR4321/K9 with Security Bundle | - |
| Rated MTBF | 480770 hours | - | - | - |
| Uplinks | - | 1 | 1 | 1 |
| Product page | View ISR4461/K9 | View ISR4321-AXV/K9 | View ISR4321-SEC/K9 | View ISR4321-V/K9 |
Use Guide
Deployment Guide for ISR4461/K9
Confirm the Full Part Number
Check ISR4461/K9 character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 500 W with optional redundancy available, using realistic device draw with headroom rather than class maximums.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Related Products
Other Models in Cisco ISR 4000 Routers
ISR4321-SEC/K9
Cisco ISR4321-SEC/K9 is the Cisco ISR4321/k9 router with Security Bundle. Its other specifications are the same as ISR4321/k9. The published specifica
ISR4321-V/K9
Cisco Intergrated Services router ISR4321-V/K9 Voice Bundle is design to deliver advanced VOIP services to the small enterprise branch environment. Ci
ISR4321-VSEC/K9
Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput
ISR4321/K9
Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput
ISR4331-AX/K9
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which sup
ISR4331-AXV/K9
ISR4331-AXV/K9 is the Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses. Cisco 4331 Integrated Services Router delive
ISR4331-DC/K9
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelli
Where It Goes
Industries That Deploy It
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Network Refresh Planning Checklist
Refresh programmes fail on supply far more often than on design. This is the sequence that keeps a phased rollout on its dates.
Verifying Hardware Authenticity
Checks that cost minutes on arrival and save a great deal later. Most of them can be done before the carton is opened.
FAQ
ISR4461/K9 Frequently Asked Questions
Is ISR4461/K9 New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for ISR4461/K9 Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for ISR4461/K9
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does ISR4461/K9 Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does ISR4461/K9 Provide
The manufacturer lists maximum endpoint poe power available from poe power supply of 500 W with optional redundancy for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is ISR4461/K9 Rated For
The published aggregate throughput is 1.5Gbps. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With ISR4461/K9
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
Can You Ship ISR4461/K9 to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship ISR4461/K9 to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for ISR4461/K9
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
