C9200-24P-A
C9200-24P-A is the Catalyst 9200 24-port PoE+ Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
Cisco · Cisco Catalyst 9200
C9200-48T-E
C9200-48T-E is the Catalyst 9200 48-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its...
- Ports
- 48 ports data
- Throughput
- 176 Gbps
- Uplinks
- Modular uplink options
- Stacking
- 160 Gbps
- MAC Table
- 32,000
- Default primary AC power supply
- PWR-C6-125WAC
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

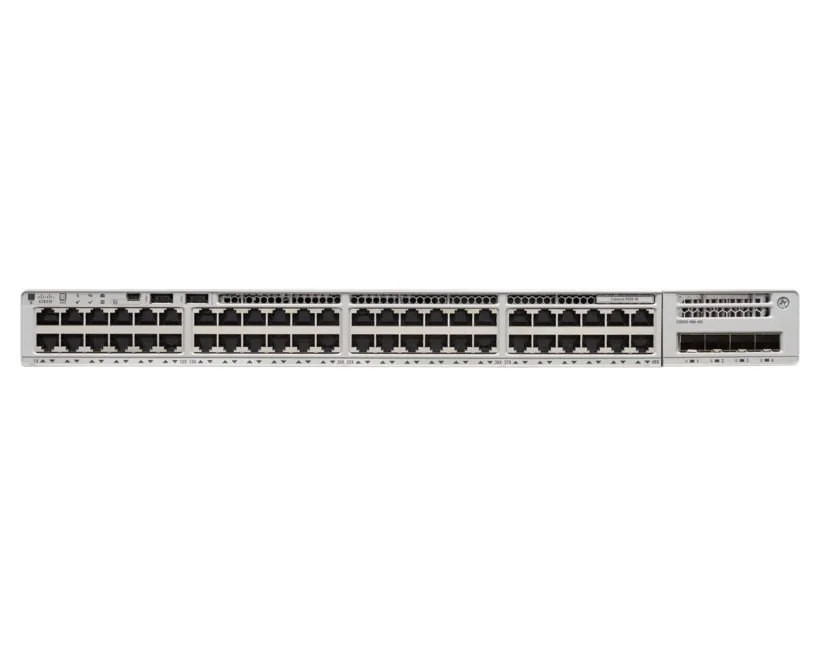

C9200-48T-E Overview
C9200-48T-E is the Catalyst 9200 48-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified. The published specification for C9200-48T-E lists 48 ports data and a published switching capacity of 176 Gbps. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning C9200-48T-E Changes
Table Sizes Checked Against the Design
A Total number of MAC addresses of 32,000 on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Port Layout Confirmed Before You Commit
48 ports data on this part number, so the closet design is checked against the real layout rather than against a family datasheet that covers several models.
Rated Performance Written Into the Quotation
176 Gbps published for C9200-48T-E as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
One Managed Unit Instead of Several
stacking bandwidth of 160 Gbps on this model lets a multi switch closet be configured monitored and upgraded as a single device, which cuts the work in every change window.
Uplink Capability Settled at Order Not at Install
Modular uplink options on C9200-48T-E, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
Problems It Solves
Pain Points C9200-48T-E Removes
- A uniform branch standard that has to be bought in small repeat quantities
- Uplink type fixed at purchase and discovered wrong at install
- PoE capacity sized for phones and now carrying cameras and access points
- Performance taken from a family datasheet rather than from this part number, where the published switching capacity is 176 Gbps
- Uplink capability fixed at purchase and found insufficient once the access layer behind it was refreshed
Who It Is For
Who Benefits Most From C9200-48T-E
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Machine Builders
Replacing an installed component with one that behaves identically to the unit removed
Campus Network Teams
Running one access standard across buildings of very different ages
Specifications
C9200-48T-E Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
|---|---|
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C6-125WAC |
| Fans | FRU redundant |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 4 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching capacity | 176 Gbps |
| Forwarding rate | 261.9 Mpps |
| Mean time between failures (hours) | 571,440 |
Supply Terms
How C9200-48T-E Is Supplied
| Part Number | C9200-48T-E |
|---|---|
| Brand | Cisco |
| Category | Cisco Catalyst 9200 |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
C9200-48T-E Against Other Models in Cisco Catalyst 9200
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | C9200-48T-E | C9200-24P-A | C9200-24P-E | C9200-24T-E |
|---|---|---|---|---|
| Ports | 48 ports data | 24 ports full PoE+ | 24 ports full PoE+ | 24 ports data |
| Throughput | 176 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
| Uplinks | Modular uplink options | Modular uplink options | Modular uplink options | Modular uplink options |
| Stacking | 160 Gbps | 160 Gbps | 160 Gbps | 160 Gbps |
| MAC Table | 32,000 | 32,000 | 32,000 | 32,000 |
| Default primary AC power supply | PWR-C6-125WAC | PWR-C6-600WAC | PWR-C6-600WAC | PWR-C6-125WAC |
| Product page | View C9200-48T-E | View C9200-24P-A | View C9200-24P-E | View C9200-24T-E |
Use Guide
Deployment Guide for C9200-48T-E
Confirm the Full Part Number
Check C9200-48T-E character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Cisco Catalyst 9200
C9200-24P-E
C9200-24P-E is the Catalyst 9200 24-port PoE+ Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-24T-E
C9200-24T-E is the Catalyst 9200 24-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-48P-A
C9200-48P-A is the Catalyst 9200 48-port PoE+ Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
C9200-48P-E
C9200-48T-E is the Catalyst 9200 48-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-48T-A
C9200-48T-A is the Catalyst 9200 48-port Data Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
C9200L-24P-4G-A
C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches exte
C9200L-24P-4G-E
C9200L-24P-4G-E is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches ext
Where It Goes
Industries That Deploy It
Enterprise Campus
Access, distribution and wireless supplied to one standard so every closet in every building behaves the same way.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Data Center Switching Build
A cabinet is commissioned as a unit, so it should be supplied as one. Switches, optics, rails and power leads belong in the same consignment.
Reference
Project Cases and Guides
University Campus Wi-Fi Density Upgrade
Lecture theatres and the library could not carry the client counts actually present, while the work could only happen during vacations
System Integrator Data Center Tender
The tender required a firm price and date at submission, months before any award, across a bill of materials of several hundred lines
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
Access Point Mounting and Installation
Wireless installs are rarely delayed by the access point. They are delayed by the mount, the power class or the cable that feeds it.
Network Refresh Planning Checklist
Refresh programmes fail on supply far more often than on design. This is the sequence that keeps a phased rollout on its dates.
FAQ
C9200-48T-E Frequently Asked Questions
Is C9200-48T-E New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for C9200-48T-E Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for C9200-48T-E
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does C9200-48T-E Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
What Performance Is C9200-48T-E Rated For
The published switching capacity is 176 Gbps. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With C9200-48T-E
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
Can C9200-48T-E Be Stacked With Other Switches
The manufacturer lists stacking bandwidth of 160 Gbps for this model. Stacking cables are a separate line and are quoted with the switches so a multi switch closet arrives complete.
Does C9200-48T-E Supply Power Over Ethernet
The manufacturer does not publish an available PoE figure for this model, which normally indicates a data only variant. Where powered devices are in the design, confirm the port type letter in the part number before ordering.
What Table Sizes Does C9200-48T-E Carry
The published Total number of MAC addresses is 32,000. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Request Pricing for C9200-48T-E
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
