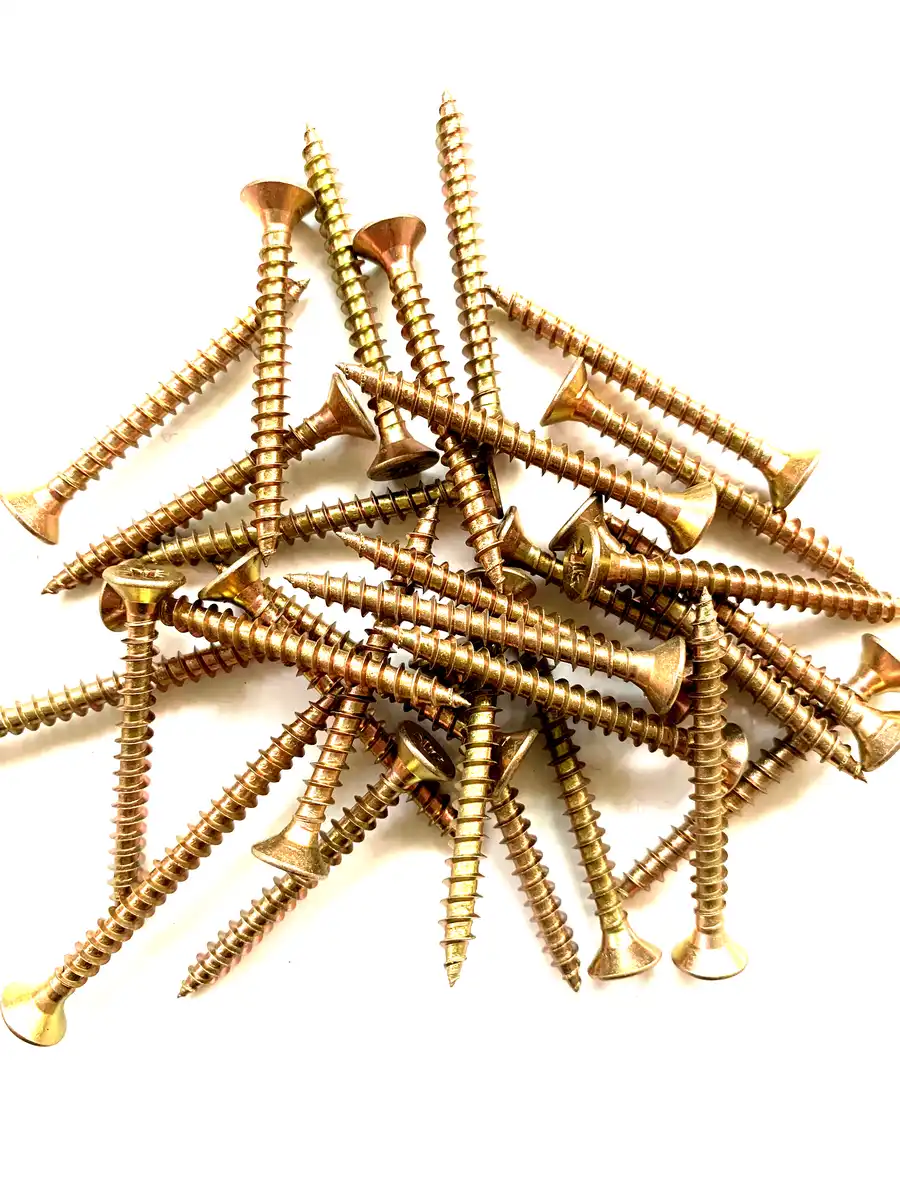

Yellow Zinc Double Countersunk Head Chipboard Screw
Yellow zinc chipboard screw with a ribbed double countersunk head for panel work.
The double countersunk head is the detail that makes this a chipboard screw rather than a general wood screw. A second, shallower cone under the main countersink, with ribs cut into it, cuts the panel face as the head arrives instead of dragging the laminate upwards. The result is a head that finishes flush in particleboard without a visible lip.
Yellow zinc is the traditional finish for this family. It gives reasonable indoor protection and it is consistent enough batch to batch that a furniture manufacturer can rely on the colour match across a production run.
Why buyers choose it
- Ribbed double countersunk head cuts the panel face clean instead of lifting it
- Sharp thread starts in particleboard and MDF without a pilot in most cases
- Yellow zinc gives a consistent colour for visible furniture fixings
- Carbon or alloy steel with grade classes up to 10.9
Send the panel or masonry you are fixing into, the drive you run and the head finish and the size will be confirmed against the closest standard before quoting. Samples of this item are free of charge.
Specification
| Full Product Name | Yellow Zinc Double Countersunk Head Chipboard Screw |
|---|---|
| Standard | ASME, ASTM, IFI, ANSI, DIN, BS, JIS |
| Material | Carbon Steel, Alloy Steel |
| Grade / Class | 4.6, 4.8, 5.6, 8.8, 10.9, SAE J429 Gr. 2, Gr. 5, Gr. 8, A307 A/B, A394, A449 |
| Thread | M, UNC, UNF, BSW |
| Finish | Self Colour, Plain, Zinc Plated (Clear/Blue/Yellow/Black), Black Oxide, Nickel, Chrome, HDG |
| Packing | 15 KGS/CTN, 48 CTN/Solid Wood Pallet |
| Loading Port | Shanghai or Ningbo |
| Minimum Order | 500 kg |
| Payment | T/T, L/C |
| Samples | Free of charge |
| Main Markets | EU, USA, Canada, South America |
Specification as published by Haiyan Ehons Industrial Co., Ltd.. Head diameter, rib pattern and drive size are all quotable against a panel sample.
Technical detail
| Standards | Produced to ASME, ASTM, IFI, ANSI, DIN, BS and JIS references. |
|---|---|
| Material | Carbon steel or alloy steel. |
| Grade class | 4.6, 4.8, 5.6, 8.8 and 10.9; SAE J429 Gr.2, Gr.5 and Gr.8; ASTM A307 A/B, A394 and A449. |
| Thread | Metric, UNC, UNF and BSW. |
| Finish | Yellow zinc as standard; self colour, plain, clear, blue or black zinc, black oxide, nickel, chrome and hot dip galvanised also available. |
Problems this screw solves
Laminate lifts around the head
The ribs under the second cone cut the face so the head seats flush instead of pulling material up with it.
Board splits on the edge
A sharp thread that cuts rather than wedges, plus a pilot hole near edges, keeps particleboard intact.
Finish colour varies between batches
Yellow zinc from one finishing plant is far more consistent than sourcing across several suppliers.
Where it is used
- Cabinet carcass and flat-pack furniture assembly
- Fixing chipboard flooring to timber joists
- Shopfitting and display unit construction in MDF
- Panel-to-timber fixings in joinery workshops
Who buys it
Furniture and cabinet manufacturers, shopfitters, joinery workshops and panel product distributors.
Quality control priorities
Rib formation under the head is checked visually on samples from every run, since ribs that are only partly formed do not cut the panel face and the screw then behaves like an ordinary countersunk wood screw. Plating colour is compared against a retained reference sample for batch consistency.
Customisation
Head diameter, rib pattern and thread length are all adjustable. For furniture production the usual special is a shortened thread with a plain shank so the screw clamps two panels rather than threading through both.
How it compares
Against the square drive serrated version
That one changes the drive and interrupts the thread to reduce torque. This one is the standard yellow zinc article.
Against a countersunk Torx wood screw
The wood screw is aimed at solid timber and has no ribbed underhead.
Against a drywall screw
A drywall screw has a bugle head designed to sink into paper. It is not a panel fixing.
Installation notes
Pilot near edges
Within roughly 50 mm of a panel edge, pilot at core diameter.
Let the ribs cut
Drive at a moderate speed so the ribs shear the face rather than burnishing it.
Stop at flush
The head is designed to finish flush. Continuing past that point crushes the board core and loses holding power.
Keep colour batches together
Where the head is visible on a finished piece, draw from one production batch for the whole run.
Frequently asked questions
What is a double countersunk head?
Do I need to pre-drill chipboard?
Is yellow zinc suitable outdoors?
What grade classes are available?
How is it packed?
What is the minimum order?
