EPC Type Transducer500AC Electro Pneumatic Transducer Order
A straight catalogue order for the 500-AC: the 4-20 mA input, 3-15 psi output, 180 ohm configuration that matches a standard 20-100 kPa actuator spring.
Controlair Type Transducer 500-AC configuration, standard EAA nameplate
What The Customer Needed
The buyer needed a quantity large enough to standardise their instrument store on one transducer part number, which meant every unit had to be identical and the nameplate data had to be legible for the technicians who would later fit them.
How It Was Built
A single build of the one configuration, each unit labelled with input, output and supply pressure so the specification can be read off the valve without paperwork.
What The Photographs Show

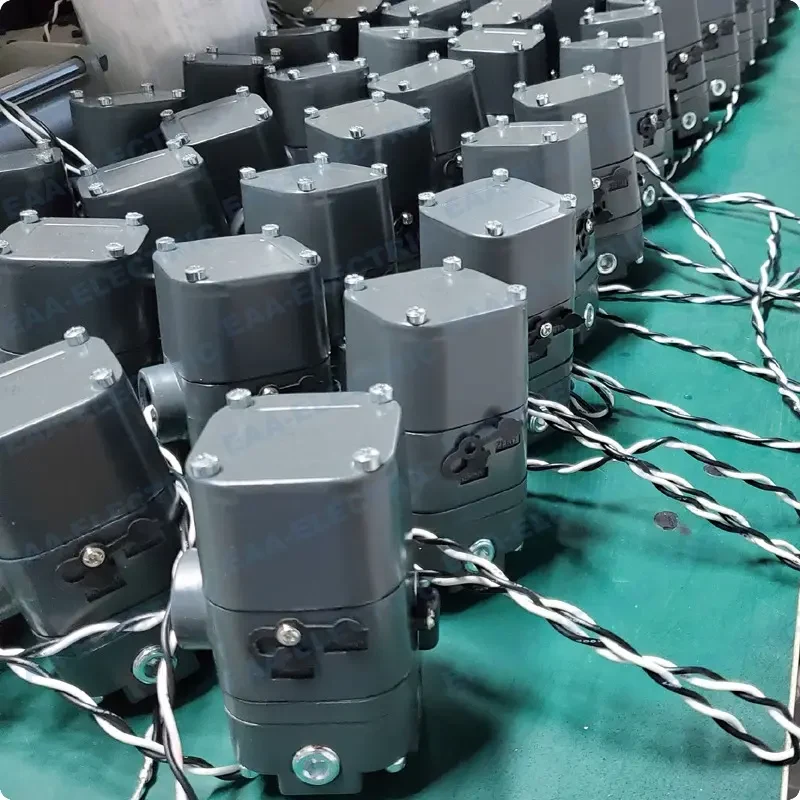

Units were calibrated individually and then grouped for a batch check. The photographs show the finished transducers packed in rows, the arrangement used for the final visual and label inspection before cartoning.
How It Finished
One part number covering the buyer's standard-spring valve population, replacing several incompatible spares.
The Models Behind This Order
Controlair Type Transducer500AC Electro Pneumatic Transducer
500-AC configuration, 4-20 mA in, 3-15 psi out, 180 ohms
View specifications →
Controlair Type Transducer500X Electro Pneumatic Transducer
Controlair pattern I/P transducer, 4-20 mA in, 3-15 to 3-120 psi out
View specifications →
Controlair Type Transducer500X Electro Pneumatic Converter
Controlair pattern E/P converter, 0-5 V, 1-9 V and 0-10 V inputs
View specifications →
Controlair Type Transducer500ACD Electro Pneumatic Transducer
500-AC range with a plug-in electrical termination
View specifications →Questions About OEM Orders
Can this configuration be supplied under our own brand
Yes. Nameplates are printed to customer artwork and part numbering and checked against the build before fitting.
How is a batch kept consistent
The whole quantity is built in one run and calibrated consecutively on the same bench against the same standard current generator and 0.1 class pressure gauge.
What is the specification on this order
500-AC configuration, standard EAA nameplate.
Can we order a different range in the same body
Yes. The published selection table or coding system for this pattern lists the available input signals, output ranges and terminations.
Order The Same Configuration
Send the range, the termination and the quantity, and the quotation comes back against the published selection table for this pattern.
