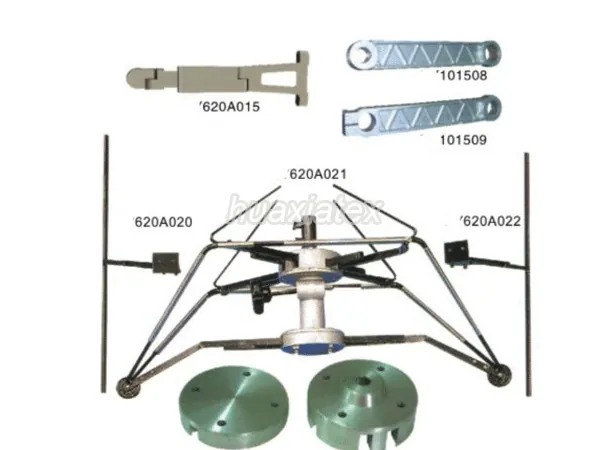

Take Down Device for Circular Knitting Machines (Item 6)

Item 6 of 10 listed under take down devices under this product name. Items sharing a name are told apart by the photograph, so check the photograph against your old part before ordering.

Take down rollers, frames and accessories that pull the fabric away from the needle line at a steady rate.

Part groupTake Down Devices
Supplied byHUAXIATEX, Beijing

Request a Quote Email Us

Send a photo of the old part beside a ruler and we will confirm the match before you order.

Product Overview

Take Down Device for Circular Knitting Machines (Item 6) is listed in our take down devices group for circular knitting machine maintenance. Take down rollers, frames and accessories that pull the fabric away from the needle line at a steady rate.

What This Part Does

The take down applies the downward force that pulls the newly formed loops off the needles and keeps the fabric tube under even tension as it is wound. If that force is uneven or too low, loops are not cleared cleanly and the fabric shows distorted courses.

Take down tension also interacts with loop length. Increasing take down stretches the fabric lengthwise, which changes the measured weight even though the machine setting has not moved.

Key Benefits

Even take down force across the fabric width
Rollers and accessories to rebuild a worn take down
Restores consistent course spacing and roll build

Application Scenarios

Open width and tubular fabric take down
Terry and fleece machines that need higher take down force
Machine rebuilds where the take down has worn

Who It Is For

Mills seeing distorted courses or uneven roll build
Maintenance teams rebuilding take down assemblies
Machine dealers preparing used machines

Problems It Solves

Distorted courses where loops are not cleared cleanly
Fabric rolls building unevenly across the width
Fabric weight readings changing because take down tension has drifted

Specifications

Specifications for Take Down Device for Circular Knitting Machines (Item 6)
Product name	Take Down Device for Circular Knitting Machines (Item 6)
Part group	Take Down Devices
Machine type	Circular knitting machines
Supplier	Beijing Huaxiatex Co. Ltd., Beijing, China
Listed reference photo	Supplied from our own product records

Only values printed on the product name and in our own records are listed here. Dimensions, material and hardness are confirmed against your machine before you order, not assumed.

What to Send Us When You Order

Machine builder, model and diameter
Which part of the take down you need, for example roller or frame part
A photo of the assembly fitted
Fabric type and whether the machine runs open width or tubular

Chat on WhatsApp

Use Guide

Confirm the reference against the old part and the machine plate before ordering a full machine set.
Order one complete set per machine where the part is fitted in multiples, so wear is even across the fabric.
Clean the mounting position before fitting. Fly and old oil are the most common cause of a new part not seating.
Check the machine on a short run and measure the fabric before returning it to full production.
Record the reference against the machine so the next reorder does not have to be identified again.

Take Down Devices Questions

Can take down tension change fabric weight?

Yes. More take down stretches the fabric lengthwise, so the measured grams per square metre falls even though loop length has not changed. Set take down first, then set loop length.

How do I know the take down needs rebuilding?

Uneven roll build across the width, and courses that look distorted at one side, are the usual signs.
