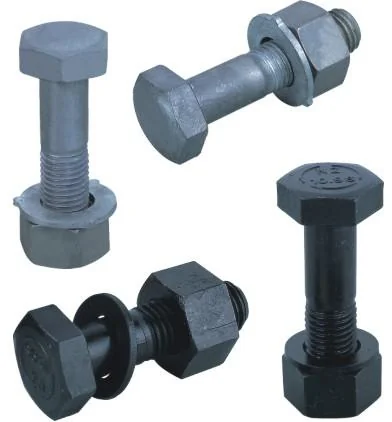

Factory photograph of high tensile bolt & nut assemblies. Finishes shown are examples — all fifteen catalogue finishes are available on this item.
High Tensile Bolt & Nut Assemblies
High tensile bolt and nut assemblies, quoted as a set rather than three line items. Bolt, nut and washer are supplied in matching grade and finish so nothing is mismatched on site.
- M0.8 – M42
- 2mm – 3000mm
- Bolt, nut and washer supplied as a matched assembly
- Grades 8.8, 10.9 and 12.9
- M4–M30, 6mm–300mm
Specification
- Item code
- BF-163
- Product group
- High Tensile Bolts
Item code BF-163 follows our internal catalogue reference — quote it and we know exactly which line you mean. Figures shown are the specification range this item is made to, not a stock list.
Selection options
Every option below can be specified against this item. Head and drive are chosen independently of each other, and of the point and thread form.
| Head types | Options |
|---|---|
| Available | Flat · Pan · Hex washer head · Hex washer flange · Bugle · Wafer · Pan washer · Oval · Flower · Truss · Round |
| Drive types | Options |
|---|---|
| Available | Phillips · Square · Pozidriv · Square + Phillips · Torx · Slotted · Phillips + slotted |
| Point types | Options |
|---|---|
| Available | TEK#1 · TEK#2 · TEK#3 · TEK#4 · TEK#5 · Type 17 |
| Thread forms | Options |
|---|---|
| Available | Type-A · BSB · CSB · Hi-low · Machine · Double |
| Surface finishes | Options |
|---|---|
| Available | Plain · Zinc plated · Colour zinc · Blue zinc · White zinc · Black zinc · Black phosphate · Grey phosphate · Black oxide · Dacrotized · Ruspert · Xylan · Nickel · Bronze · Spray paint |
| Additional requests | Options |
|---|---|
| Available | Serration under head · Without washer · With bonded washer · With PVC washer · With steel + EPDM washer · With rubber washer · With head mark · With wing · Slotted + wing |
Questions we get asked about this item
Why does the nut grade matter?
A nut weaker than the bolt strips before the bolt reaches its design load, so the connection never develops the strength it was drawn for.
Can you supply to a customer drawing?
Special design to drawing sits alongside IFI, DIN, JIS and GB across the bolt range.
