Laser Welded Tuck Point for Stone
Laser-welded joint cutting in granite and marble
Slot cutting loads a segment sideways, which is where sintered joints fail and laser welds hold. Dia 105-230 mm covers the joint and anchor slot work stone masons do on site.
What Laser Welded Tuck Point for Stone Is For
The plant specification sheet describes this tool as for fast cutting granite, marble and other natural stones with laser welded segments. That is exactly where it belongs, and where it stops.
The specification table lists 7 sizes, Item IDs SA105TP to SA230 TP.
Laser Welded Tuck Point for Stone is the whole of the Tuck Point for Stone category, so specification work happens inside the item rather than by picking between siblings.
How It Is Built
Bond selected per enquiry
We do not ship a single general-purpose bond. Please inform your stone information, we will choose the best bonding for you.
Item ID series
Ordering runs on the SA105TP to SA230 TP series, so repeat orders return the same specification.
Sizes beyond the standard list
Other sizes are available upon customer's request.
Export handling
Packed for export and shipped from Shangqiu, Henan. Give us your destination port with the enquiry.
Sizes and Item IDs
Taken from the plant specification sheets. Where a value is not published we say so rather than fill it in.
| Item ID | Diameter | Bore size | Segment | ||
|---|---|---|---|---|---|
| mm | inch | mm/inch | thickness (mm) | height (mm) | |
| SA105TP | 105 | 4" | 20.00/ 0.787" | 6.4 | 7/9/10 |
| SA125 TP | 125 | 5" | 22.23/ 0.875" | 6.4 | 7/9/10 |
| SA150 TP | 150 | 6" | 22.23/ 0.875" | 6.4 | 7/9/10 |
| SA180 TP | 180 | 7" | 22.23/ 0.875" | 6.4 | 7/9/10 |
| SA200 TP | 200 | 8" | 22.23/ 0.875" | 6.4 | 7/9/10 |
| SA230 TP | 230 | 9" | 22.23/ 0.875" | 6.4 | 7/9/10 |
- Product family
- Stone Processing
- Category
- Tuck Point for Stone
- Bond
- Please inform your stone information, we will choose the best bonding for you.
- Country of manufacture
- China (Shangqiu, Henan)
- Private label
- Laser marking on the steel core available for OEM orders

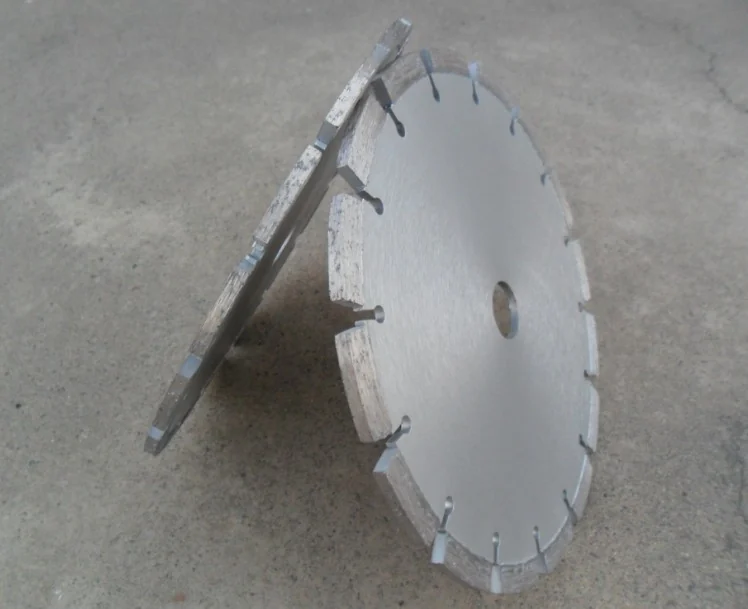

More Views of Laser Welded Tuck Point for Stone
Photographs supplied by the plant. What you see is the tool as produced, not a render.
Who It Is For
- Restoration masons re-pointing stone facades
- Stone workshops cutting drainage and anchor slots
Every one of these buyers gets the same first question from us: what material, what machine, what size.
The Problem It Solves
Standard blades are too thin to hold a straight slot and the segment shears off under side load.
Laser Welded Tuck Point for Stone is the answer to that in the tuck point for stone part of the range: laser-welded joint cutting in granite and marble.
For fast cutting granite, marble and other natural stones with laser welded segments.
Why This Version and Not Another
Laser-welded segments survive the side load of slot cutting
Applies across the tuck point for stone series, including this item.
Double-thickness segment holds slot width over the life of the blade
Part of how this category is built.
Item IDs SA105TP-SA230TP cover the common grinder sizes
Part of how this category is built.
Use Guide
Confirm the fit
Check diameter, bore and segment dimensions against the table above and against your machine.
Set the parameters
Start at the machine builder's figures for your material, then adjust feed until the cut runs quiet and the surface stays clean.
Keep it free-cutting
If the tool stops cutting and the face goes shiny, it has glazed. Dress it, then tell us — that means the bond should change.
Order by Item ID
Quote the Item ID on repeat orders so you get the same specification as last time.
Compared With the Rest of the Category
Tuck Point for Stone holds 1 item in the programme. The difference between them is geometry and construction, not marketing.
- Arrow Segment Diamond Grinding Cup Wheel for Stone — arrow segments for fast stock removal on stone
- Continuous Rim Diamond Grinding Cup Wheel for Stone — continuous rim for the smoothest ground surface
- Continuous Rim Diamond Grinding Cup Wheel with Slot — slotted continuous rim balancing finish and cooling
- Double Row Diamond Grinding Cup Wheel for Stone — double row cup wheel for heavier stock removal
- Flower Turbo Diamond Grinding Cup Wheel for Stone — flower turbo geometry for aggressive stone grinding
- L Segment Diamond Grinding Cup Wheel for Stone — l segments silver-brazed for side grinding
Laser Welded Tuck Point for Stone — Questions We Get Asked
What sizes does Laser Welded Tuck Point for Stone come in
The standard programme lists 7 sizes on this page, Item IDs SA105TP to SA230 TP. Other sizes are available upon customer's request.
Which bond will you supply for my material
The bond is set per enquiry rather than per catalogue number. Please inform your stone information, we will choose the best bonding for you.
What do you need to quote Laser Welded Tuck Point for Stone
The material you process, the machine and its power, the size and bore you need, and the quantity. With those four we quote a specification rather than a guess.
What is the lead time and minimum order for Laser Welded Tuck Point for Stone
Lead time and minimum order depend on whether the size is in the standard programme or needs a production batch. Ask the sales office for this item — we do not publish a single figure that would be wrong half the time. (TBC)
