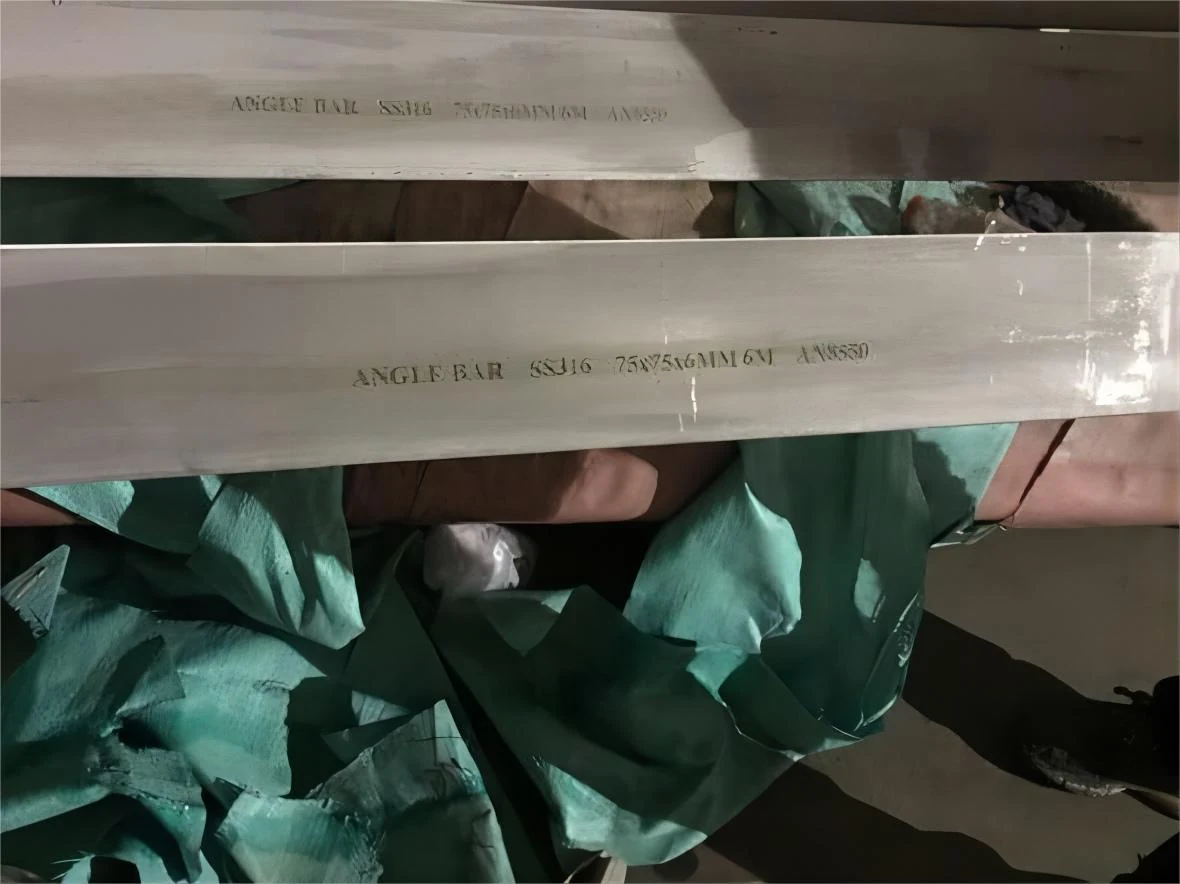

SS316 Equal Angle Bar 75 x 75 x 6 mm x 6 m
This is a 316 stainless equal angle bar in 75 x 75 x 6 mm section at 6 m length, produced to JIS, AISI and ASTM chemical requirements. It is the structural member used where a painted carbon steel angle would corrode…
What This Product Is For
This is a 316 stainless equal angle bar in 75 x 75 x 6 mm section at 6 m length, produced to JIS, AISI and ASTM chemical requirements. It is the structural member used where a painted carbon steel angle would corrode away, typically inside chemical plant, metallurgical works and water treatment structures. Length is made to order rather than cut from stock random bar.
Key Benefits
- Molybdenum bearing 316 chemistry resists chloride pitting that destroys painted carbon steel angle
- Equal leg 75 x 75 mm section drops straight into standard structural detailing
- Thickness held to plus minus 0.02 mm so bolt holes and gussets line up without shimming
- Length made to your request, which removes offcut waste on long runs
- Supplied direct from Xi'an with 7 to 20 day delivery after order confirmation
Who It Is For
- Structural fabricators building stainless frames for process plant
- Water treatment contractors specifying corrosion resistant supports
- Metallurgical and chemical plant maintenance teams
- Stockists carrying 316 structural sections
Problems It Solves
- Painted carbon steel angle that has to be recoated every few years inside a wet plant
- Section thickness variation that makes bolted connections sit proud
- Fixed random lengths that leave unusable offcuts on a long structure
- Mixed grade deliveries where 304 is substituted for 316
Application Scenarios
- Support frames and walkways inside chemical process buildings
- Metallurgical plant structures exposed to acid mist and dust
- Water and wastewater treatment tank frames and launder supports
- Equipment skids that have to be washed down with chlorinated water
Specifications
Every value below is taken from the published product data. Where a figure is not published it is left out rather than estimated.
| Standard | JIS, AISI, ASTM |
|---|---|
| Grade | Stainless steel 316 |
| Model Number | 316 |
| Type | Equal angle bar |
| Section | 75 x 75 x 6 mm |
| Standard Length | 6 m, or to your request |
| Thickness Tolerance | plus minus 0.02 mm |
| Application | Chemical industry, metallurgy, water |
| Place of Origin | Shaanxi, China |
| Packing | To customer requirement or export standard |
| Delivery | 7 to 20 days after confirmation |
Technical Features
- Equal angle profile in 316 stainless steel
- Standards JIS, AISI and ASTM
- Section 75 x 75 x 6 mm
- Thickness tolerance plus minus 0.02 mm
- Chemistry for 316 with carbon 0.045 percent maximum, silicon 1.00 percent maximum, manganese 2.00 percent maximum
Materials
- 316 austenitic stainless steel
Manufacturing Process
- Hot rolling
- Straightening
- Cutting to length
Quality Control
- Chemical composition checked against the 316 ranges for carbon, silicon, manganese, phosphorus, sulphur, nickel, chromium and molybdenum
- Leg length and thickness measured against the 75 x 75 x 6 mm section
- Thickness tolerance verified to plus minus 0.02 mm
- Length confirmed against the ordered cut
Customisation Options
- Length cut to your requirement instead of the standard 6 m
- Other austenitic grades from the same chemistry table, including 201, 301, 302, 304 and 304L
- Packing to your specification or to export standard
Use Guide
- Specify the finished length on the order so the bar is cut at the mill rather than on site
- Use 316 or 316L filler when welding into a stainless frame, and pickle the weld afterwards
- Avoid carbon steel clamps and grinding wheels that will embed iron into the surface
- Isolate the angle from carbon steel fasteners to prevent galvanic attack
How It Compares With the Alternatives
| 304 equal angle bar | 316 carries molybdenum, so it holds up far better against chloride pitting in wet or coastal plant |
|---|---|
| Galvanised carbon steel angle | Stainless angle does not need recoating and does not shed zinc into a process stream |
| Unequal angle bar | Equal legs simplify detailing and let the same member be used in either orientation |
Related Products
Nickel 200 Seamless Pipe
Nickel 200 seamless pipe is commercially pure wrought nickel supplied to ASTM B161 under UNS N02200. It is the standard choice for…
View specifications →
Nickel Alloy 625 Exhaust Tubing
Nickel alloy 625 exhaust tubing is cold worked seamless tube covered by ASTM B444 under UNS N06625, also carried as BS 3074 NA21…
View specifications →
Monel Alloy K500
Monel Alloy K500 is a nickel copper superalloy with high strength and strong corrosion resistance in marine environments. It is…
View specifications →
Nickel Alloy 200 and 201
Nickel Alloy 200 is 99.6 percent commercially pure wrought nickel, designated UNS N02200 and W.Nr. 2.4060 and 2.4066. Nickel 201…
View specifications →SS316 Equal Angle Bar 75 x 75 x 6 mm x 6 m Questions
Can I order a length other than 6 m
What is the thickness tolerance
Which standards does the bar meet
How long is delivery
How is it packed for export
Can you supply other grades in the same section
Quote SS316 Equal Angle Bar 75 x 75 x 6 mm x 6 m
Send the size, wall or thickness, quantity and destination port. Certificates, packing and lead time are confirmed on the quotation.
