VW Parts
1H0 199 354K
| Vehicle brand block | VW Parts |
|---|---|
| Part type | Engine Component |
Fields that were empty in the original catalogue database are shown as not recorded. No specification on this page has been invented.
Product overview
VW Engine Component
The RUIFAN catalogue holds 1H0 199 354K as a engine component under VW Parts. Everything published on this page comes from the archived catalogue record for that reference.
It can be quoted on its own or, more usually, as one line inside a wider order covering the rest of the VW Parts block.
The part closes the bottom of the engine block, holds the oil when the engine is off and carries the drain plug and its thread. Flange flatness across the full perimeter is what decides whether it seals once it is fitted. The archived record for this reference holds the catalogue name, the vehicle brand block and the photograph; nothing further was stored, and nothing further is claimed here.
What this reference is used for
- Replacement of the corresponding original part
- Aftermarket catalogue coverage
- Workshop and rebuild programmes
Specifications
1H0 199 354K Data Sheet
Everything RUIFAN holds on this reference, taken from the archived catalogue record.
| Catalogue name | 1H0 199 354K |
|---|---|
| Part type | Engine Component |
| Vehicle brand block | VW Parts |
| Manufacturer | Ruian Ruifan Engine Parts Co Ltd, Ruian, Zhejiang, China |
| Quality systems | ISO 9001, TS 16949 (as recorded by RUIFAN) |
Not recorded in the archive
These fields were not stored in the original catalogue database. They are confirmed per order rather than estimated here.
Who it is for
Buyers Who Order This Reference
Engine rebuilders and workshops
Reconditioning shops and independent workshops that need the correct reference on the bench rather than a near equivalent.
Importers and private label brands
Brand owners who sell under their own label and need the factory behind that label to stay the same from season to season.
OE and tier programme buyers
Engineering buyers who arrive with a drawing or a sample instead of a catalogue number.
Problems it solves
What Brings Buyers to This Part
- The reference is needed to complete a repair and is not carried by the buyer's usual supplier.
- A catalogue gap has to be filled from a factory that will hold the reference rather than run it once.
Key benefits
Why Buy 1H0 199 354K From RUIFAN
Quotable as a single line or as part of a wider order across the VW Parts range
Manufactured under the quality systems recorded by RUIFAN: ISO 9001 and TS 16949
Backed by a factory that has manufactured parts of this type since 1994
Where the archive holds alternate numbers or application data, they are published on this page unchanged
Scheduled against a stated annual oil pan output of 500,000 pieces
Long-tail references consolidated with volume lines instead of being dropped
Materials and manufacturing
How This Engine Component Is Produced
The archived record does not state a material for this reference. RUIFAN produces both drawn steel and cast aluminum parts of this type, and the correct construction is confirmed against the part being replaced before production is scheduled.
Confirm construction
Material and method confirmed against the part being replaced or a supplied sample.
Form or cast
Drawn from sheet, or die, gravity or sand cast, according to what the original part is.
Machine and finish
Sealing faces, bores and threads finished to the reference.
Inspect and pack
Checked against the reference sample, then packed with the sealing face protected.
Manufacturing methods listed here are the ones recorded on the original RUIFAN services page: deep and shallow draw stamping; die casting, sand casting and gravity casting; chrome plating and vacuum metallization. The method used for a given reference is confirmed against the part being replaced.
Quality control
Quality Systems Behind This Reference
RUIFAN recorded ISO 9001 and TS 16949 quality systems on its original site. Certificate numbers and validity dates were not stored in the archived material and are supplied on request rather than stated here.
Sealing flange
Flatness across the full perimeter decides whether the part seals at all. It is the first thing to check on arrival.
Drain boss
Thread condition and squareness to the boss face, checked before packing.
Dimensional check
Against the reference sample for the catalogue number being run.
Packing
Flange protection specified per programme, because a bent flange makes a sound part unusable.
Customisation
If This Reference Is Not Exactly What You Need
The original RUIFAN site stated that the factory develops oil pans and other aluminum castings from customer-supplied samples or drawings. That route covers references that never made it into the catalogue, superseded parts whose tooling has been scrapped, and private-label variants of an existing part.
A physical sample is enough to start. Where no sample survives, a dimensioned drawing or a 3D file works. Tooling cost, lead time and ownership are agreed in writing before any work begins.
What to send with an enquiry
- The number stamped or cast into the part being replaced
- The vehicle, the engine code and the production year
- A photograph of the flange face and one of the drain boss side
- Annual quantity, or the quantity for a first order
- Destination market, which affects packing and documentation
Comparison
1H0 199 354K Against the Alternatives
How sourcing this reference from RUIFAN compares with the other routes a buyer has.
| Option | What you get | Where it falls short |
|---|---|---|
| RUIFAN catalogue supply | The reference held in a 136-number catalogue with the archive data published alongside it, produced in one plant with one packing standard. | Fields the original database never recorded are shown as not recorded rather than filled in. |
| Original equipment channel | Guaranteed fitment and full manufacturer documentation. | Highest unit cost, and older references are progressively withdrawn from supply. |
| Local pattern part supply | Short lead time and no import handling. | Coverage is usually limited to fast movers, so the long tail of a number family stays unsourced. |
| Used or reclaimed engine component | Lowest purchase cost, sometimes the only route for a withdrawn reference. | Flange flatness, thread condition and corrosion are unknown until it is on the bench. |
Use guide
Identifying and Fitting 1H0 199 354K
A working sequence for confirming the reference and fitting it without a repeat leak.
- Confirm the reference against the number on the part being replaced.
- Check the archive photograph against the part before ordering.
- Follow the vehicle manufacturer's fitting and torque procedure.
Torque figures, sealant specification and gasket type are set by the vehicle manufacturer for the engine concerned. Follow that procedure rather than a generic figure.
Questions About 1H0 199 354K
What vehicle does 1H0 199 354K fit?
The archived catalogue record lists this reference in the VW Parts block. No vehicle application table was stored for this reference in the original database, so none is shown. Send the vehicle, the engine code and the number from the old part and we will confirm against the catalogue before quoting.
What are the minimum order quantity and lead time for 1H0 199 354K?
Minimum order quantity, carton quantity and lead time were not recorded in the archived catalogue and are confirmed per order, because they depend on whether the reference is being run on its own or alongside other lines in the same family.
Do you have cross reference numbers for this part?
No alternate numbers were stored against this reference in the original database, so none are published here. Twenty of the 136 catalogue records do carry recorded alternates. If you hold a number you believe matches this part, send it with a photograph and we will check.
What is 1H0 199 354K made from?
The original catalogue record did not state a material for this reference, so none is published. RUIFAN produces both drawn steel and cast aluminum parts of this type, and the correct construction is confirmed against a sample or the part being replaced before quoting.
Can you supply this reference together with other VW lines?
Yes. The VW Parts block holds 52 references and they are normally quoted and shipped together. Consolidating is what makes low-volume lines viable in the first place.

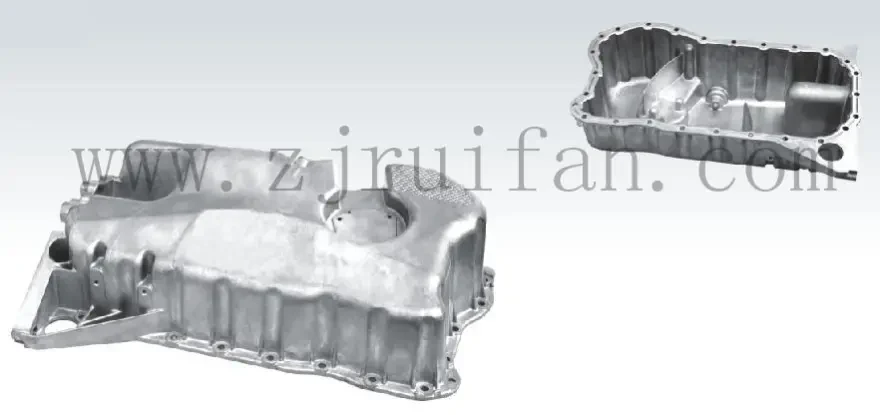

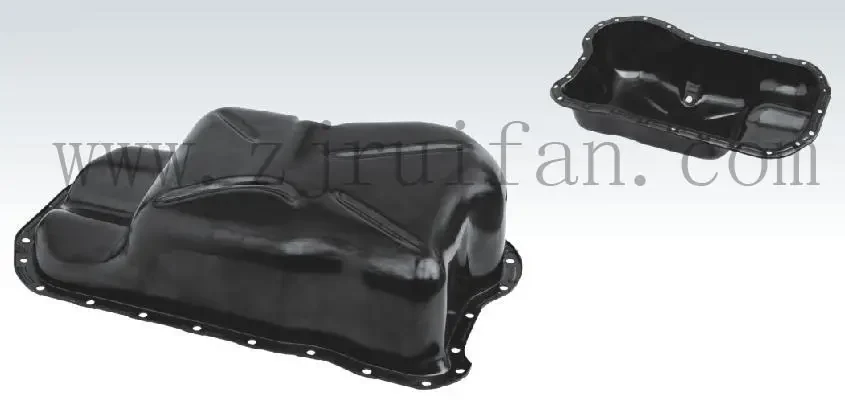

Related References in VW Parts
