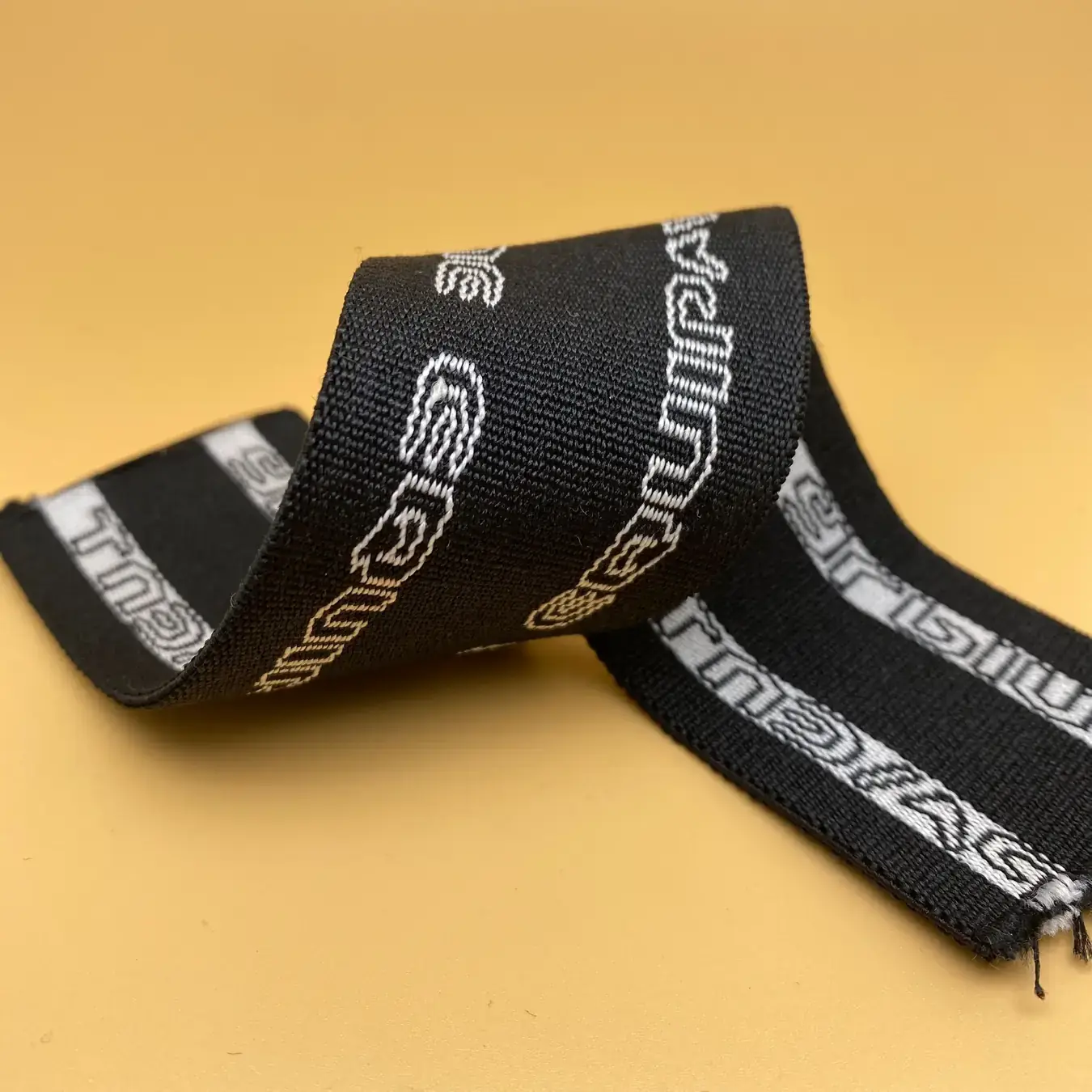

Elastic Webbing Tape No 4
Woven elastic tape that recovers to its original length, specified by stretch percentage rather than by feel.
What This Item Is
Elastic Webbing Tape No 4 is woven to order at the width and thickness you specify rather than picked from a stock range. Any width, and a thickness from 0.65 mm up to 2.5 mm unless you need something outside that. Shade is agreed on a woven sample before the bulk lot runs, and that lot covers the entire order. Sampling runs 3 to 7 days; the production window is 7 to 15 days from approval.
Key Benefits
- Roll lengths set to your cutting schedule
- Woven to your width and to a thickness anywhere from 0.65 mm to 2.5 mm
- Pantone colour matching against a number or against a swatch you send us
- One dye lot reserved for the whole order so shade does not drift mid-run
- Computer jacquard logo weaving available on the same tape
Problems It Solves
- Edges that curl once the tape is stretched and sewn
- Shade that drifts between the approved sample and the delivered rolls
- Suppliers who quote a price without committing to a date
Who It Is For
- Buyers who need the second order to match the first exactly
- Brands running their own label through a contract assembler
- Production planners who need a delivery date quoted with the price
Application Scenarios
- Medical supports and compression straps
- Seating and upholstery suspension
- Adjustable pet accessories
- Waistbands, cuffs and shoulder straps
Technical Features
- SGS testing available before despatch
- Sample lead time of 3 to 7 days
- Production lead time of 7 to 15 days
- Stretch and recovery agreed as a written figure before production
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Elastic Webbing |
|---|---|
| Catalogue Reference | elastic-webbing-4 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester or polypropylene covering yarns over an elastic core
- Cotton faced constructions where the tape touches skin
- Pigment or Pantone matched dyed covering yarn
Quality Control
- Stretch and recovery measured on sampled lengths from each roll
- Tension monitored across the width to avoid side-to-centre variation
- Relaxed width recorded after setting, not while the tape is under tension
- SGS testing arranged on request before shipment
What You Can Change
- Soft or firm recovery depending on the application
- Jacquard branding woven across the elastic face
- Widths and thicknesses to your drawing
- Packing and roll length to suit your line
How This Item Is Made
- Core and covering yarn selection
- Colour matching and approval
- Weaving under controlled tension
- Setting and relaxation
- Stretch and recovery check
- Rolling, measuring and packing
How It Compares
Knitted elastic is softer and cheaper but narrows more when stretched. Woven elastic holds its width, which matters where the tape runs through a channel or a buckle.
Rigid tape gives a fixed length under load. Elastic is for anything that has to accommodate movement or a range of body sizes.
Cord is for drawstrings and toggles. Flat elastic webbing distributes pressure across a width instead of cutting a line into the material.
Use Guide
- Sew with a stitch that allows movement or the thread will break before the elastic does
- Store away from heat and direct light to protect recovery
- Cut from relaxed tape, never from tape held under tension on the roll
- Specify stretch as a percentage and state whether you measure relaxed or extended width
Other Elastic Tape References
Related Products
Questions Buyers Ask About Elastic Webbing Tape No 4
Can elastic webbing carry a woven logo
Yes. A computer jacquard brand name can be woven across the face. Bear in mind the pattern reads slightly differently relaxed and extended, so tell us which state matters to you.
Why does my elastic tape measure narrower than ordered
Almost always because it was measured under tension. We record relaxed width after setting and relaxation, and we recommend you measure the same way.
Can our logo be added to this tape
Either woven in with a computer jacquard plate, which survives washing and abrasion, or screen printed after weaving, which costs less to set up on short runs.
How is this item packed for export
50 yards per roll and 30 rolls per carton as standard, with some items on 500 yard rolls. We pack to your own list when you have one.
Which shipping and payment terms do you work on
EXW, FOB or CIF for shipping. Payment by T/T, Western Union or PayPal.
Ask About Elastic Webbing Tape No 4
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
