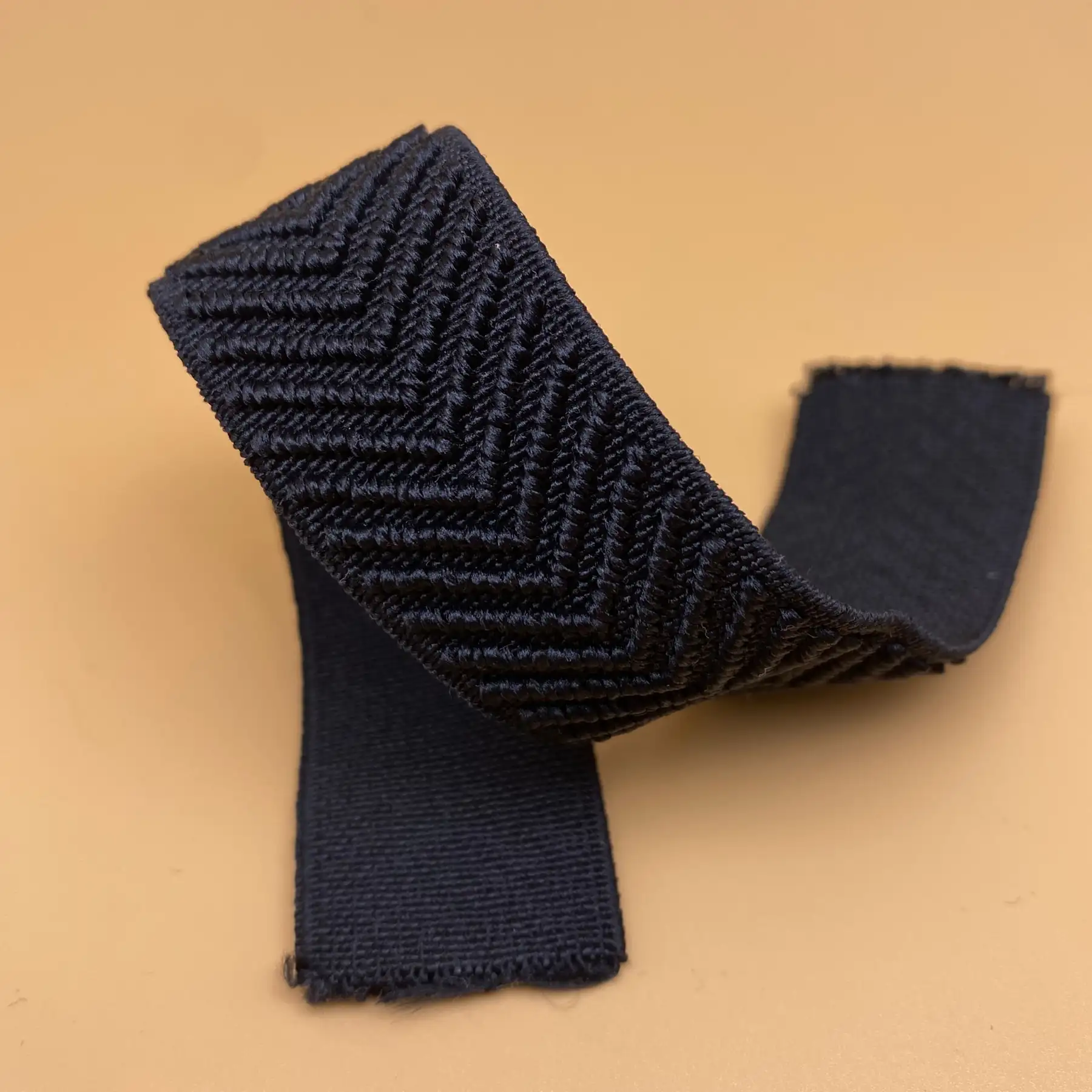

Elastic Webbing Tape No 5
Woven elastic tape that recovers to its original length, specified by stretch percentage rather than by feel.
What This Item Is
Elastic Webbing Tape No 5 is built around your specification rather than around what happens to be on the shelf. Thickness runs from 0.65 mm to 2.5 mm, or to your own figure, and width is set by your drawing. Pantone matching is standard, and reserving a single dye lot is what keeps the shade steady from first roll to last. Samples take 3 to 7 days and production 7 to 15 days once the sample is approved.
Key Benefits
- SGS testing arranged on request before shipment
- Samples in 3 to 7 days and production in 7 to 15 days
- Packed 50 yards per roll and 30 rolls per carton, or to your own packing list
- Shipped on EXW, FOB or CIF terms to suit your freight arrangements
- OEM and private label work is the normal order here, not an exception
Problems It Solves
- Elastic that loses recovery and leaves a slack strap after a few weeks
- Stretch that varies along the roll so cut pieces behave differently
- Rubber content that perishes in storage or under heat
Who It Is For
- Furniture and seating suppliers specifying suspension webbing
- Factories that buy narrow fabric to a drawing rather than from a catalogue
- Buyers who need the second order to match the first exactly
Application Scenarios
- Medical supports and compression straps
- Seating and upholstery suspension
- Adjustable pet accessories
- Waistbands, cuffs and shoulder straps
Technical Features
- Available with a jacquard woven brand name across the face
- Thickness woven from 0.65 mm to 2.5 mm to your drawing
- Roll lengths set to your cutting schedule
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Elastic Webbing |
|---|---|
| Catalogue Reference | elastic-webbing-5 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester or polypropylene covering yarns over an elastic core
- Cotton faced constructions where the tape touches skin
- Pigment or Pantone matched dyed covering yarn
Quality Control
- Stretch and recovery measured on sampled lengths from each roll
- Tension monitored across the width to avoid side-to-centre variation
- Relaxed width recorded after setting, not while the tape is under tension
- SGS testing arranged on request before shipment
What You Can Change
- Jacquard branding woven across the elastic face
- Widths and thicknesses to your drawing
- Packing and roll length to suit your line
- Stretch percentage specified to your requirement
How This Item Is Made
- Core and covering yarn selection
- Colour matching and approval
- Weaving under controlled tension
- Setting and relaxation
- Stretch and recovery check
- Rolling, measuring and packing
How It Compares
Knitted elastic is softer and cheaper but narrows more when stretched. Woven elastic holds its width, which matters where the tape runs through a channel or a buckle.
Rigid tape gives a fixed length under load. Elastic is for anything that has to accommodate movement or a range of body sizes.
Cord is for drawstrings and toggles. Flat elastic webbing distributes pressure across a width instead of cutting a line into the material.
Use Guide
- Cut from relaxed tape, never from tape held under tension on the roll
- Specify stretch as a percentage and state whether you measure relaxed or extended width
- Sew with a stitch that allows movement or the thread will break before the elastic does
- Store away from heat and direct light to protect recovery
Other Elastic Tape References
Related Products
Questions Buyers Ask About Elastic Webbing Tape No 5
What is the minimum order for elastic webbing
1000 metres per colour and width for standard production, with samples available in 3 to 7 days.
How do you specify elastic webbing
Give us the relaxed width, the thickness, the stretch percentage you need and whether recovery should be soft or firm. Those four figures describe the tape far better than a written description does.
What is the minimum order for this item
1000 metres per colour and width on standard production. Some constructions run from 100 metres, so tell us what you need and we will confirm rather than quote a blanket figure.
How quickly can we see a physical sample
3 to 7 days. Production follows in 7 to 15 days once you approve the sample and the colour.
Can you match our colour reference
Yes, to a Pantone number or to a swatch you post to us. You approve a woven sample before the bulk dye lot is committed.
Ask About Elastic Webbing Tape No 5
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
