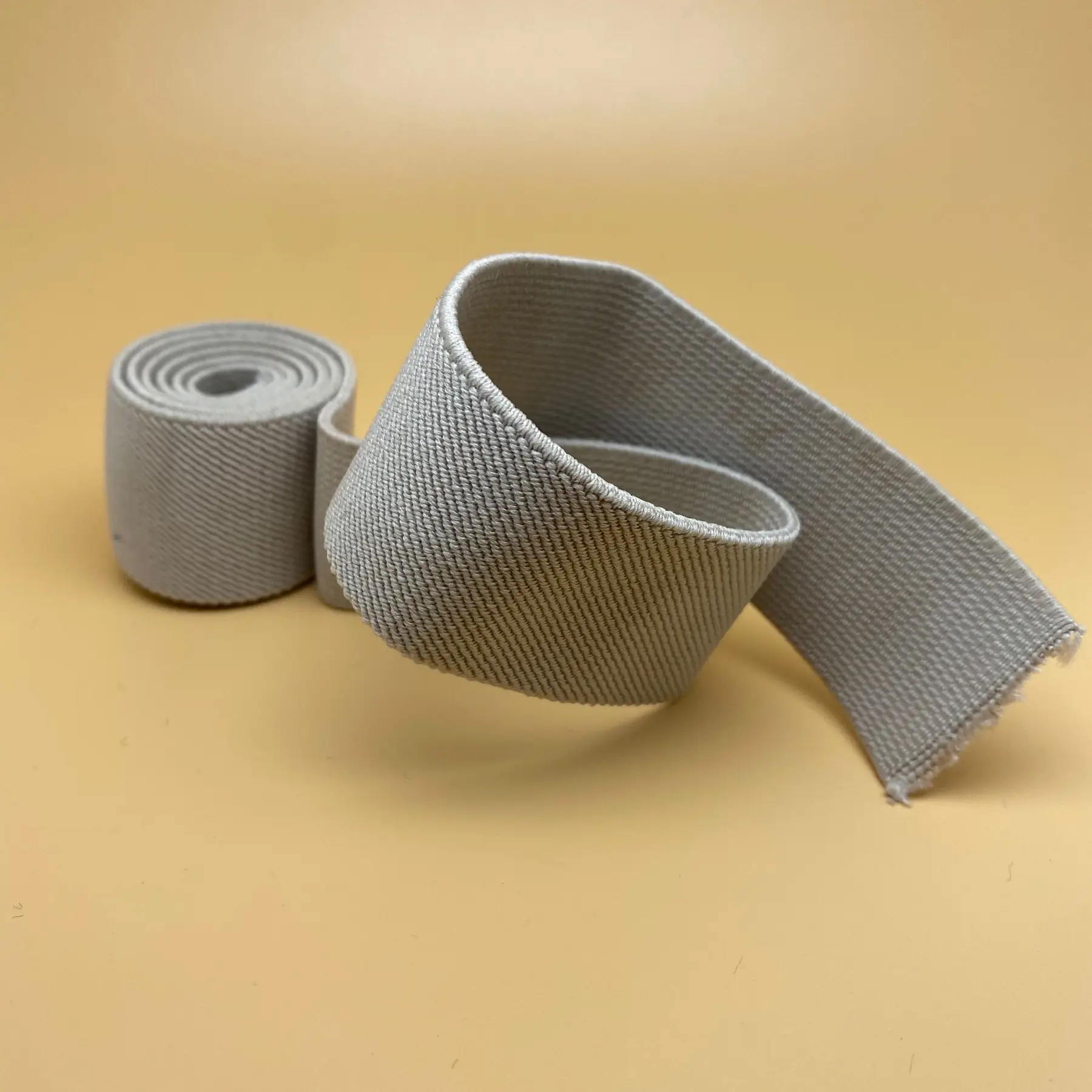

Elastic Webbing Tape No 8
Woven elastic tape that recovers to its original length, specified by stretch percentage rather than by feel.
What This Item Is
Elastic Webbing Tape No 8 is produced to a customer drawing, not to a catalogue size. Width is made to request and thickness sits anywhere between 0.65 mm and 2.5 mm. We match colour to Pantone or to your physical sample, then hold one dye lot across the full quantity. Sampling runs 3 to 7 days; the production window is 7 to 15 days from approval.
Key Benefits
- Packed 50 yards per roll and 30 rolls per carton, or to your own packing list
- Shipped on EXW, FOB or CIF terms to suit your freight arrangements
- OEM and private label work is the normal order here, not an exception
- Stretch and recovery agreed as a written figure before production
- Woven construction that keeps the edge flat when the tape is tensioned
Problems It Solves
- Elastic that loses recovery and leaves a slack strap after a few weeks
- Stretch that varies along the roll so cut pieces behave differently
- Rubber content that perishes in storage or under heat
Who It Is For
- Buyers who need the second order to match the first exactly
- Brands running their own label through a contract assembler
- Production planners who need a delivery date quoted with the price
Application Scenarios
- Medical supports and compression straps
- Seating and upholstery suspension
- Adjustable pet accessories
- Waistbands, cuffs and shoulder straps
Technical Features
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
- Width made to your request rather than to a fixed catalogue range
- Pantone matched colour, or matched to a physical swatch
- Computer jacquard logo weaving on the same construction
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Elastic Webbing |
|---|---|
| Catalogue Reference | elastic-webbing-8 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester or polypropylene covering yarns over an elastic core
- Cotton faced constructions where the tape touches skin
- Pigment or Pantone matched dyed covering yarn
Quality Control
- Stretch and recovery measured on sampled lengths from each roll
- Tension monitored across the width to avoid side-to-centre variation
- Relaxed width recorded after setting, not while the tape is under tension
- SGS testing arranged on request before shipment
What You Can Change
- Stretch percentage specified to your requirement
- Soft or firm recovery depending on the application
- Jacquard branding woven across the elastic face
- Widths and thicknesses to your drawing
How This Item Is Made
- Core and covering yarn selection
- Colour matching and approval
- Weaving under controlled tension
- Setting and relaxation
- Stretch and recovery check
- Rolling, measuring and packing
How It Compares
Knitted elastic is softer and cheaper but narrows more when stretched. Woven elastic holds its width, which matters where the tape runs through a channel or a buckle.
Rigid tape gives a fixed length under load. Elastic is for anything that has to accommodate movement or a range of body sizes.
Cord is for drawstrings and toggles. Flat elastic webbing distributes pressure across a width instead of cutting a line into the material.
Use Guide
- Sew with a stitch that allows movement or the thread will break before the elastic does
- Store away from heat and direct light to protect recovery
- Cut from relaxed tape, never from tape held under tension on the roll
- Specify stretch as a percentage and state whether you measure relaxed or extended width
Other Elastic Tape References
Related Products
Questions Buyers Ask About Elastic Webbing Tape No 8
Can elastic webbing carry a woven logo
Yes. A computer jacquard brand name can be woven across the face. Bear in mind the pattern reads slightly differently relaxed and extended, so tell us which state matters to you.
Why does my elastic tape measure narrower than ordered
Almost always because it was measured under tension. We record relaxed width after setting and relaxation, and we recommend you measure the same way.
What is the minimum order for this item
1000 metres per colour and width on standard production. Some constructions run from 100 metres, so tell us what you need and we will confirm rather than quote a blanket figure.
How quickly can we see a physical sample
3 to 7 days. Production follows in 7 to 15 days once you approve the sample and the colour.
Can you match our colour reference
Yes, to a Pantone number or to a swatch you post to us. You approve a woven sample before the bulk dye lot is committed.
Ask About Elastic Webbing Tape No 8
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
