Neon Light
LED Neon Flex Light
Silicone-bodied neon flex at 8 x 16 mm on DC 12 V or 24 V, rated IP68. Because the silicone body bends to any shape and the strip mounts straight onto engraved acrylic, it replaces most of the cost and fragility of glass neon signage.
- Custom shapes in 20-30 days
- Low MOQ on project work
- OEM and ODM private label
- Samples before bulk order
Key benefits
Why Buyers Choose This Product
IP68 rated, so it goes into exposed positions without a secondary housing
Silicone body bends to any shape for lettering and outlines
Mounts into an engraved acrylic board, removing most on-site labour
High temperature resistance, flame retardancy and ageing resistance
Quick installation that needs little crew training
Who It Is For
- Sign makers
- Retail and hospitality fit-out contractors
- Event and exhibition builders
Problems It Solves
- Glass neon breaking in transit and being unrepairable on site
- Acrylic-backed signage costing too much in sheet and labour
- Flex that yellows or cracks near a heat source
- New products needing crew retraining on every job
Where It Is Used
- Shopfront and interior lettering
- Hospitality feature walls
- Event and exhibition graphics
- Architectural outlining and wayfinding
Technical
How It Is Built
High temperature resistance, flame retardancy and ageing resistance
IP68 waterproofing, so it suits wet and exposed positions
Engraved-pattern strip design that installs straight onto acrylic board
Cuts labour, material and acrylic sheet cost against traditional neon
Quick installation, so crews need little training

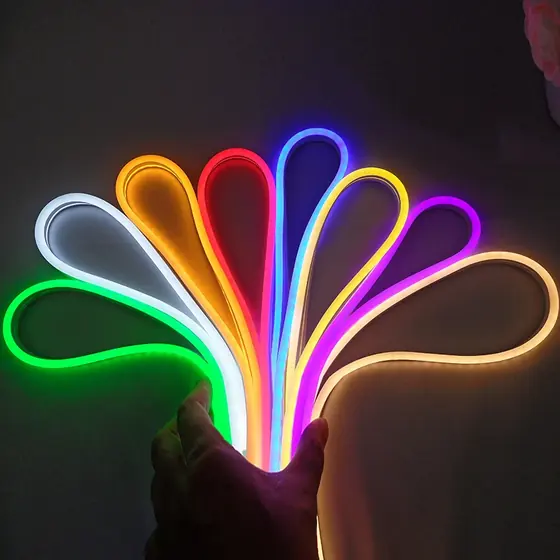

Silicone body bends to any shape for lettering and outlines
| Profile Size | 8 x 16 mm |
|---|---|
| Voltage | DC 12 V or 24 V |
| Ingress Protection | IP68 |
| Board | High quality FPC |

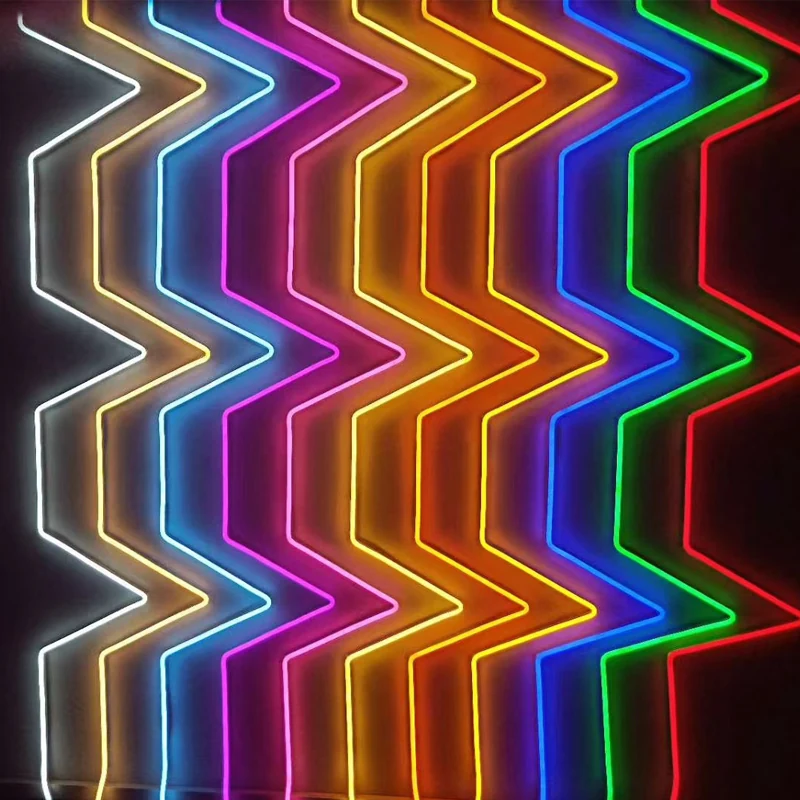

| Colour | Wide colour range, selectable per project |
| Shaping | Bendable, silicone body forms any shape |
Materials
- Silicone body
- High quality FPC
- LED chip
- Acrylic mounting board
Customisation
- Any shape, size, colour and material to your drawing
- Private label OEM and ODM with your brand on product and packaging
- Standard items in 7-9 days, custom work in 20-30 days after sample approval
- Sample orders welcome before a bulk order, and low MOQ on project work
How It Is Made
FPC board populated with LEDs
Silicone body extruded over the board
Strip cut, end capped and sealed
Pattern engraved and mounted to acrylic if ordered
Power-up and colour check
Quality Control
- Waterproof pressure test to IP68
- Flame retardancy and heat resistance check
- Colour consistency check batch to batch
Certification
- Certificates are issued per product model. CE and RoHS certificates are held for the UPL-S series LED string light — ask us for the certificate scope covering this item.
Comparison
How It Compares With The Alternatives
Compared With Glass neon
Neon flex survives transit, costs less to install and is repairable. Glass neon has an authenticity that some clients specifically want.
Compared With Rope light
Neon flex gives a continuous even line at IP68; rope light is cheaper per metre but reads as dotted at close range.
Use Guide
- Send artwork as vector so the acrylic can be engraved to match
- Keep the driver in a ventilated position away from the flex run
- Test the bend radius on an offcut before committing to tight lettering
Related
Other Products In This Range
PVC Tinsel Motif Decoration Material
PVC tinsel is the surface that turns a bare welded frame into a motif that reads as an object in daylight.
View product
PVC Mesh Motif Decoration Material
PVC mesh is the flatter alternative to tinsel for motif surfaces, supplied in 1x3 m, 1x5 m and 1x10 m panels.
View product
Coloured PVC Mesh Fabric Rolls
The same mesh construction supplied as full colour rolls for workshops that cut their own panels.
View product
Tree of Life Fibre Optic Light Sculpture
A tall fountain-form sculpture built from fibre optic strands falling from a central crown, so the light appears to pour downwards.
View productQuestions
LED Neon Flex Light Questions
What size is the profile?
8 x 16 mm, on DC 12 V or 24 V, on a high quality FPC board inside a silicone body.
Can you supply it cut and mounted?
Yes. The strip installs into an engraved acrylic board, which is what removes most of the site labour. Send vector artwork.
Will it fade or shift colour?
It is specified for brightness without degradation over a long service life and is ageing tested. Keep the driver ventilated.
Request A Quotation For LED Neon Flex Light
Tell us the size, the quantity and where it is going. Attach a photograph of the position if you have one.
