Zinc Shot Conditioned
0#Zn 99.99%, 0.4 mm to 3.5 mm, 45-60 HV
Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.
At A Glance

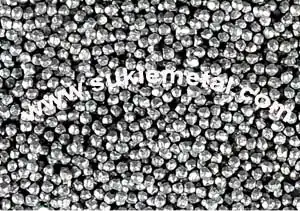

Zinc round shot has a bright appearance. The density of zinc shot is higher than aluminium and the hardness is softer than steel, so it deburrs products without wearing down the surface.
- Grades. 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball)
- Produced by. Conditioning into round shape
- Packing. 25 kg/bag, 40 bags/pallet
- Lead time. 3 days
- Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more
Product Overview
Zinc round shot has a bright appearance. The density of zinc shot is higher than aluminium and the hardness is softer than steel, so it deburrs products without wearing down the surface.
It is widely used for deburring and surface treatment of zinc and aluminium cast parts.
Key Benefits
- Density close to iron with low hardness, so it deburrs without wearing the metal surface
- Obvious whitening effect on the workpiece surface
- In electro galvanizing it lowers the electrode potential and polarization current and enhances corrosion resistance
Application Scenarios
Where it is used
- Zinc cast parts
- Aluminium cast parts
- Deburring and surface treatment
Who it is for
- Zinc and aluminium die casters removing burrs, flash and fusion marks
- Galvanizing lines using zinc media in advanced electro galvanizing
- Metal smelters using zinc shot as an additive
Problems it solves
- Harder media wears down the surface of soft castings while removing the burr
- Aluminium oxide media carries a higher flash point risk than zinc powder
- Deflashing by hand is slow and inconsistent across a batch
Technical Features And Specifications
- Place of Origin
- China
- Brand Name
- SUKIE
- Material
- Zinc 99.99%
- Usage
- Shot blasting, shot peening
- Abrasive Grain Sizes
- 0.4 mm to 3.5 mm
- Minimum Order Quantity
- 500 kg
- Packaging Details
- 25 kg/bag, 40 bags/pallet
- Delivery Time
- 3 days
- Payment Terms
- T/T
- Supply Ability
- 500,000 kg/month
| Product | Grade | Zn | Fe | Al | Cu | Cd | Density | Hardness | Test |
|---|---|---|---|---|---|---|---|---|---|
| Zinc shot | 0#Zn | 99.99% | 0.003% | 0.003% | 0.001% | 0.002% | 7.1 g/cm³ | 45-60 HV | Pass |
Chemical composition in %.
Materials
This product sits in the Zinc Shot and Cut Wire range. Grades held are 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball), across a published size range of 0.4 mm to 3.5 mm. The chemical composition above is the specification Sukie publishes for the grade.
If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.
Manufacturing Process
Zinc Shot is produced by conditioning into round shape, giving a conditioned, round grain.
Quality Control And Certifications
All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.
The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.
Customization Options
- Size band. The published range is 0.4 mm to 3.5 mm, other sizes can be customized
- Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
- Grade. 0#Zn 99.99% · 45-60 HV · 80-100 HV (shot ball)
- Packing. 25 kg/bag, 40 bags/pallet
Comparison With Other Products
| Product | Grain shape | Size available | Alloy |
|---|---|---|---|
| Zinc Shot | Conditioned, round | 0.4 mm to 3.5 mm | Zinc |
| Zinc Cut Wire | As cut, cylindrical | 0.4 mm to 3.5 mm | Zinc |
| Casting Zinc Shot Ball | Ball | 0.3 mm to 5.0 mm | Zinc |
| Cast Stainless Steel Shot | Round grain | 0.05 mm to 1.2 mm | Stainless steel |
| Stainless Steel Shot Conditioned | Conditioned, round | 0.2 mm to 2.5 mm | Stainless steel |
Use Guide
- Check the substrate first. Ferrous media on non-ferrous parts leaves iron that rusts. This is a non-ferrous safe range.
- Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
- Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
- Run a trial batch. Minimum order is 500 kg, which is low enough to prove the media on your own parts before volume.
- Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.
Questions About Zinc Shot
What sizes of zinc shot can you supply
0.4 mm to 3.5 mm, other sizes can be customized.
What is the minimum order and how is it packed
500 kg. Packing is 25 kg/bag, 40 bags/pallet.
How quickly can it ship
3 days. Supply ability is 500,000 kg/month.
What grain shape will I receive
Conditioned, round. It is produced by conditioning into round shape.
Can you confirm the chemistry before I order
Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.
What payment terms apply
T/T.
