Metal abrasive and shot blasting media producer in Yongkang, Zhejiang [email protected] +86 158 6926 6303
Sukie Metal Abrasive logo Sukie Metal AbrasiveShot blasting and peening media

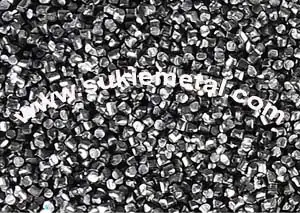

Carbon Steel Cut Wire Shot Conditioned produced by Sukie Metal Abrasive, conditioned, round grain

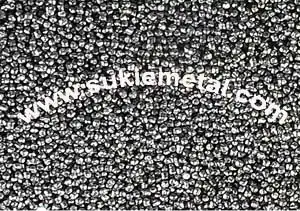

Carbon Steel Cut Wire Shot Conditioned grain detail Carbon Steel Cut Wire Shot Conditioned in bulk Carbon Steel Cut Wire Shot range
Carbon steel range

Carbon Steel Cut Wire Shot Conditioned

New steel wire and spring wire, 0.2 mm to 2.5 mm, rounded

Material
Carbon steel
Size available
0.2 mm to 2.5 mm
Grain shape
Conditioned, round grain
Minimum order
1,000 kg
Request A Quote Request A Sample Talk To An Engineer Email Us

Have a drawing or a photo of the part? Send it on WhatsApp or attach it to an email and we will recommend the alloy and grain size.

At A Glance

Conditioned carbon steel cut wire shot is made by cutting carbon steel wire, with the length equal to the diameter, giving uniform hardness and density.

  • Grades. New steel wire 30 HRC · Spring wire 45-55 HRC and 55-65 HRC
  • Produced by. Cutting carbon steel wire then conditioning
  • Packing. 25 kg/bag, 40 bags/pallet
  • Lead time. 3 days
  • Standards. AMS 2431/8A, MIL-S-13165C, DIN 8201 and three more
OverviewBenefitsApplicationsSpecificationsMaterialsManufacturingQuality ControlCustomizationComparisonUse GuideFAQRelated

Product Overview

Conditioned carbon steel cut wire shot is made by cutting carbon steel wire, with the length equal to the diameter, giving uniform hardness and density.

It is widely used for surface improvement, deburring, descaling, shot blasting and peening on non-ferrous metals and other steel parts. Compared with steel shot, conditioned cut wire shot has broader application, longer durability, no pore and no crack, higher density and a stronger jet.

It is applied in the aviation industry, automotive, foundry, semiconductor manufacturing and consumer goods manufacture. Processed by conditioning the shape turns to a round grain, mainly used in the automobile industry on gears, bearings and springs.

Key Benefits

  • Longer durability and higher density than cast steel shot, with a stronger jet
  • Uniform hardness and density because length equals diameter on every grain
  • Available as cut for aggressive cleaning and conditioned for peening

Application Scenarios

Where it is used

  • Aviation industry
  • Automotive gears, bearings and springs
  • Foundry
  • Semiconductor manufacturing
  • Consumer goods manufacture

Who it is for

  • Automotive plants peening gears, bearings and springs
  • Aviation, foundry and semiconductor manufacturing lines
  • Consumer goods manufacturers descaling and cleaning steel parts

Problems it solves

  • Cast steel shot contains pores and cracks and breaks up early
  • Media consumption per tonne of work drives the cost of the blast room
  • Round shot does not always reach into corners and recesses

Technical Features And Specifications

Place of Origin
China
Brand Name
SUKIE
Model Number
0.2 mm to 2.5 mm
Material
Carbon steel
Usage
Shot blasting, shot peening, surface treatment
Minimum Order Quantity
1,000 kg
Packaging Details
25 kg/bag, 40 bags/pallet
Delivery Time
3 days
Payment Terms
T/T
Supply Ability
500,000 kg/month
ProductMaterialCSiMnSPOthers (Fe)DensityHardnessTest
Carbon steel cut wireBrand new steel wire0.06-0.12%0.3% max0.25-0.5%0.05% max0.45% maxRest7.84 g/cm³30 HRCPass
Carbon steel cut wireSpring wire0.85% max0.35% max0.7% max0.03% max0.03% maxRest—45-55 HRC / 55-65 HRCPass

Chemical composition in %. Density is published against the new steel wire row.

Materials

This product sits in the Carbon Steel Cut Wire Shot range. Grades held are New steel wire 30 HRC · Spring wire 45-55 HRC and 55-65 HRC, across a published size range of 0.2 mm to 2.5 mm. The chemical composition above is the specification Sukie publishes for the grade.

If your process specification names a grade that is not listed, send it over. Other sizes can be customized and grade availability is confirmed at quotation.

Manufacturing Process

Carbon Steel Cut Wire Shot Conditioned is produced by cutting carbon steel wire then conditioning, giving a conditioned, round grain grain.

Production route Material Wire or feedstock to grade Form Cutting carbon steel wire then conditioning Screen Graded to the size band Test Chemistry, hardness, densi ty Pack 25 kg/bag, 40 bags/pallet

Quality Control And Certifications

All Sukie products are strictly executed to AMS 2431/8A, MIL-S-13165C, DIN 8201, VDFI 8001, SAE J441, DQML 001-2008 and produced with the most advanced and developed equipment.

The four advantages Sukie states for its shot are longer durability, uniform size, uniform hardness and less dust. Chemistry, hardness and density are the values published in the table above.

See Quality And Standards

Customization Options

  • Size band. The published range is 0.2 mm to 2.5 mm, other sizes can be customized
  • Grain shape. As-cut and conditioned forms are produced from the same wire stock across the cut wire ranges
  • Grade. New steel wire 30 HRC · Spring wire 45-55 HRC and 55-65 HRC
  • Packing. 25 kg/bag, 40 bags/pallet

Get A Custom Solution

Comparison With Other Products

ProductGrain shapeSize availableAlloy
Carbon Steel Cut Wire Shot ConditionedConditioned, round grain0.2 mm to 2.5 mmCarbon steel
Carbon Steel Cut Wire Shot As CutAs cut, cylindrical0.2 mm to 2.5 mmCarbon steel
Cast Stainless Steel ShotRound grain0.05 mm to 1.2 mmStainless steel
Stainless Steel Shot ConditionedConditioned, round0.2 mm to 2.5 mmStainless steel
Stainless Steel Cut Wire ShotAs cut, cylindrical0.2 mm to 2.5 mmStainless steel

Use Guide

  • Check the substrate first. This is a ferrous range, intended for steel parts and for peening steel components.
  • Match the grain size to the feature. Smaller grains give more impacts per kilogram and a finer finish. Larger grains carry more energy per impact.
  • Match the shape to the job. As-cut cuts harder and reaches corners. Conditioned is used for peening and for a matte finish.
  • Run a trial batch. Minimum order is 1,000 kg, which is low enough to prove the media on your own parts before volume.
  • Store dry. Keep bags on the pallet and off the floor until the media goes into the machine.

Shot Size Selection Guide

Questions About Carbon Steel Cut Wire Shot Conditioned

What sizes of carbon steel cut wire shot conditioned can you supply

0.2 mm to 2.5 mm, other sizes can be customized.

What is the minimum order and how is it packed

1,000 kg. Packing is 25 kg/bag, 40 bags/pallet.

How quickly can it ship

3 days. Supply ability is 500,000 kg/month.

What grain shape will I receive

Conditioned, round grain. It is produced by cutting carbon steel wire then conditioning.

Can you confirm the chemistry before I order

Yes. The full chemical composition is published in the specification table on this page. Ask on WhatsApp or by email for the mill data against your order.

What payment terms apply

T/T.

Get A Price For Carbon Steel Cut Wire Shot Conditioned

Send the grain size, the substrate and your monthly tonnage. We will confirm the grade and come back with a quote.

Minimum order from 500 kg. Packed 25 kg per bag, 40 bags per pallet. Quotes in USD, terms T/T.
